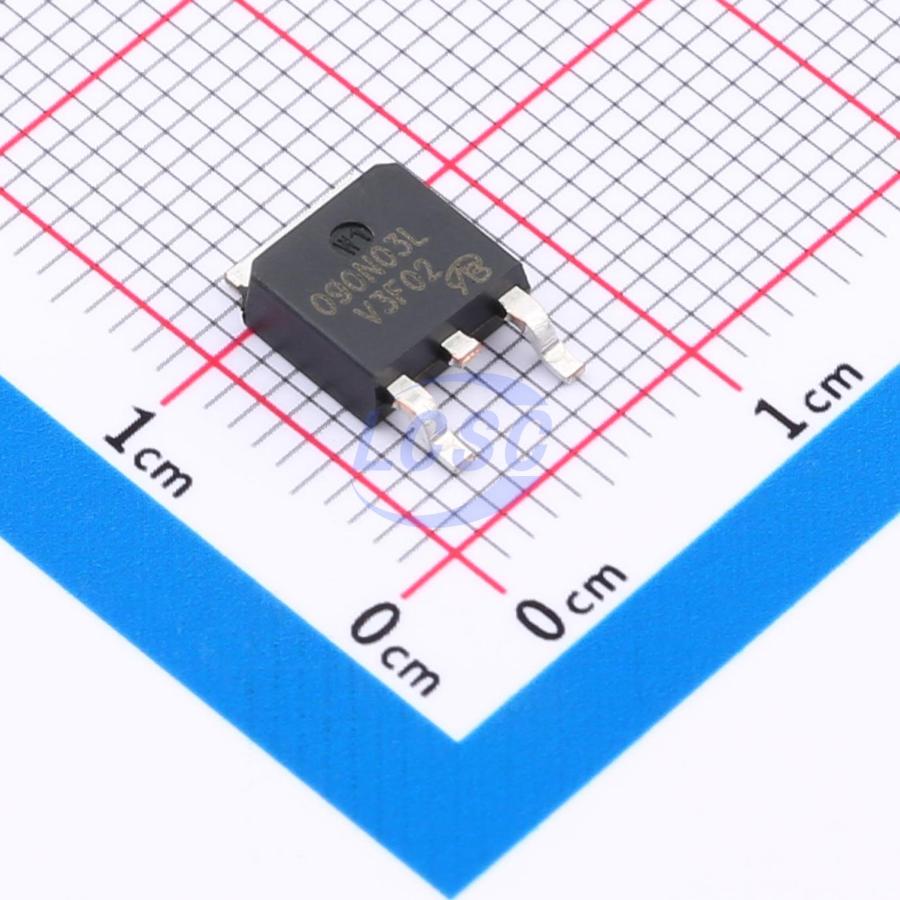

IPD090N03LG-VB
30V 100A 235W 3mΩ@4.5V 1 N-channel N-Channel TO-252 Single FETs, MOSFETs
TO-252RoHSActive
MOSFET N-CH 30V 100A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IPD090N03LG-VB
- Store part #
- C19632053
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C19632053
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.15 | ₹92.15 |
| 10+ | ₹76.93 | ₹769.30 |
| 30+ | ₹69.33 | ₹2,079.90 |
| 100+ | ₹61.93 | ₹6,193.00 |
| 500+ | ₹43.25 | ₹21,625.00 |
| 1,000+ | ₹40.85 | ₹40,850.00 |
1 × ₹92.15
₹92.15
excl. GST
₹108.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD090N03LG-VB
₹92.15 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 1.525nF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 5.201nF
- Pd - Power Dissipation
- 235W
- RDS(on)
- 3mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 103nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.38 g
Overview
Applications
- OR gate applications
- Servers
- DC/DC
Key features
- TrenchFET Power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
