InfineonDatasheet (PDF)

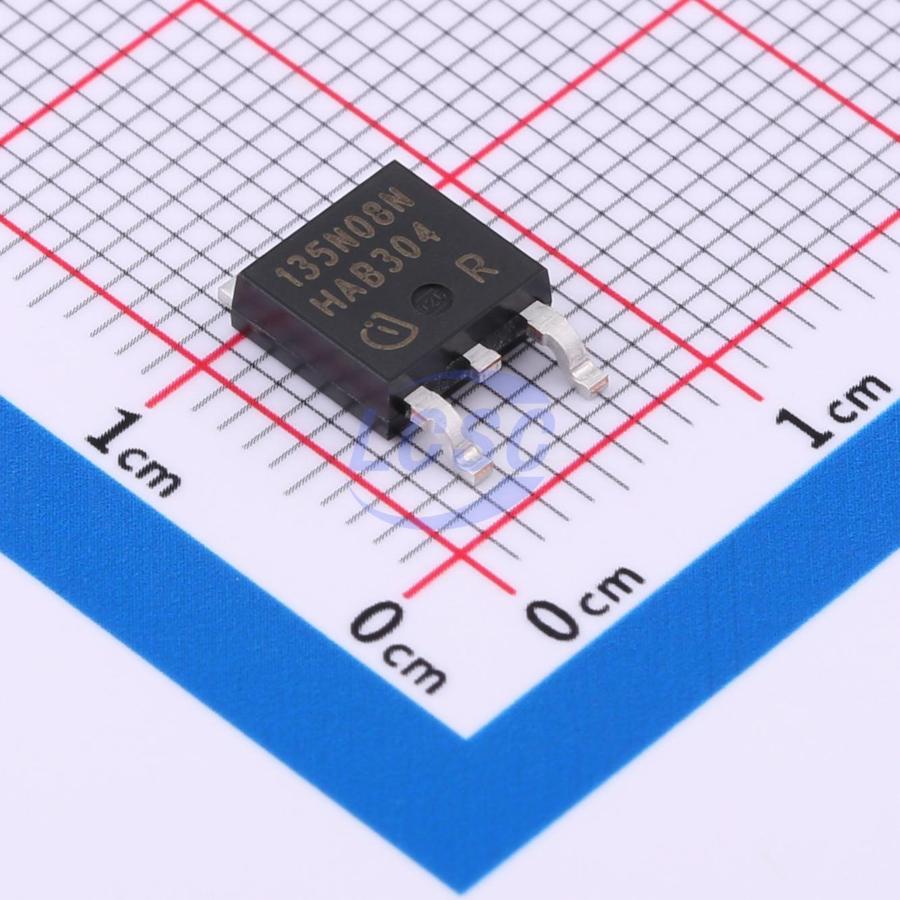

IPD135N08N3GATMA1
79W 80V 45A 13.5mΩ@10V 1 N-channel N-Channel TO-252-3 Single FETs, MOSFETs RoHS
TO-252-3ROHS3 CompliantActive
MOSFET N-CH 80V 45A TO-252-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPD135N08N3GATMA1
- Store part #
- C3279014
- Package / case
- TO-252-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C3279014
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹159.82 | ₹159.82 |
| 10+ | ₹132.27 | ₹1,322.70 |
| 30+ | ₹116.89 | ₹3,506.70 |
| 100+ | ₹99.75 | ₹9,975.00 |
| 500+ | ₹92.16 | ₹46,080.00 |
| 1,000+ | ₹88.69 | ₹88,690.00 |
1 × ₹159.82
₹159.82
excl. GST
₹188.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD135N08N3GATMA1
₹159.82 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 469pF
- Ciss-Input Capacitance
- 1.73nF
- Pd - Power Dissipation
- 79W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 45A
- Reverse Transfer Capacitance (Crss)
- 469pF
- RDS(on)
- 13.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.595 g
Overview
This HEXFET power MOSFET is designed for automotive applications, utilizing the latest processing technology to achieve extremely low on-resistance per unit silicon area. Additional features of this design include a 175°C junction operating temperature, fast switching speed, and higher repetitive avalanche ratings. Combined, these characteristics make this design a highly efficient and reliable device suitable for automotive and a wide range of other applications.
Key features
- High-frequency switching
- Technology optimized for DC/DC converters
- Excellent gate charge × RDS(on) product (figure of merit FOM)
- N-channel, normally-on
- 100% avalanche tested
- Lead-free plating; RoHS compliant
- JEDEC qualified for target applications
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPD50N08S4-13#C536779Infineon · TO-252-3 | Infineon | TO-252-3 | 30 | ₹220.74 · 30 in stock | View |
 | HYG180N10LS1D#C2842092HUAYI · TO-252-2L | HUAYI | TO-252-2L | 2,345 | ₹39.32 · 2,345 in stock | View |
| IPD60R180P7S#C672377Infineon · TO-252-3 | Infineon | TO-252-3 | 3,638 | ₹112.32 · 3,638 in stock | View | |
| HSU0096#C42376811HUASHUO · TO-252-2L | HUASHUO | TO-252-2L | 980 | ₹31.55 · 980 in stock | View | |
 | GT105N10K#C5258999GOFORD · TO-252 | GOFORD | TO-252 | 10 | ₹66.72 · 10 in stock | View |
