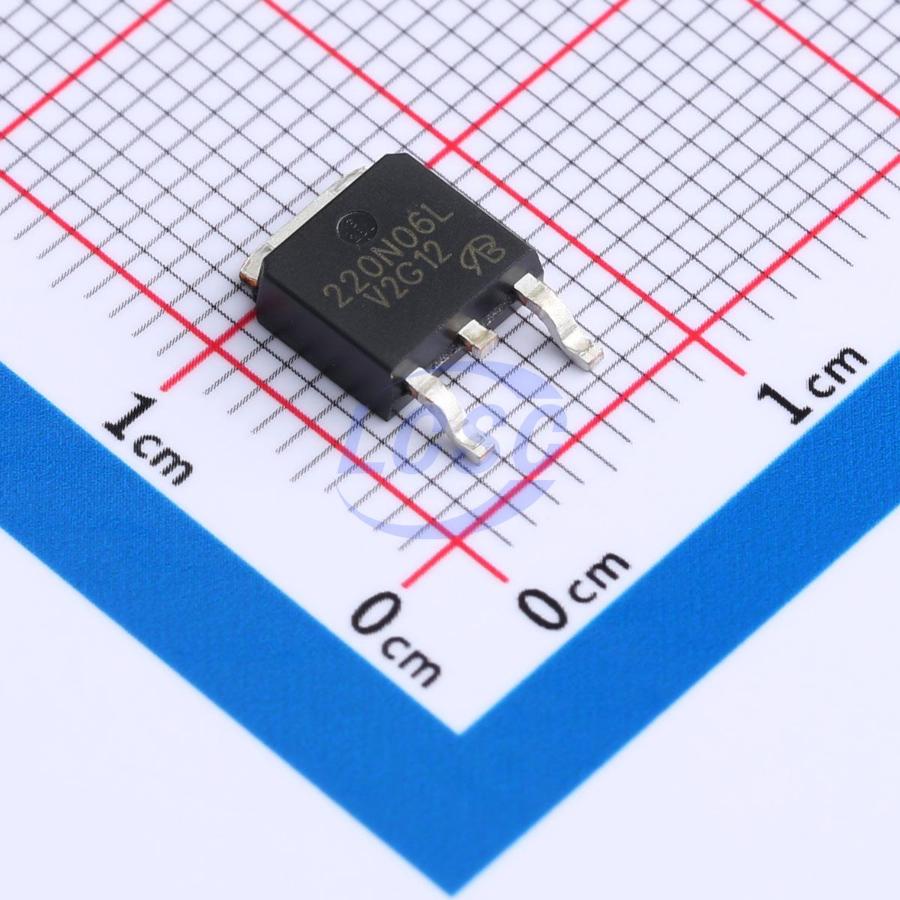

IPD220N06L3G-VB
N-Channel 60V 45A 100W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 60V 45A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IPD220N06L3G-VB
- Store part #
- C5240545
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C5240545
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.11 | ₹75.11 |
| 10+ | ₹60.53 | ₹605.30 |
| 30+ | ₹54.22 | ₹1,626.60 |
| 100+ | ₹46.60 | ₹4,660.00 |
| 500+ | ₹38.33 | ₹19,165.00 |
| 1,000+ | ₹36.36 | ₹36,360.00 |
1 × ₹75.11
₹75.11
excl. GST
₹88.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD220N06L3G-VB
₹75.11 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 140pF
- Current - Continuous Drain(Id)
- 45A
- Ciss-Input Capacitance
- 1.5nF
- Pd - Power Dissipation
- 100W
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 25mΩ@10V;30mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.42 g
Overview
CEDM7001 is an N-channel enhancement-mode silicon MOSFET fabricated using N-channel DMOS technology, designed for high-speed pulse amplifier and driver applications. It features low on-resistance rDS(ON) and low threshold voltage.
Applications
- Load/power switch
- DC-DC converter
- Battery-powered portable devices
Key features
- Trench Power MOSFET
- Junction temperature up to 175°C
- RoHS compliant
- Drain connected to heatsink
- N-Channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZXMN6A09KTC-VB#C18212464VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 17 | ₹69.07 · 17 in stock | View |
 | 4N06L23-VB#C18212535VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 31 | ₹69.07 · 31 in stock | View |
 | FDD5612-VB#C19188236VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹69.07 · 10 in stock | View |
 | 220N06L-VB#C19190121VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 28 | ₹68.28 · 28 in stock | View |
 | FQD25N06L-VB#C19632064VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹68.28 · 10 in stock | View |
