HXY MOSFETDatasheet (PDF)

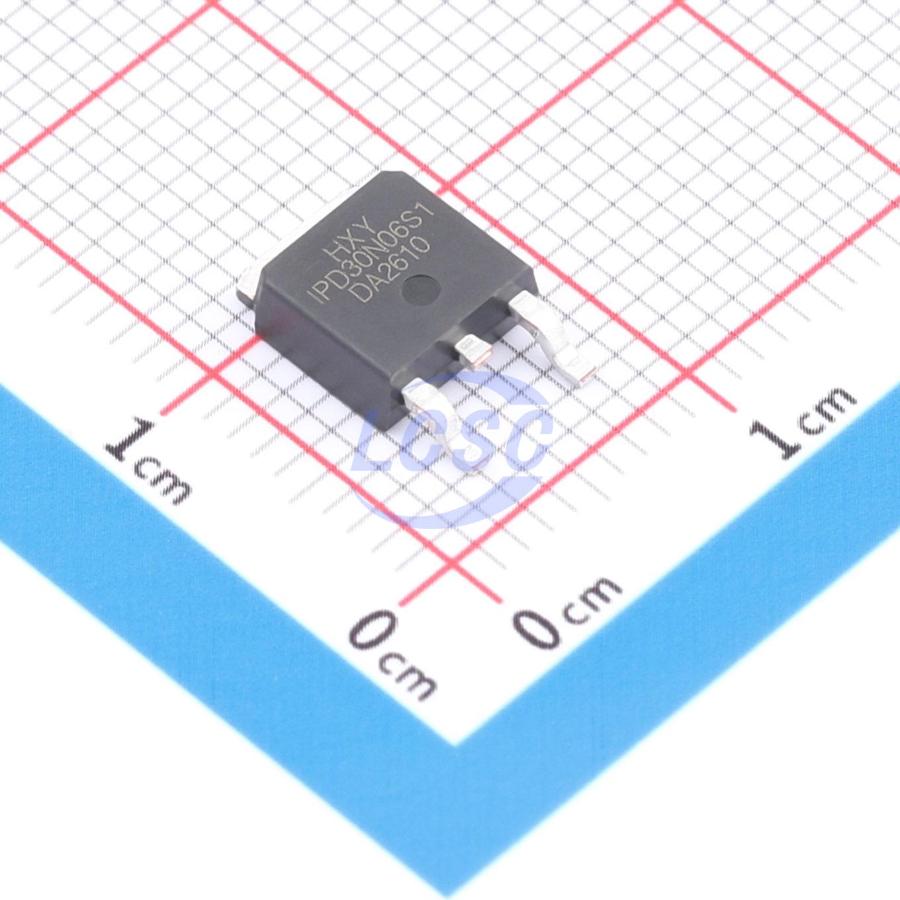

IPD30N06S4L23ATMA1-HXY
60V 50A 87.7W 13mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IPD30N06S4L23ATMA1-HXY
- Store part #
- C54582524
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C54582524
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹99.52 | ₹99.52 |
| 10+ | ₹81.68 | ₹816.80 |
| 30+ | ₹72.66 | ₹2,179.80 |
| 100+ | ₹63.85 | ₹6,385.00 |
| 500+ | ₹52.46 | ₹26,230.00 |
| 1,000+ | ₹49.65 | ₹49,650.00 |
1 × ₹99.52
₹99.52
excl. GST
₹117.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD30N06S4L23ATMA1-HXY
₹99.52 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 50A
- Output Capacitance(Coss)
- 185pF
- Ciss-Input Capacitance
- 2.498nF
- Pd - Power Dissipation
- 87.7W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 13mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 36nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.408 g
Overview
IPD30N06S4L23ATMA1 employs advanced trench technology to deliver excellent on-state resistance (RDS(ON)), low gate charge, and operation at gate voltages as low as 4.5V. This device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-source voltage (VDS) = 60V, drain current (ID) = 50A
- On-resistance (RDS(ON)) < 17mΩ at gate-source voltage (VGS) = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMNH6021SK3Q-HXY#C22366964HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 11 | ₹54.89 · 11 in stock | View |
 | IRFU4105ZPBF-HXY#C22366968HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 50 | ₹36.95 · 50 in stock | View |
 | AOD442G-HXY#C22366969HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 60 | ₹31.73 · 60 in stock | View |
 | IPD30N06S2L-23-HXY#C22366971HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 225 | ₹45.93 · 225 in stock | View |
 | HIPD220N06L3GBTMA1#C42401336HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 10 | ₹57.22 · 10 in stock | View |
