InfineonDatasheet (PDF)

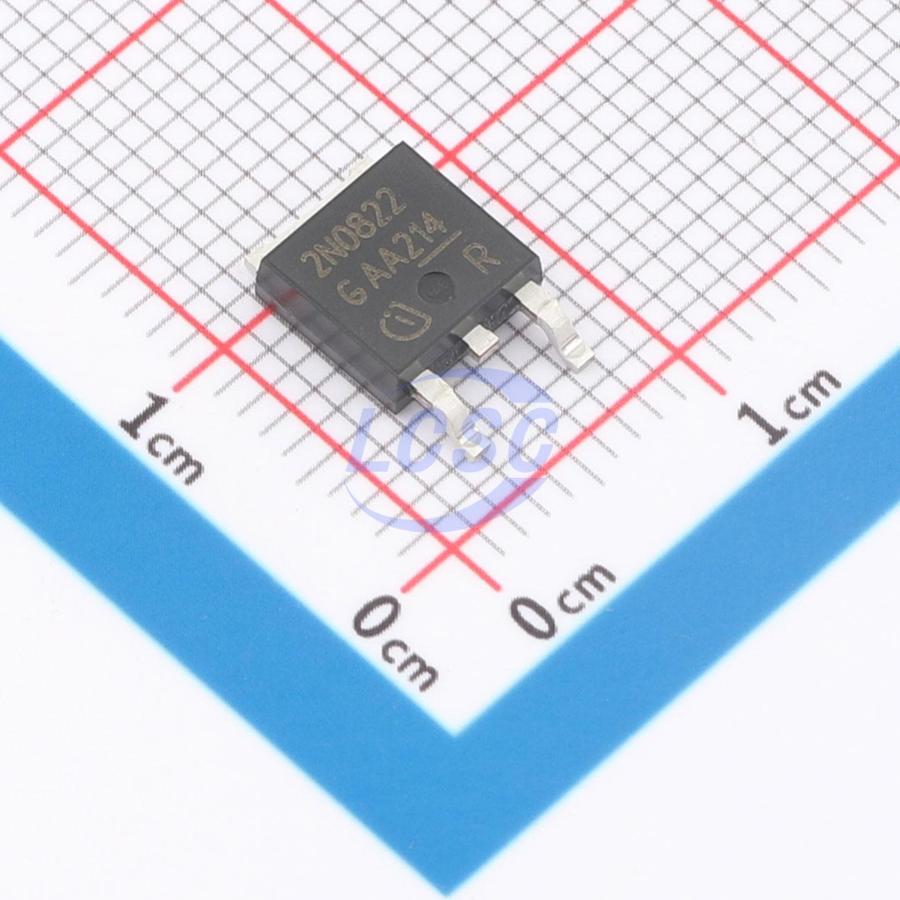

IPD30N08S2-22
136W 75V 30A 21.5mΩ@10V 1 N-channel N-Channel TO-252-3 Single FETs, MOSFETs RoHS
TO-252-3ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPD30N08S2-22
- Store part #
- C536755
- Package / case
- TO-252-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C536755
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹431.39 | ₹431.39 |
| 10+ | ₹423.86 | ₹4,238.60 |
| 30+ | ₹418.91 | ₹12,567.30 |
| 100+ | ₹413.77 | ₹41,377.00 |
1 × ₹431.39
₹431.39
excl. GST
₹509.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD30N08S2-22
₹431.39 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 390pF
- Ciss-Input Capacitance
- 1.4nF
- Pd - Power Dissipation
- 136W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 75V
- Current - Continuous Drain(Id)
- 30A
- Reverse Transfer Capacitance (Crss)
- 180pF
- RDS(on)
- 21.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 57nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.596 g
Overview
Key features
- N-Channel - Enhancement Mode
- Automotive AEC-Q101 Qualified
- MSL 1, 260°C Peak Reflow Temperature
- Operating Temperature up to 175°C
- RoHS Compliant Package (Lead-Free)
- Ultra-Low On-Resistance Rds(on)
- 100% Avalanche Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SUD40N08-16-E3#C5346014VISHAY · TO-252 | VISHAY | TO-252 | 179 | ₹304.41 · 179 in stock | View |
 | IRFR3710ZTRPBF#C52839Infineon · TO-252 | Infineon | TO-252 | 978 | ₹114.92 · 978 in stock | View |
 | AUIRFR3710ZTRL#C533335Infineon · DPAK | Infineon | DPAK | 15 | ₹506.62 · 15 in stock | View |
 | IPD110N12N3 G#C536732Infineon · TO-252-3 | Infineon | TO-252-3 | 1,251 | ₹247.55 · 1,251 in stock | View |
 | IPD30N08S2L21ATMA1#C3279073Infineon · TO-252 | Infineon | TO-252 | 63 | ₹244.25 · 63 in stock | View |
