HXY MOSFETDatasheet (PDF)

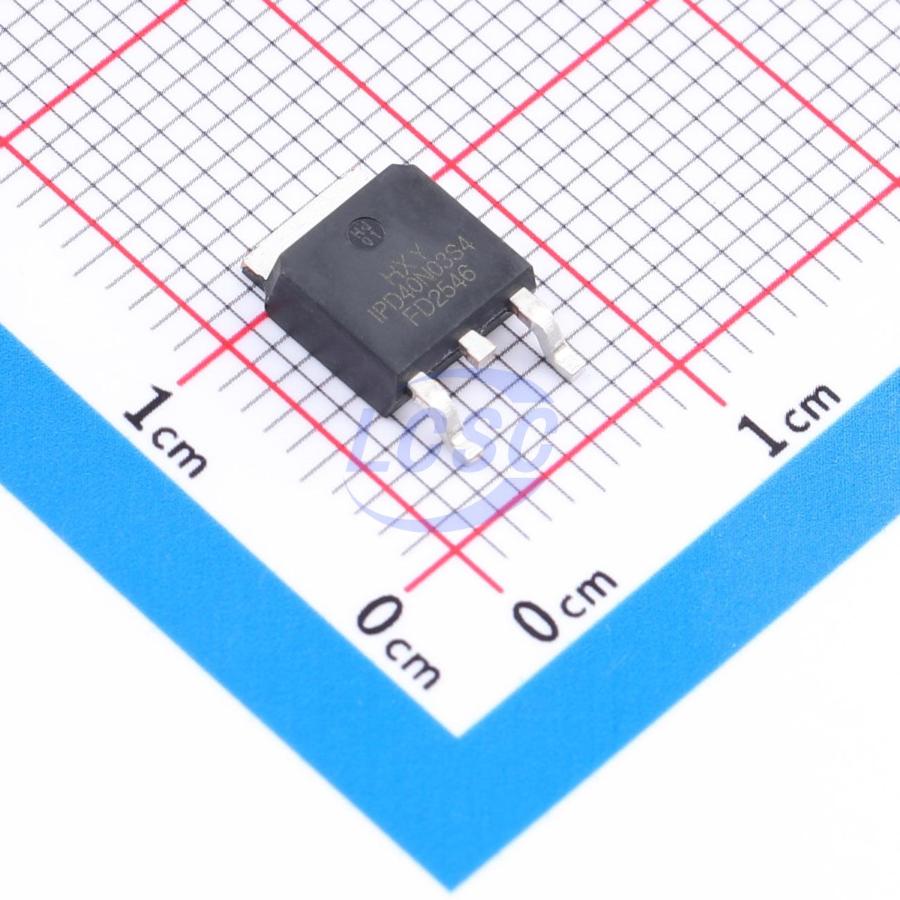

IPD40N03S4L08ATMA1-HXY
41W 30V 60A 7mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IPD40N03S4L08ATMA1-HXY
- Store part #
- C53263101
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
99 in stock
#C53263101
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹182.35 | ₹182.35 |
| 10+ | ₹153.56 | ₹1,535.60 |
| 30+ | ₹137.67 | ₹4,130.10 |
| 100+ | ₹119.85 | ₹11,985.00 |
| 500+ | ₹111.90 | ₹55,950.00 |
| 1,000+ | ₹108.25 | ₹1,08,250.00 |
1 × ₹182.35
₹182.35
excl. GST
₹215.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD40N03S4L08ATMA1-HXY
₹182.35 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 163pF
- Ciss-Input Capacitance
- 1.317nF
- Pd - Power Dissipation
- 41W
- Operating Temperature
- -55℃~+175℃
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 60A
- Reverse Transfer Capacitance (Crss)
- 131pF
- RDS(on)
- 7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12.6nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.391 g
