HXY MOSFETDatasheet (PDF)

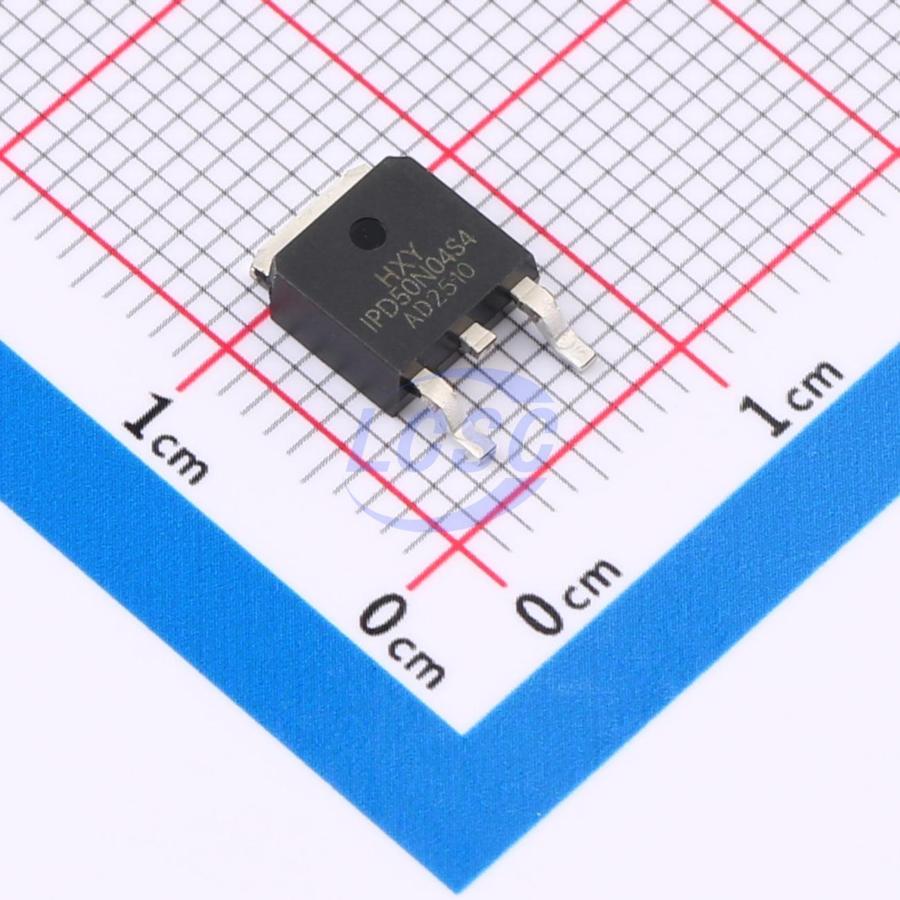

IPD50N04S4-08-HXY
N-Channel 40V 60A Surface Mount TO-252-2L
TO-252-2LROHS CompliantActive
MOSFET N-CH 40V 60A TO-252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IPD50N04S4-08-HXY
- Store part #
- C48972172
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
63 in stock
#C48972172
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.87 | ₹70.87 |
| 10+ | ₹56.70 | ₹567.00 |
| 30+ | ₹50.70 | ₹1,521.00 |
| 100+ | ₹43.17 | ₹4,317.00 |
| 500+ | ₹39.74 | ₹19,870.00 |
| 1,000+ | ₹37.81 | ₹37,810.00 |
1 × ₹70.87
₹70.87
excl. GST
₹83.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD50N04S4-08-HXY
₹70.87 for 1 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 148pF
- Current - Continuous Drain(Id)
- 60A
- Ciss-Input Capacitance
- 1.639nF
- Pd - Power Dissipation
- 34.6W
- Reverse Transfer Capacitance (Crss)
- 112pF
- RDS(on)
- 7.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.379 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDD8647L-HXY#C22366947HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 24 | ₹62.67 · 24 in stock | View |
 | FDD6635-HXY#C22366948HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 2 | ₹79.75 · 2 in stock | View |
 | FDD8445-HXY#C22367192HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 10 | ₹54.56 · 10 in stock | View |
 | FDD8447L-HXY#C22367193HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 1,915 | ₹32.77 · 1,915 in stock | View |
 | AOD4184A-HXY#C22367195HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 8,750 | ₹27.65 · 8,750 in stock | View |
