VBsemi ElecDatasheet (PDF)

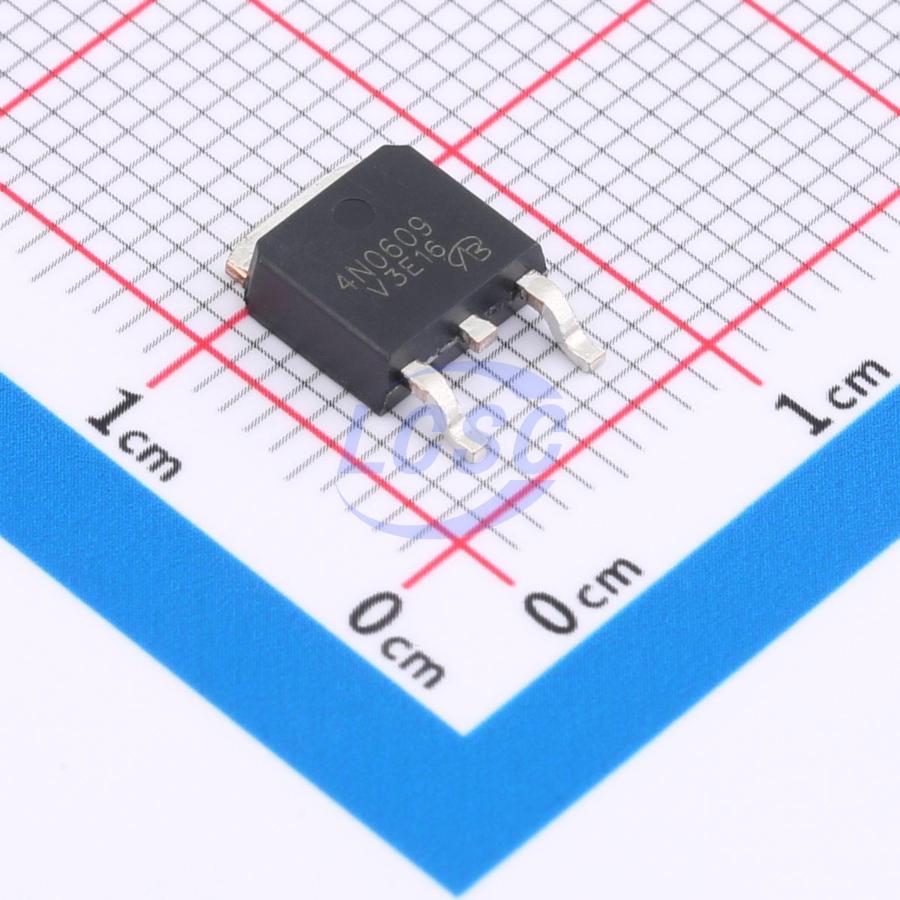

IPD50N06S4-09-VB
N-Channel 60V 58A 136W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 60V 58A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IPD50N06S4-09-VB
- Store part #
- C7428996
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
37 in stock
#C7428996
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.04 | ₹89.04 |
| 10+ | ₹72.28 | ₹722.80 |
| 30+ | ₹64.01 | ₹1,920.30 |
| 100+ | ₹55.74 | ₹5,574.00 |
| 500+ | ₹50.72 | ₹25,360.00 |
| 1,000+ | ₹48.33 | ₹48,330.00 |
1 × ₹89.04
₹89.04
excl. GST
₹105.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD50N06S4-09-VB
₹89.04 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 58A
- Ciss-Input Capacitance
- 2.65nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 225pF
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.388 g
Overview
Applications
- Synchronous Rectification
- Power Supply
Key features
- 175 °C Junction Temperature TrenchFET Power MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDD5353-VB#C18212542VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 30 | ₹86.92 · 30 in stock | View |
 | IRFR2905ZTRPBF-VB#C18212554VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 12 | ₹106.49 · 12 in stock | View |
 | SSF6014D-VB#C18212606VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 35 | ₹105.83 · 35 in stock | View |
 | AP9974GH-HF-VB#C18794925VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 44 | ₹94.05 · 44 in stock | View |
 | STD60NF55LT4-VB#C19188094VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 29 | ₹86.92 · 29 in stock | View |
