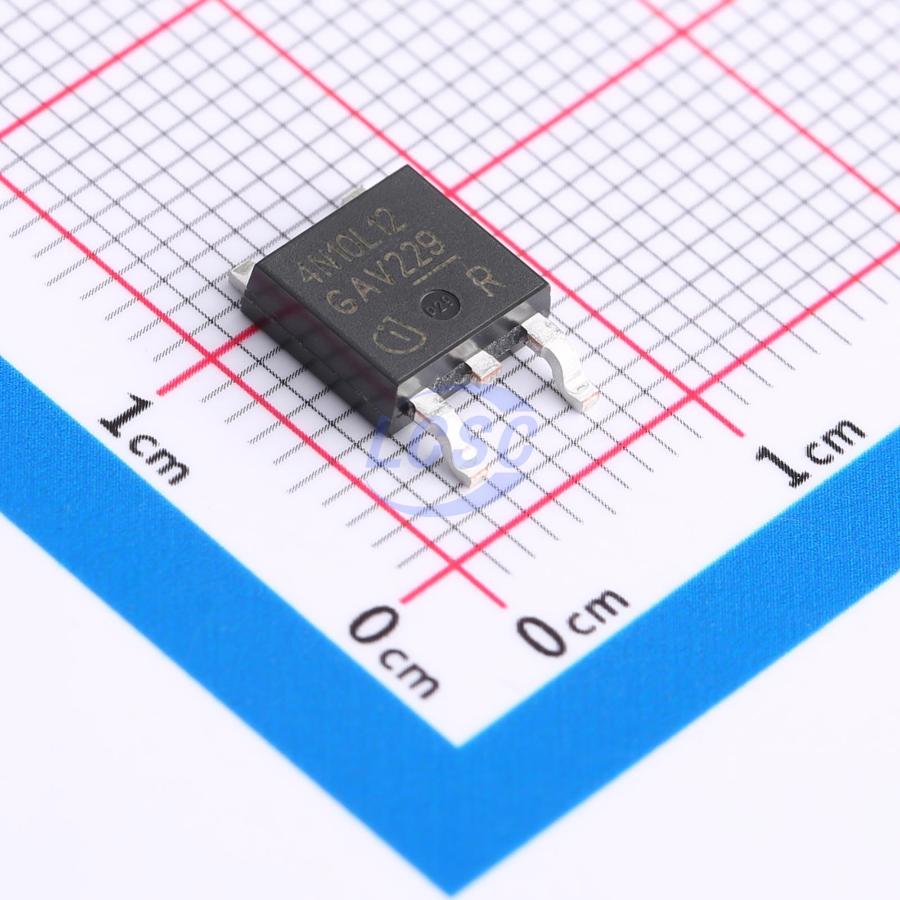

IPD60N10S4L12ATMA1
94W 100V 60A 12mΩ@10V 1 N-channel N-Channel TO-252-3-313 Single FETs, MOSFETs RoHS
TO-252-3-313ROHS3 CompliantActive
MOSFET N-CH 100V 60A TO-252-3-313
- Manufacturer
- Infineon
- Manufacturer part #
- IPD60N10S4L12ATMA1
- Store part #
- C3279097
- Package / case
- TO-252-3-313
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
69 in stock
#C3279097
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹101.92 | ₹101.92 |
| 10+ | ₹83.23 | ₹832.30 |
| 30+ | ₹73.66 | ₹2,209.80 |
| 100+ | ₹61.93 | ₹6,193.00 |
| 500+ | ₹56.28 | ₹28,140.00 |
| 1,000+ | ₹53.46 | ₹53,460.00 |
1 × ₹101.92
₹101.92
excl. GST
₹120.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD60N10S4L12ATMA1
₹101.92 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.07nF
- Ciss-Input Capacitance
- 3.17nF
- Pd - Power Dissipation
- 94W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 60A
- Reverse Transfer Capacitance (Crss)
- 155pF
- RDS(on)
- 12mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 49nC@10V
- Vgs
- ±16V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.6 g
Overview
Key features
- N-Channel - Enhancement Mode
- AEC Qualified
- MSL1 Rated at Peak Reflow Temperature of 260°C
- Operating Temperature up to 175°C
- Green Product (RoHS Compliant)
- 100% Avalanche Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP010N13GTH#C22466801Siliup · TO-252 | Siliup | TO-252 | 2,330 | ₹32.31 · 2,330 in stock | View |
| HSU0096#C42376811HUASHUO · TO-252-2L | HUASHUO | TO-252-2L | 980 | ₹31.55 · 980 in stock | View | |
 | AGM12T08D#C41349461AGMSEMI · TO-252 | AGMSEMI | TO-252 | 44 | ₹74.97 · 44 in stock | View |
 | MDDG10R08D#C45991084MDD(Microdiode Semiconductor) · TO-252 | MDD(Microdiode Semiconductor) | TO-252 | 1,680 | ₹32.06 · 1,680 in stock | View |
 | XRS80N10#C42457080XNRUSEMI · TO252-3L | XNRUSEMI | TO252-3L | 435 | ₹49.94 · 435 in stock | View |
