InfineonDatasheet (PDF)

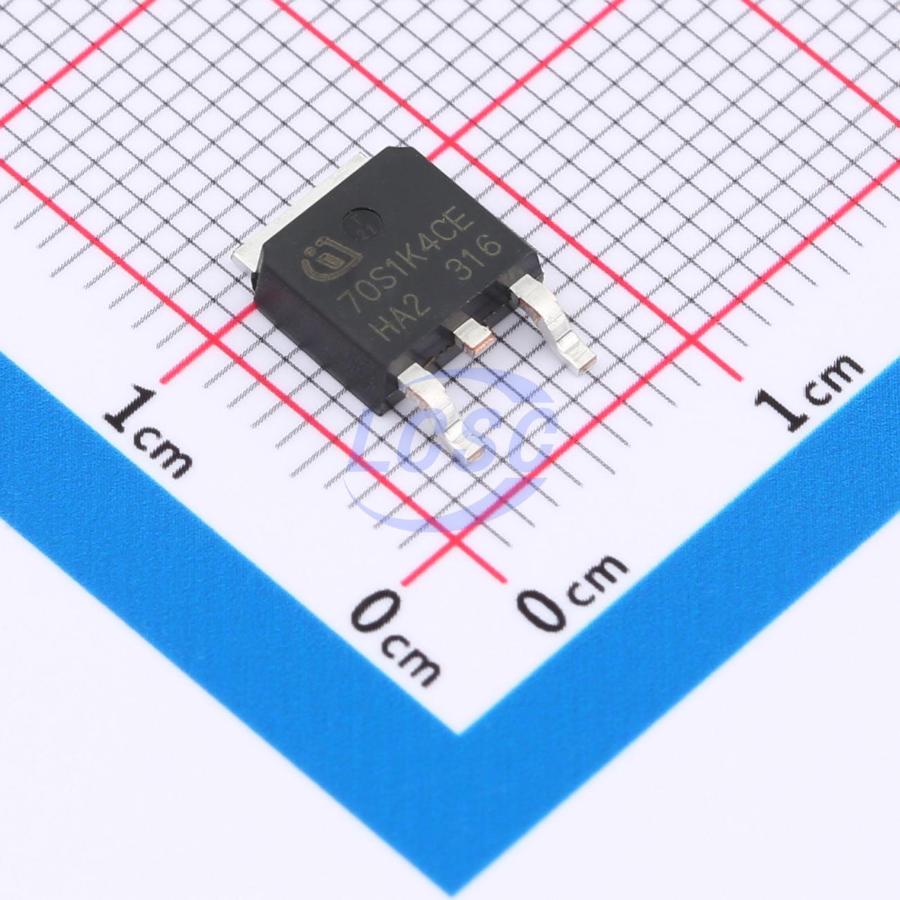

IPD70R1K4CEAUMA1
N-Channel 700V 5.4A 53W Surface Mount TO-252-3
TO-252-3ROHS3 CompliantActive
MOSFET N-CH 700V 5.4A TO-252-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPD70R1K4CEAUMA1
- Store part #
- C5772138
- Package / case
- TO-252-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C5772138
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.96 | ₹57.96 |
| 10+ | ₹56.74 | ₹567.40 |
| 30+ | ₹55.72 | ₹1,671.60 |
| 100+ | ₹54.92 | ₹5,492.00 |
1 × ₹57.96
₹57.96
excl. GST
₹68.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD70R1K4CEAUMA1
₹57.96 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Drain to Source Voltage
- 700V
- Output Capacitance(Coss)
- 18pF
- Current - Continuous Drain(Id)
- 5.4A
- Ciss-Input Capacitance
- 225pF
- Pd - Power Dissipation
- 53W
- RDS(on)
- 1.4Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 10.5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.365 g
Overview
CoolMOS is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle. CoolMOS CE is a price-performance optimized platform enabling to target cost sensitive applications in Consumer and Lighting markets by still meeting highest efficiency standards. The new series provides all benefits of a fast switching Superjunction MOSFET while not sacrificing ease of use and offering the best cost down performance ratio available on the market.
Applications
- Adapter
- LCD & PDP TV
- Indoor lighting
Key features
- Extremely low losses due to very low FOM Rdson*Qg and Eoss
- Very high commutation ruggedness
- Easy to use/drive
- Pb-free plating, Halogen free mold compound
- Qualified for standard grade applications
