InfineonDatasheet (PDF)

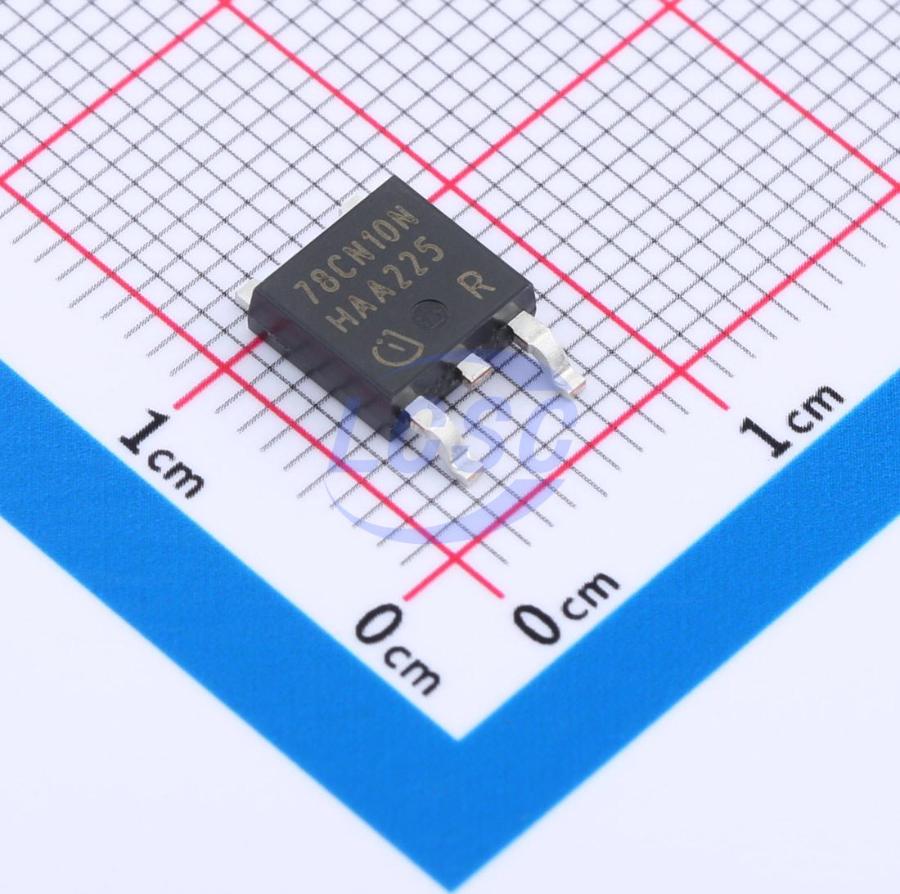

IPD78CN10NG
31W 100V 13A 78mΩ@10V 1 N-channel N-Channel TO-252-3 Single FETs, MOSFETs RoHS
TO-252-3ROHS3 CompliantActive
MOSFET N-CH 100V 13A TO-252-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPD78CN10NG
- Store part #
- C3282858
- Package / case
- TO-252-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
119 in stock
#C3282858
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.52 | ₹86.52 |
| 10+ | ₹69.39 | ₹693.90 |
| 30+ | ₹60.73 | ₹1,821.90 |
| 100+ | ₹52.05 | ₹5,205.00 |
| 500+ | ₹46.85 | ₹23,425.00 |
| 1,000+ | ₹44.24 | ₹44,240.00 |
1 × ₹86.52
₹86.52
excl. GST
₹102.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD78CN10NG
₹86.52 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 101pF
- Ciss-Input Capacitance
- 716pF
- Pd - Power Dissipation
- 31W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 13A
- Reverse Transfer Capacitance (Crss)
- 12pF
- RDS(on)
- 78mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.38 g
Overview
Key features
- N-channel, normally-on
- Excellent gate charge × RDS(on) product (figure of merit)
- Ultra-low on-resistance RDS(on)
- Operating temperature up to 175 °C
- Lead-free pin plating; RoHS compliant
- JEDEC qualified for target applications
- Ideal for high-frequency switching and synchronous rectification
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP015N50GHTH#C42372363Siliup · TO-252 | Siliup | TO-252 | 2,270 | ₹24.87 · 2,270 in stock | View |
 | NTD6416ANT4G#C179616onsemi · DPAK | onsemi | DPAK | 1 | ₹191.42 · 1 in stock | View |
| IRFR3910TR-MNS#C54839585Minos · TO-252 | Minos | TO-252 | 2,500 | ₹18.14 · 2,500 in stock | View | |
| DMT15H053SK3-13#C19949986DIODES · TO-252(DPAK) | DIODES | TO-252(DPAK) | 100 | ₹384.97 · 100 in stock | View | |
 | FDD770N15A#C455152onsemi · TO-252(DPAK) | onsemi | TO-252(DPAK) | 6 | ₹204.19 · 6 in stock | View |
