InfineonDatasheet (PDF)

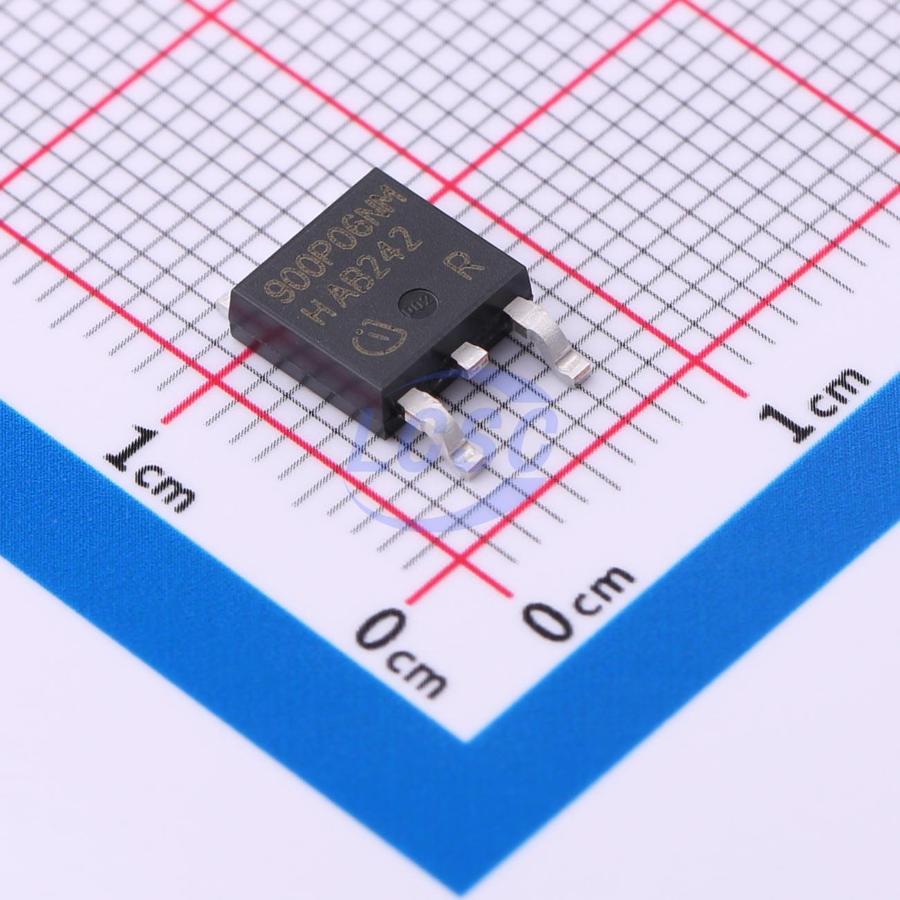

IPD900P06NM
P-Channel 60V 12.7A 63W Surface Mount TO-252-3
TO-252-3ROHS3 CompliantActive
MOSFET P-CH 60V 12.7A TO-252-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPD900P06NM
- Store part #
- C536895
- Package / case
- TO-252-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
64 in stock
#C536895
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.76 | ₹107.76 |
| 10+ | ₹86.21 | ₹862.10 |
| 30+ | ₹75.54 | ₹2,266.20 |
| 100+ | ₹64.66 | ₹6,466.00 |
| 500+ | ₹58.34 | ₹29,170.00 |
| 1,000+ | ₹55.08 | ₹55,080.00 |
1 × ₹107.76
₹107.76
excl. GST
₹127.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD900P06NM
₹107.76 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 160pF
- Ciss-Input Capacitance
- 1.1nF
- Pd - Power Dissipation
- 63W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 12.7A
- Reverse Transfer Capacitance (Crss)
- 39pF
- RDS(on)
- 90mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 27nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.41 g
Overview
Key features
- P-Channel
- Very low on-resistance RDS(on)
- 100% avalanche tested
- Normal Level
- Enhancement mode
- Pb-free lead plating; RoHS compliant
- Halogen-free according to IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LWS6080A4#C20630401Lewa Micro · TO-252 | Lewa Micro | TO-252 | 2,485 | ₹28.55 · 2,485 in stock | View |
 | SL0G15BP#C55318445Slkor · TO-252 | Slkor | TO-252 | 2,500 | ₹19.95 · 2,500 in stock | View |
 | IRFR9024N-JSM#C2874613JSMSEMI · TO-252 | JSMSEMI | TO-252 | 7,445 | ₹25.57 · 7,445 in stock | View |
 | TPM6013PHK3#C5246427TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 212 | ₹31.51 · 212 in stock | View |
 | STD10PF06(TP)#C5246431TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 1,695 | ₹52.80 · 1,695 in stock | View |
