InfineonDatasheet (PDF)

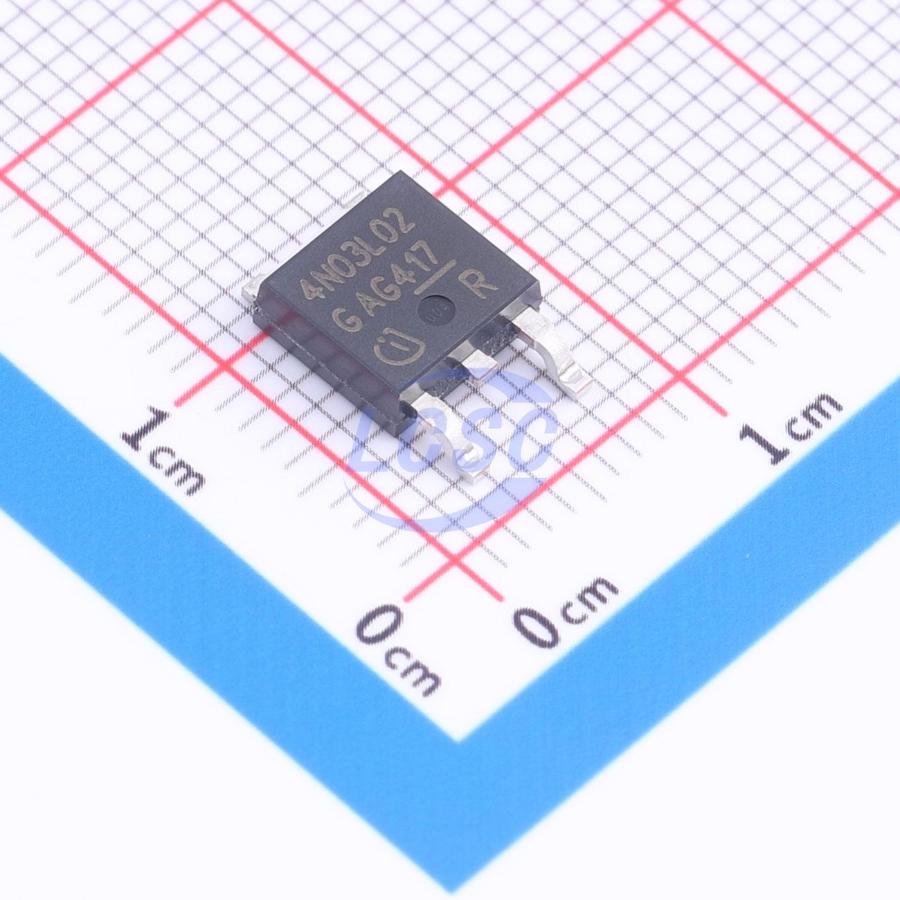

IPD90N03S4L-02
136W 30V 90A 2.2mΩ@10V 1 N-channel N-Channel TO-252-3 Single FETs, MOSFETs RoHS
TO-252-3ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPD90N03S4L-02
- Store part #
- C536896
- Package / case
- TO-252-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
113 in stock
#C536896
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹201.81 | ₹201.81 |
| 10+ | ₹166.10 | ₹1,661.00 |
| 30+ | ₹146.30 | ₹4,389.00 |
| 100+ | ₹124.10 | ₹12,410.00 |
| 500+ | ₹114.08 | ₹57,040.00 |
| 1,000+ | ₹109.73 | ₹1,09,730.00 |
1 × ₹201.81
₹201.81
excl. GST
₹238.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD90N03S4L-02
₹201.81 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.9nF
- Ciss-Input Capacitance
- 9.75nF
- Pd - Power Dissipation
- 136W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 90A
- Reverse Transfer Capacitance (Crss)
- 200pF
- RDS(on)
- 2.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 140nC@10V
- Vgs
- ±16V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.527 g
Overview
Key features
- N-Channel - Enhancement Mode
- AEC Q101 Automotive Qualified
- MSL 1, 260°C Peak Reflow Temperature
- Operating Temperature up to 175°C
- Green Product (RoHS Compliant)
- Ultra-Low On-Resistance Rds(on)
- 100% Avalanche Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DOD120N03#C36499180DOINGTER · TO-252 | DOINGTER | TO-252 | 2,755 | ₹20.64 · 2,755 in stock | View |
 | SP30N02TH#C41354851Siliup · TO-252-2L | Siliup | TO-252-2L | 2,465 | ₹27.33 · 2,465 in stock | View |
 | CMD150N03#C5203825Cmos · TO-252 | Cmos | TO-252 | 16 | ₹58.77 · 16 in stock | View |
 | JMTK3002B#C5444495Jiangsu JieJie Microelectronics · TO-252 | Jiangsu JieJie Microelectronics | TO-252 | 2,415 | ₹37.06 · 2,415 in stock | View |
 | IPD100N04S4-02#C536729Infineon · TO-252-3 | Infineon | TO-252-3 | On request | ₹473.82 · 0 in stock | View |
