InfineonDatasheet (PDF)

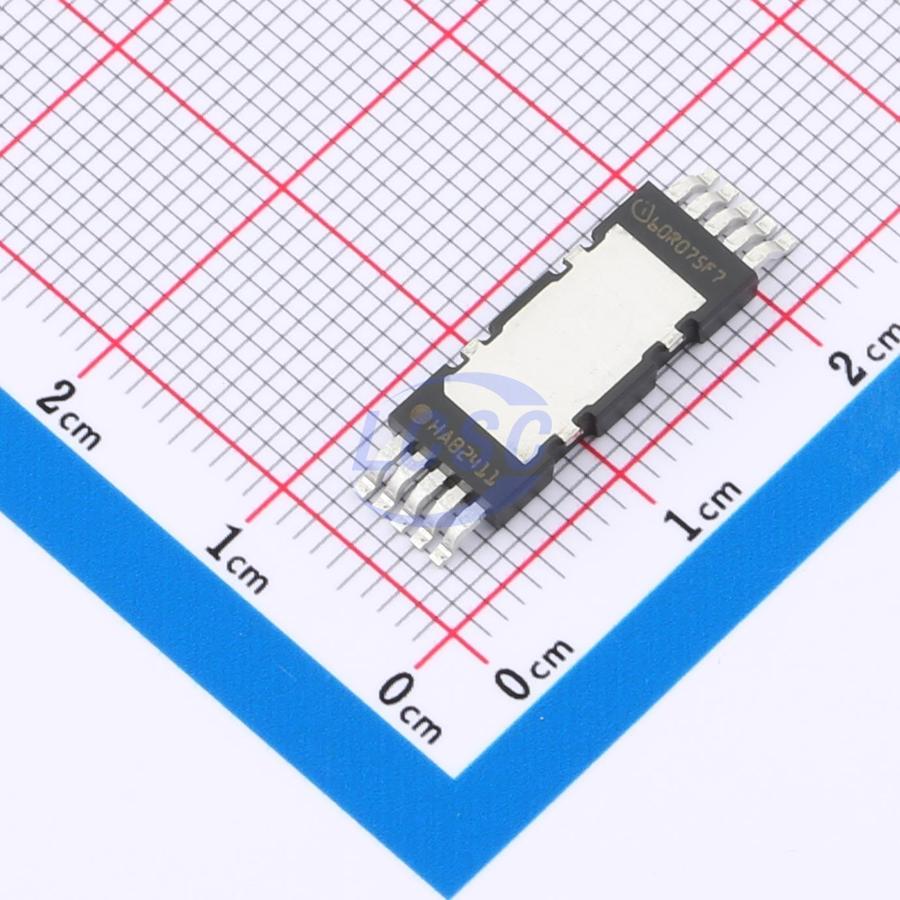

IPDD60R075CFD7XTMA1
600V 40A 266W 75mΩ@10V 1 N-channel N-Channel HDSOP-10 Single FETs, MOSFETs RoHS
HDSOP-10ROHS3 CompliantActive
600V CoolMOS CFD7 Power Transistor, Current:25A, Breakdown Voltage:650V
- Manufacturer
- Infineon
- Manufacturer part #
- IPDD60R075CFD7XTMA1
- Store part #
- C3288749
- Package / case
- HDSOP-10
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C3288749
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,295.01 | ₹1,295.01 |
| 10+ | ₹1,273.73 | ₹12,737.30 |
| 30+ | ₹1,259.54 | ₹37,786.20 |
| 100+ | ₹1,245.35 | ₹1,24,535.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,700 per reel
Specifications
- Drain to Source Voltage
- 600V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 40A
- Ciss-Input Capacitance
- 2.102nF
- Pd - Power Dissipation
- 266W
- Reverse Transfer Capacitance (Crss)
- 749pF
- RDS(on)
- 75mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 51nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,700 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.88 g
Overview
CoolMOS is a revolutionary technology for high-voltage power MOSFETs, designed based on the Super Junction (SJ) principle. The latest CoolMOS CFD7 is the successor to the CoolMOS CFD2 series — a platform specifically optimized for soft-switching applications such as Phase-Shifted Full Bridge (ZVS) and LLC. With reduced gate charge (Qg), best-in-class reverse recovery charge (Qrr), and improved turn-off characteristics, CoolMOS CFD7 achieves maximum efficiency in resonant topologies. As part of the fast body diode portfolio, this new product series combines all the advantages of fast switching technology with excellent hard-commutation robustness, while remaining easy to implement during design-in.
Applications
- Soft-switching topology
- Phase-shifted full bridge (ZVS), LLC applications - Server
- Telecom
- EV charging
Key features
- Ultra-fast body diode
- Low gate charge
- Best-in-class reverse recovery charge (Qrr)
- Improved dv/dt and diF/dt robustness of MOSFET body diode
- Lowest figure-of-merit RDS(ON)*Qg and RDS(ON)*Eoss
- Best-in-class RDS(ON) in SMD and THD packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPDD60R080G7#C536920Infineon · HDSOP-10-6.5mm | Infineon | HDSOP-10-6.5mm | 90 | ₹767.88 · 90 in stock | View |
 | IPDD60R050G7#C536919Infineon · HDSOP-10-6.5mm | Infineon | HDSOP-10-6.5mm | 10 | ₹1,230.75 · 10 in stock | View |
 | IPDD60R045CFD7XTMA1#C3278515Infineon · HDSOP-10 | Infineon | HDSOP-10 | On request | ₹1,048.41 · 0 in stock | View |
| IPDD60R055CFD7XTMA1#C3278521Infineon · HDSOP-10 | Infineon | HDSOP-10 | On request | ₹1,027.08 · 0 in stock | View | |
