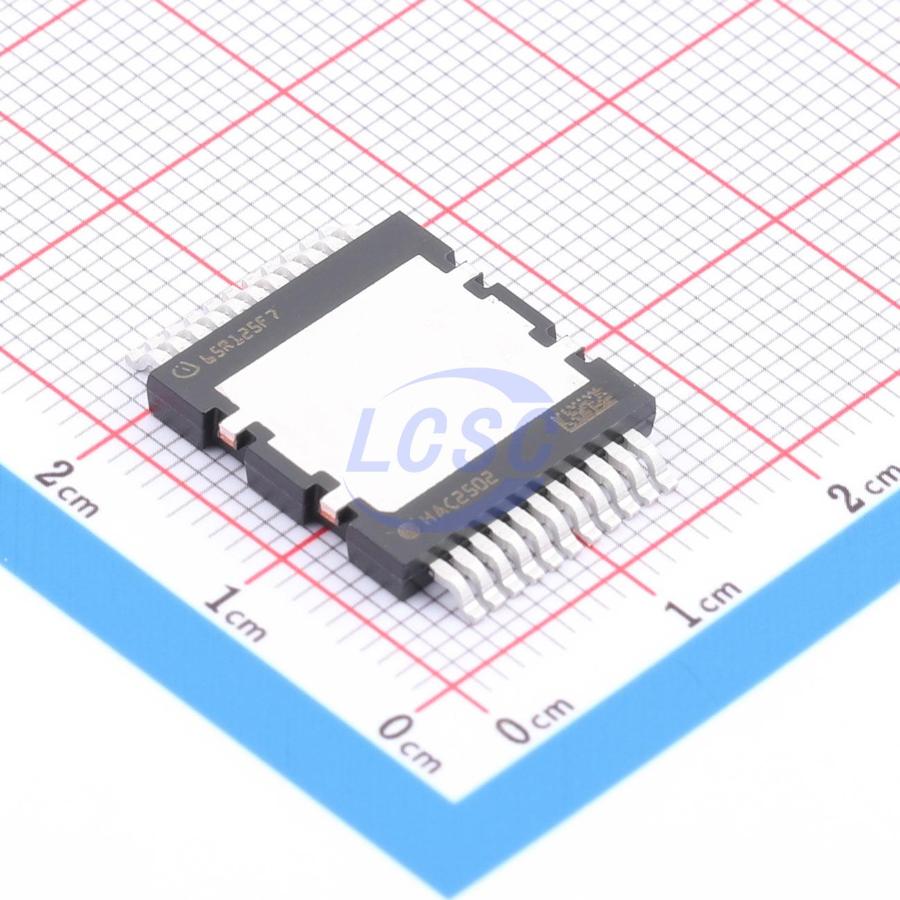

Infineon

IPDQ65R125CFD7XTMA1

650V 24A 160W 125mΩ@10V HDSOP-22-1 Single FETs, MOSFETs RoHS

HDSOP-22-1ROHS3 CompliantActive

Manufacturer: Infineon
Manufacturer part #: IPDQ65R125CFD7XTMA1
Store part #: C20191592
Package / case: HDSOP-22-1
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

46 in stock

#C20191592

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹541.40	₹541.40
10+	₹532.28	₹5,322.80
30+	₹526.21	₹15,786.30
100+	₹520.36	₹52,036.00

Quantity (min 1)

1 × ₹541.40

₹541.40

excl. GST

₹638.85 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 750 per reel

IPDQ65R125CFD7XTMA1

₹541.40 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Drain to Source Voltage: 650V
Operating Temperature: -55℃~+150℃
Current - Continuous Drain(Id): 24A
Ciss-Input Capacitance: 1.566nF
Pd - Power Dissipation: 160W
RDS(on): 125mΩ@10V
Gate Charge(Qg): 32nC@10V
Gate Threshold Voltage (Vgs(th)): 4.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 750 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 2.74 g

Overview

The latest 650 V CoolMOS CFD7 expands the CFD7 series voltage range and is the successor to the 650 V CoolMOS CFD2. With improved switching performance and excellent thermal characteristics, the 650 V CoolMOS CFD7 achieves maximum efficiency in resonant switching topologies such as LLC and phase-shifted full bridge (ZVS). As part of Infineon's fast body diode portfolio, this new product family combines all the advantages of fast switching technology with outstanding hard-commutation robustness. CoolMOS CFD7 technology meets the highest standards of efficiency and reliability while enabling high power density solutions.
