InfineonDatasheet (PDF)

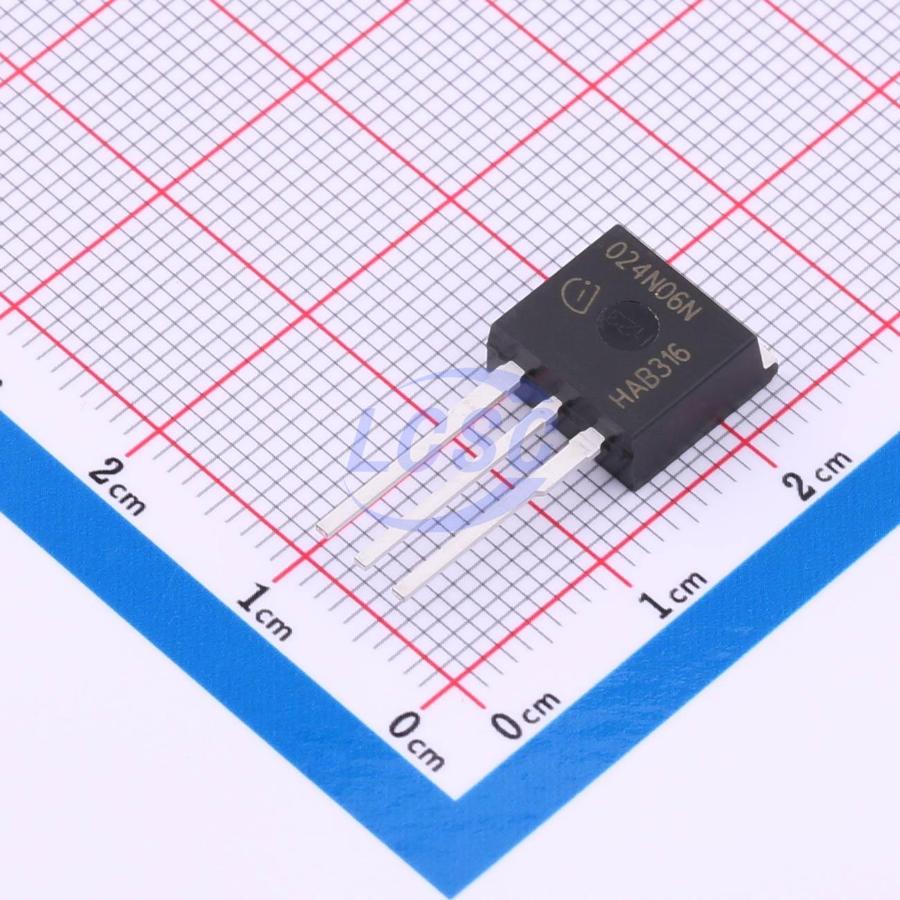

IPI024N06N3 G
N-Channel 60V 169A 250W Through Hole TO-262-3
TO-262-3ROHS CompliantActive
MOSFET N-CH 60V 169A TO-262-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPI024N06N3 G
- Store part #
- C536958
- Package / case
- TO-262-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C536958
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹478.71 | ₹478.71 |
| 10+ | ₹409.83 | ₹4,098.30 |
| 50+ | ₹368.76 | ₹18,438.00 |
| 100+ | ₹327.26 | ₹32,726.00 |
| 500+ | ₹308.13 | ₹1,54,065.00 |
| 1,000+ | ₹299.45 | ₹2,99,450.00 |
1 × ₹478.71
₹478.71
excl. GST
₹564.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPI024N06N3 G
₹478.71 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 3.7nF
- Current - Continuous Drain(Id)
- 169A
- Ciss-Input Capacitance
- 17nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 2.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 206nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.507 g
Overview
CoolMOS is a revolutionary technology for high-voltage power MOSFETs, designed based on the Super Junction (SJ) principle. The latest CoolMOS P7 is an optimized platform specifically targeting cost-sensitive applications in the consumer market, such as chargers, adapters, lighting, and TVs. This new series offers all the advantages of fast-switching SJ MOSFETs, combined with an excellent price-to-performance ratio and best-in-class ease of use. The technology meets the highest efficiency standards, supports high power density, and enables customers to achieve very slim designs.
Applications
- Flyback topology for charger, adapter, and lighting applications
Key features
- High-frequency switching and synchronous rectification
- Technology optimized for DC/DC converters
- Excellent gate charge × RDS(on) figure of merit (FOM)
- Ultra-low on-resistance RDS(ON)
- N-channel, normally-on
- 100% avalanche tested
- Lead-free plating; RoHS compliant
- JEDEC qualified for target applications
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| IRFSL3206PBF#C538042Infineon · TO-262-3 | Infineon | TO-262-3 | 29 | ₹907.26 · 29 in stock | View | |
 | PSMN3R0-60ES,127-VB#C52191105VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 5 | ₹208.99 · 5 in stock | View |
 | BUK7E2R6-60E,127-VB#C52209355VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 5 | ₹208.99 · 5 in stock | View |
| BUK7E4R6-60E,127-VB#C52209356VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 5 | ₹208.99 · 5 in stock | View | |
| BUK7E3R5-60E,127-VB#C52209357VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 5 | ₹208.99 · 5 in stock | View | |
