HXY MOSFETDatasheet (PDF)

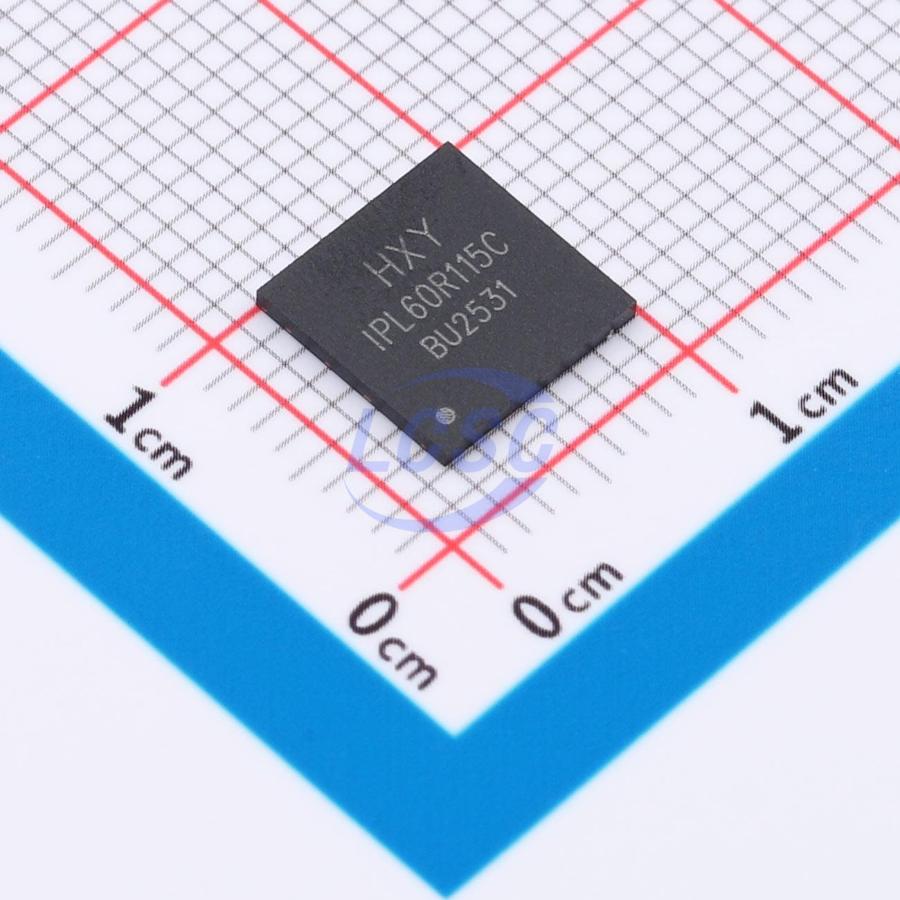

IPL60R115CFD7-HXY
650V 17A 113W 100mΩ 1 N-channel N-Channel DFN-8(8x8) Single FETs, MOSFETs RoHS
DFN-8(8x8)ROHS CompliantActive
GaN-on-Silicon Enhancement-mode Power Transistor
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IPL60R115CFD7-HXY
- Store part #
- C48972074
- Package / case
- DFN-8(8x8)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
166 in stock
#C48972074
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹399.86 | ₹399.86 |
| 10+ | ₹341.51 | ₹3,415.10 |
| 30+ | ₹304.90 | ₹9,147.00 |
| 100+ | ₹264.64 | ₹26,464.00 |
| 500+ | ₹247.84 | ₹1,23,920.00 |
| 1,000+ | ₹240.52 | ₹2,40,520.00 |
1 × ₹399.86
₹399.86
excl. GST
₹471.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPL60R115CFD7-HXY
₹399.86 for 1 + GST
Specifications
- Drain to Source Voltage
- 650V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 17A
- Output Capacitance(Coss)
- 40pF
- Ciss-Input Capacitance
- 125pF
- Technology
- E-mode
- Pd - Power Dissipation
- 113W
- Reverse Transfer Capacitance (Crss)
- 0.5pF
- RDS(on)
- 100mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 3.3nC
- Type
- N-Channel
- Gate Threshold Voltage (Vgs(th))
- 1.7V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.232 g
Overview
Applications
- AC-DC converter
- DC-DC converter
- Totem-pole power factor correction
- Fast battery charging
- High-density power conversion
- High-efficiency power conversion
Key features
- Enhancement-mode transistor, normally-off power switch
- Ultra-high switching frequency
- No reverse recovery charge
- Low gate charge, low output charge
- JEDEC-compliant, suitable for industrial applications
- ESD protection
- RoHS, lead-free, REACH compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HCG65140DAA#C22396444HXY MOSFET · DFN-8(8x8) | HXY MOSFET | DFN-8(8x8) | 118 | ₹433.64 · 118 in stock | View |
