InfineonDatasheet (PDF)

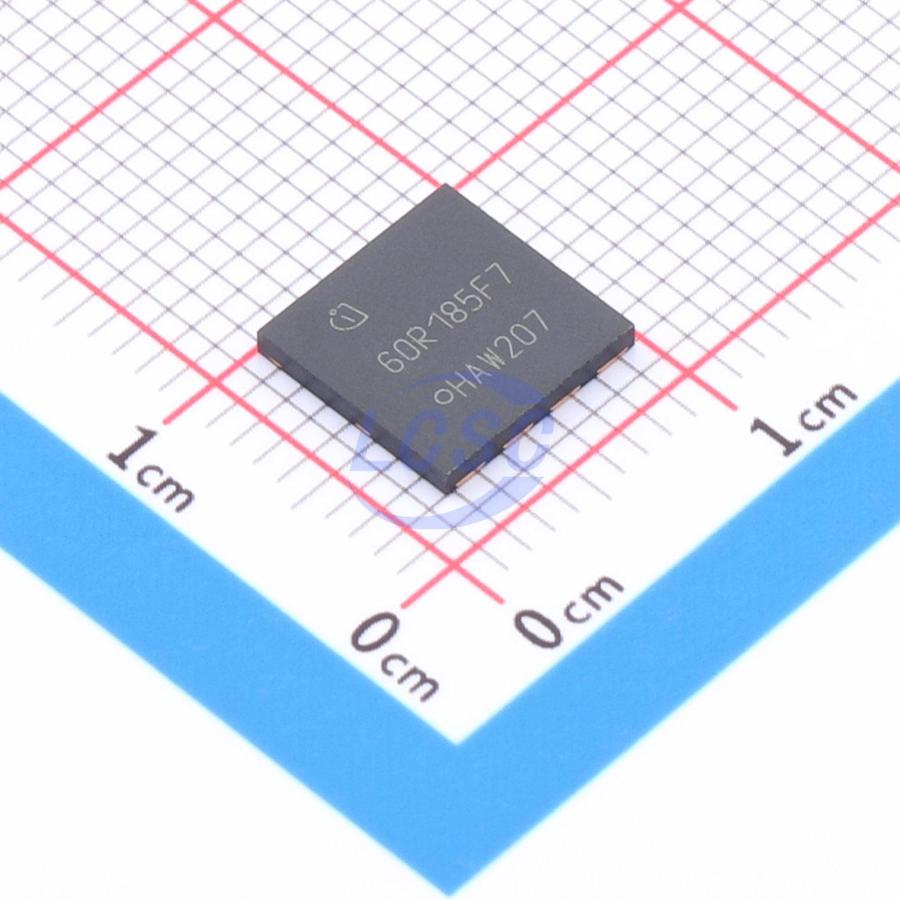

IPL60R185CFD7
650V 9A 85W Surface Mount VSON-4(8x8)
VSON-4(8x8)ROHS3 CompliantActive
MOSFET 650V 9A VSON-4(8x8)
- Manufacturer
- Infineon
- Manufacturer part #
- IPL60R185CFD7
- Store part #
- C537029
- Package / case
- VSON-4(8x8)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
54 in stock
#C537029
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹250.21 | ₹250.21 |
| 10+ | ₹210.11 | ₹2,101.10 |
| 30+ | ₹184.93 | ₹5,547.90 |
| 100+ | ₹159.34 | ₹15,934.00 |
| 500+ | ₹147.61 | ₹73,805.00 |
| 1,000+ | ₹142.70 | ₹1,42,700.00 |
1 × ₹250.21
₹250.21
excl. GST
₹295.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IPL60R185CFD7
₹250.21 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 22pF
- Ciss-Input Capacitance
- 1.199nF
- Pd - Power Dissipation
- 85W
- Operating Temperature
- -40℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 9A
- Reverse Transfer Capacitance (Crss)
- 402pF
- RDS(on)
- 185mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 28nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.362 g
Overview
CoolMOS is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle. The latest CoolMOS CFD7 is the successor to the CoolMOS CFD2 series and is an optimized platform tailored to target soft switching applications such as phase-shift full-bridge (ZVS) and LLC. Resulting from reduced gate charge, best-in-class reverse recovery charge and improved turn off behavior CoolMOS CFD7 offers highest efficiency in resonant topologies. As part of Infineon’s fast body diode portfolio, this new product series blends all advantages of a fast switching technology together with superior hard commutation robustness, without sacrificing easy implementation in the design-in process. The CoolMOS CFD7 technology meets highest efficiency and reliability standards and furthermore supports high power density solutions. Altogether, CoolMOS CFD7 makes resonant switching topologies more efficient, more reliable, lighter and cooler.
Applications
- Soft Switching topologies
- Phase-shift full-bridge (ZVS), LLC Applications – Server, Telecom, EV Charging
Key features
- Ultra-fast body diode
- Low gate charge
- Best-in-class reverse recovery charge (Qrr)
- Improved MOSFET reverse diode dv/dt and diF/dt ruggedness
- Lowest FOM RDS(on)*Qg and RDS(on)*Eoss
- Best-in-class RDS(on) in SMD and THD packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTMT064N65S3H#C894054onsemi · TDFN-4(8x8) | onsemi | TDFN-4(8x8) | 4 | ₹1,156.67 · 4 in stock | View |
 | IPL60R075CFD7#C537017Infineon · VSON-4(8x8) | Infineon | VSON-4(8x8) | 471 | ₹546.48 · 471 in stock | View |
 | IPL65R070C7#C537041Infineon · VSON-4(8x8) | Infineon | VSON-4(8x8) | 2 | ₹1,062.54 · 2 in stock | View |
 | FCMT080N65S3#C890865onsemi · TDFN-4(8x8) | onsemi | TDFN-4(8x8) | 12 | ₹809.00 · 12 in stock | View |
