VBsemi ElecDatasheet (PDF)

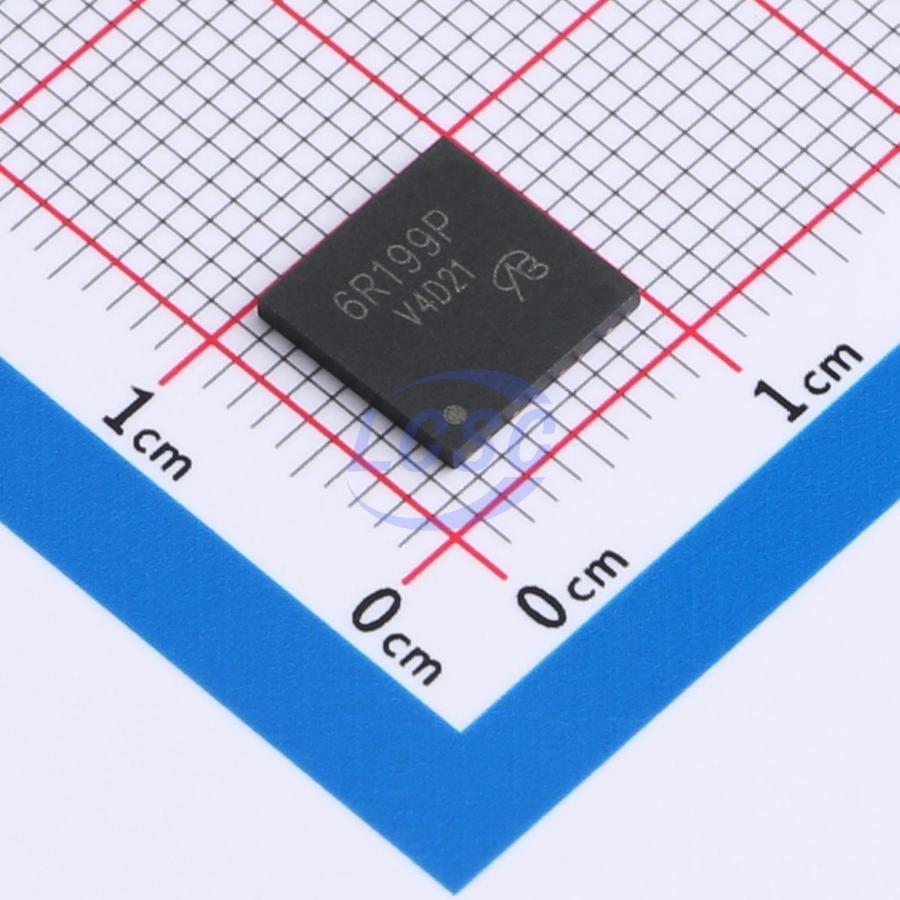

IPL60R199CPAUMA1-VB
N-Channel 650V 20A 90W Surface Mount DFN-8(8x8)
DFN-8(8x8)RoHSActive
MOSFET N-CH 650V 20A DFN-8(8x8)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IPL60R199CPAUMA1-VB
- Store part #
- C22395933
- Package / case
- DFN-8(8x8)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C22395933
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹421.12 | ₹421.12 |
| 10+ | ₹359.19 | ₹3,591.90 |
| 30+ | ₹320.52 | ₹9,615.60 |
| 100+ | ₹280.75 | ₹28,075.00 |
| 500+ | ₹262.72 | ₹1,31,360.00 |
| 1,000+ | ₹254.89 | ₹2,54,890.00 |
1 × ₹421.12
₹421.12
excl. GST
₹496.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IPL60R199CPAUMA1-VB
₹421.12 for 1 + GST
Specifications
- Drain to Source Voltage
- 650V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 2.6nF
- Pd - Power Dissipation
- 90W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 160mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 60nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.76 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
Key features
- Low figure-of-merit (FOM) R_on×Q_g
- Low input capacitance (C_iss)
- Reduced switching and conduction losses
- Ultra low gate charge (Q_g)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FCMT125N65S3-VB#C50386998VBsemi Elec · DFN-8(8x8) | VBsemi Elec | DFN-8(8x8) | 5 | ₹436.59 · 5 in stock | View |
 | FCMT180N65S3-VB#C50386999VBsemi Elec · DFN-8(8x8) | VBsemi Elec | DFN-8(8x8) | 3 | ₹439.59 · 3 in stock | View |
 | FCMT199N60-VB#C50387000VBsemi Elec · DFN-8(8x8) | VBsemi Elec | DFN-8(8x8) | 5 | ₹439.59 · 5 in stock | View |
| IPL60R065C7AUMA1-VB#C50387006VBsemi Elec · DFN-8(8x8) | VBsemi Elec | DFN-8(8x8) | 5 | ₹439.59 · 5 in stock | View | |
| IPL60R075CFD7AUMA1-VB#C50387007VBsemi Elec · DFN-8(8x8) | VBsemi Elec | DFN-8(8x8) | 5 | ₹439.59 · 5 in stock | View | |
