MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
InfineonDatasheet (PDF)

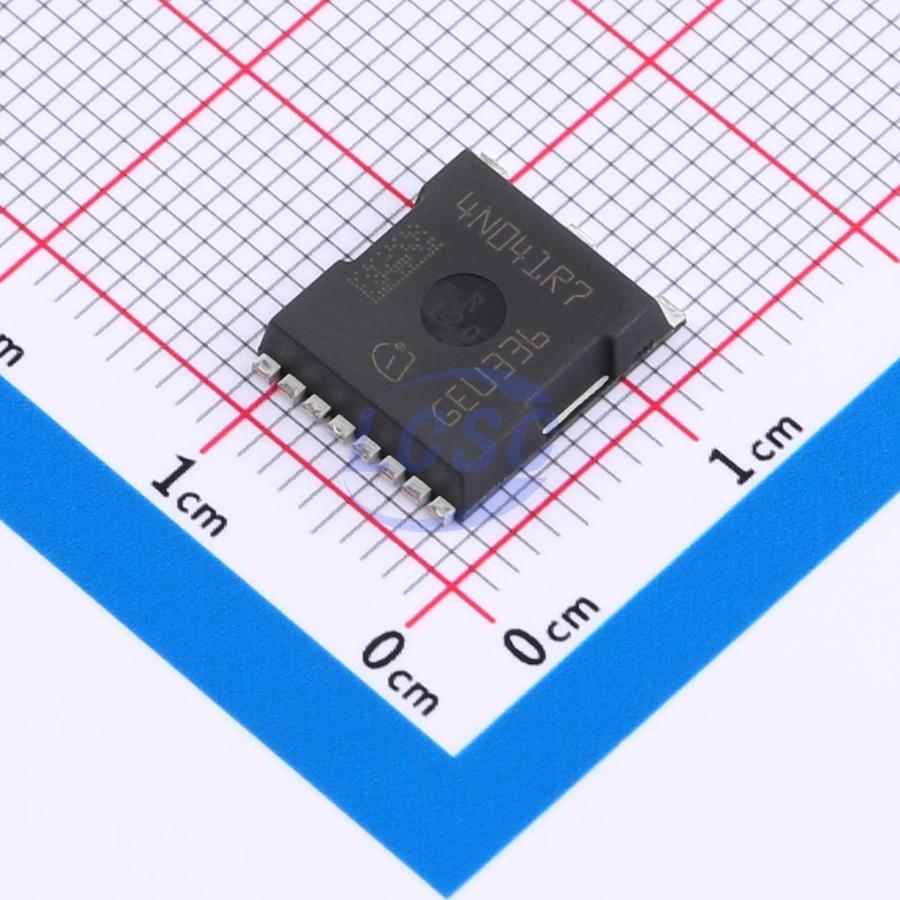

IPLU250N04S4-1R7
N-Channel 40V 250A 188W HSOF-8
HSOF-8ROHS3 CompliantActive
MOSFET N-CH 40V 250A HSOF-8
- Manufacturer
- Infineon
- Manufacturer part #
- IPLU250N04S4-1R7
- Store part #
- C537068
- Package / case
- HSOF-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
37 in stock
#C537068
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹373.23 | ₹373.23 |
| 10+ | ₹314.37 | ₹3,143.70 |
| 30+ | ₹277.53 | ₹8,325.90 |
| 100+ | ₹239.60 | ₹23,960.00 |
| 500+ | ₹222.58 | ₹1,11,290.00 |
| 1,000+ | ₹215.17 | ₹2,15,170.00 |
1 × ₹373.23
₹373.23
excl. GST
₹440.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IPLU250N04S4-1R7
₹373.23 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.8nF
- Ciss-Input Capacitance
- 7.9nF
- Pd - Power Dissipation
- 188W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 250A
- Reverse Transfer Capacitance (Crss)
- 105pF
- RDS(on)
- 1.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 100nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.29 g
Overview
Key features
- N-channel - Enhancement mode
- AEC qualified
- MSL1 up to 260°C peak reflow
- 17500 operating temperature
- Green product (RoHS compliant); 100% lead free
- Ultra low Rds(on)
- 100% Avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMSL300N04S4-1R1#C19724753Cmos · TOLL-8L | Cmos | TOLL-8L | 101 | ₹104.94 · 101 in stock | View |
 | IAUT260N10S5N019#C535726Infineon · HSOF-8 | Infineon | HSOF-8 | 91 | ₹417.74 · 91 in stock | View |
 | IPT012N06NATMA1#C3288771Infineon · HSOF-8 | Infineon | HSOF-8 | 75 | ₹632.05 · 75 in stock | View |
 | IPT025N15NM6ATMA1#C30698831Infineon · HSOF-8 | Infineon | HSOF-8 | 4,151 | ₹584.29 · 4,151 in stock | View |
 | IPT015N10N5(TOKMAS)#C19626223Tokmas · HSOF-8 | Tokmas | HSOF-8 | 568 | ₹164.37 · 568 in stock | View |
