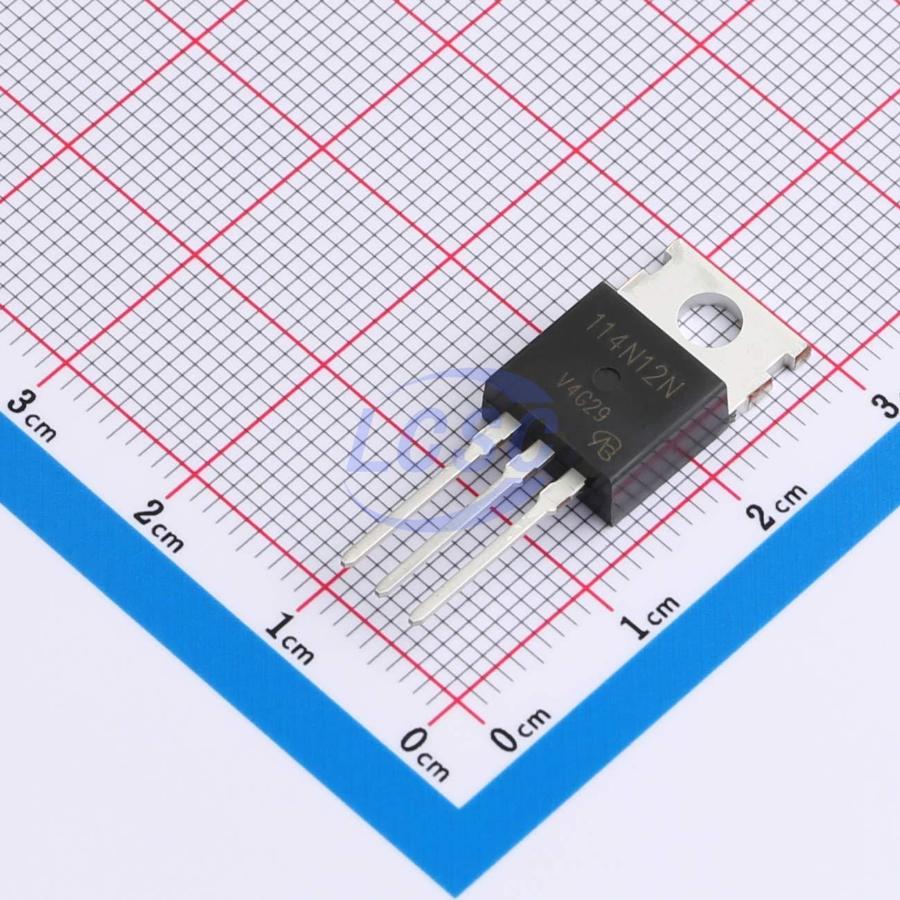

IPP114N12N3 G-VB
N-Channel 100V 100A 250W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 100V 100A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IPP114N12N3 G-VB
- Store part #
- C29779318
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C29779318
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.96 | ₹136.96 |
| 10+ | ₹110.29 | ₹1,102.90 |
| 50+ | ₹97.06 | ₹4,853.00 |
| 100+ | ₹83.81 | ₹8,381.00 |
| 500+ | ₹75.83 | ₹37,915.00 |
| 1,000+ | ₹71.84 | ₹71,840.00 |
1 × ₹136.96
₹136.96
excl. GST
₹161.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPP114N12N3 G-VB
₹136.96 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 665pF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 4.7nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 265pF
- RDS(on)
- 9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 160nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.2 g
Overview
Applications
- OR operation
- Server
- DC/DC
Key features
- TrenchFET Power MOSFET
- 175 °C Maximum Junction Temperature
- Compliant to RoHS Directive 2002/95/EC
- N-Channel MOSFET
