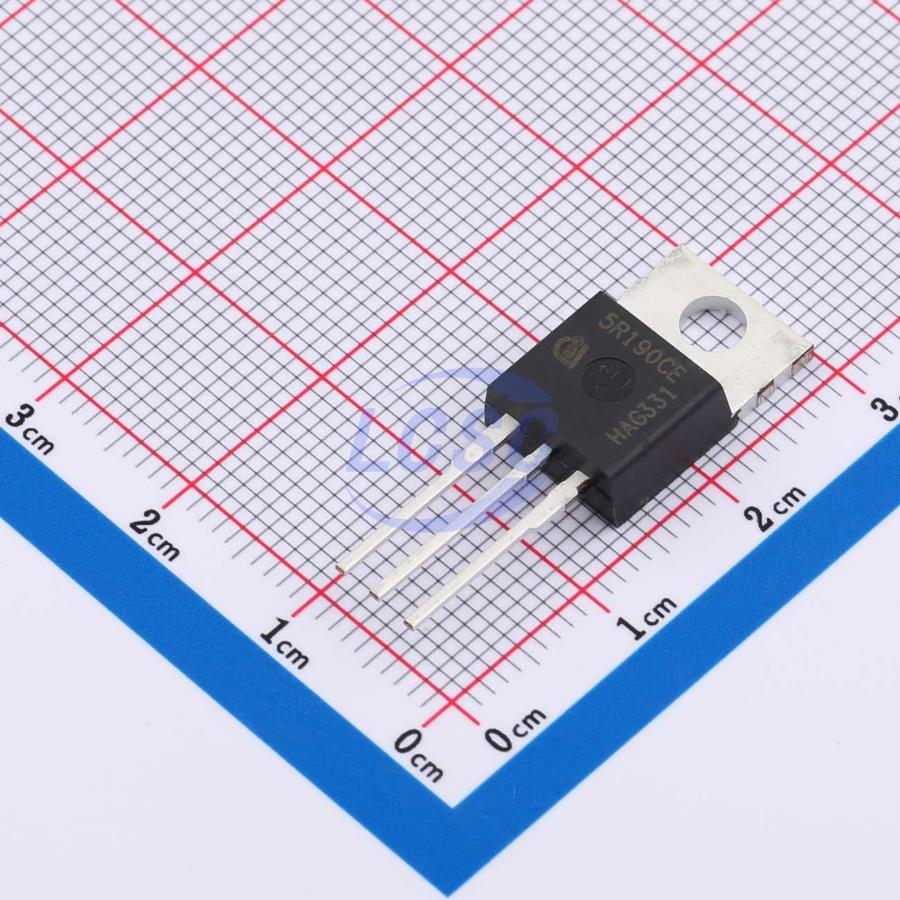

IPP50R190CE
N-Channel 550V 24.8A 152W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 550V 24.8A TO-220
- Manufacturer
- Infineon
- Manufacturer part #
- IPP50R190CE
- Store part #
- C537176
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C537176
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹214.74 | ₹214.74 |
| 10+ | ₹182.04 | ₹1,820.40 |
| 50+ | ₹161.33 | ₹8,066.50 |
| 100+ | ₹140.40 | ₹14,040.00 |
| 500+ | ₹130.81 | ₹65,405.00 |
| 1,000+ | ₹126.66 | ₹1,26,660.00 |
1 × ₹214.74
₹214.74
excl. GST
₹253.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPP50R190CE
₹214.74 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 68pF
- Ciss-Input Capacitance
- 1.137nF
- Pd - Power Dissipation
- 152W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 550V
- Current - Continuous Drain(Id)
- 24.8A
- Reverse Transfer Capacitance (Crss)
- 251pF
- RDS(on)
- 190mΩ@13V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47.2nC@400V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.814 g
Overview
CoolMOS is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle. CoolMOS CE series combines the experience of the leading SJ MOSFET supplier with high class innovation while representing a cost appealing alternative compared to standard MOSFETs in target applications. The resulting devices provide all benefits of a fast switching SJ MOSFET while not sacrificing ease of use. Extremely low switching and conduction losses make switching applications even more efficient, more compact, lighter and cooler.
Applications
- PFC stages, hard switching PWM stages and resonant switching PWM stages for e.g. PC Silverbox, LCD & PDP TV and Lighting.
Key features
- Extremely low losses due to very low FOM Rdson*Qg and Eoss
- Very high commutation ruggedness
- Easy to use/drive
- Pb-free plating, Halogen free mold compound
- Qualified for industrial grade applications according to JEDEC (J-STD20 and JESD22)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPP60R125CP#C537202Infineon · TO-220 | Infineon | TO-220 | 4 | ₹2,277.27 · 4 in stock | View |
 | IPP60R099CP#C537193Infineon · TO-220 | Infineon | TO-220 | 22 | ₹371.80 · 22 in stock | View |
 | STP43N60DM2#C472619ST · TO-220 | ST | TO-220 | 6 | ₹380.63 · 6 in stock | View |
 | NTP110N65S3HF#C604470onsemi · TO-220 | onsemi | TO-220 | 38 | ₹1,006.78 · 38 in stock | View |
 | SiHP080N60E-VB#C22356999VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹592.15 · 5 in stock | View |
