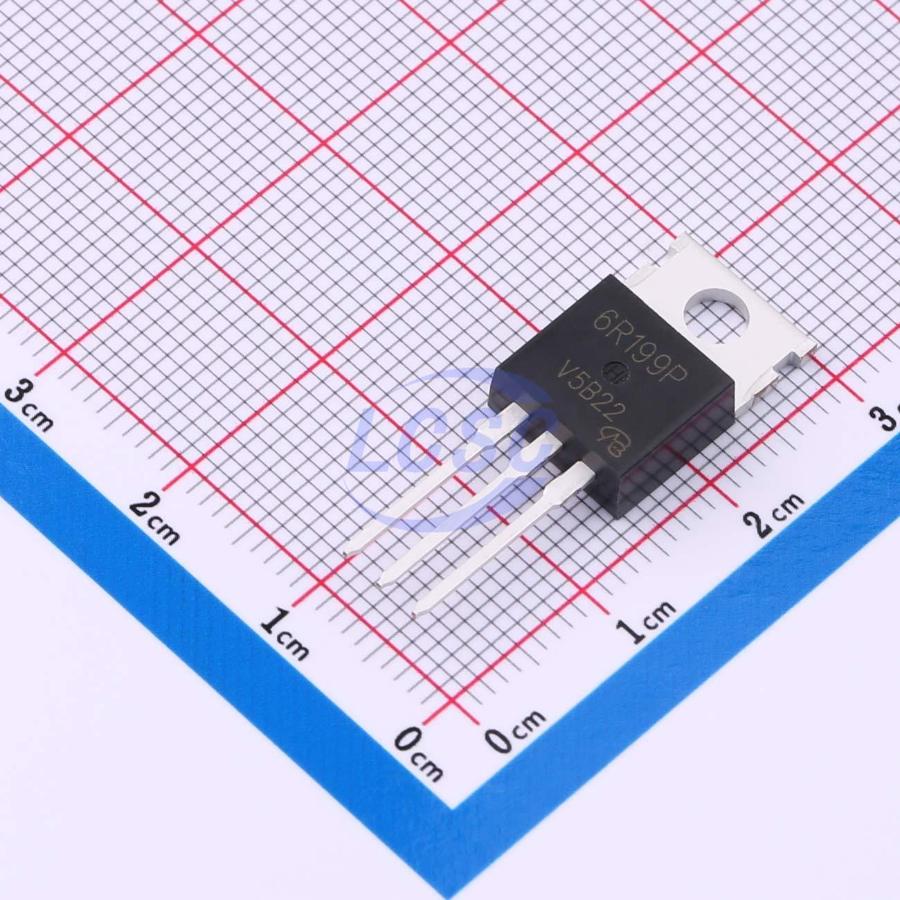

IPP60R199CP-VB
N-Channel 650V 20A 208W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 650V 20A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IPP60R199CP-VB
- Store part #
- C45662398
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
31 in stock
#C45662398
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹410.26 | ₹410.26 |
| 10+ | ₹354.86 | ₹3,548.60 |
| 50+ | ₹283.15 | ₹14,157.50 |
| 100+ | ₹247.72 | ₹24,772.00 |
| 500+ | ₹231.64 | ₹1,15,820.00 |
| 1,000+ | ₹224.69 | ₹2,24,690.00 |
1 × ₹410.26
₹410.26
excl. GST
₹484.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPP60R199CP-VB
₹410.26 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 105pF
- Current - Continuous Drain(Id)
- 20A
- Pd - Power Dissipation
- 208W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 190mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 106nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.74 g
Overview
Applications
- Telecom
- Server and Telecom Power Supplies
- Lighting
- High Intensity Discharge (HID) Lamps
- Fluorescent Lamp Ballast Lighting
- Consumer Electronics and Computing
- ATX Power Supplies
- Industrial
- Welding
- Battery Chargers
- Renewable Energy
- Solar (Photovoltaic Inverters)
- Switch Mode Power Supplies (SMPS)
Key features
- Reduced reverse recovery time (trr), reverse recovery charge (Qrr), and reverse recovery peak current (IRRM)
- Low figure of merit (FOM): on-resistance (Ron) × gate charge (Qg)
- Low input capacitance (Ciss)
- Low switching losses due to reduced Qrr
- Ultra-low gate charge (Qg)
- Avalanche energy rated (UIS)
