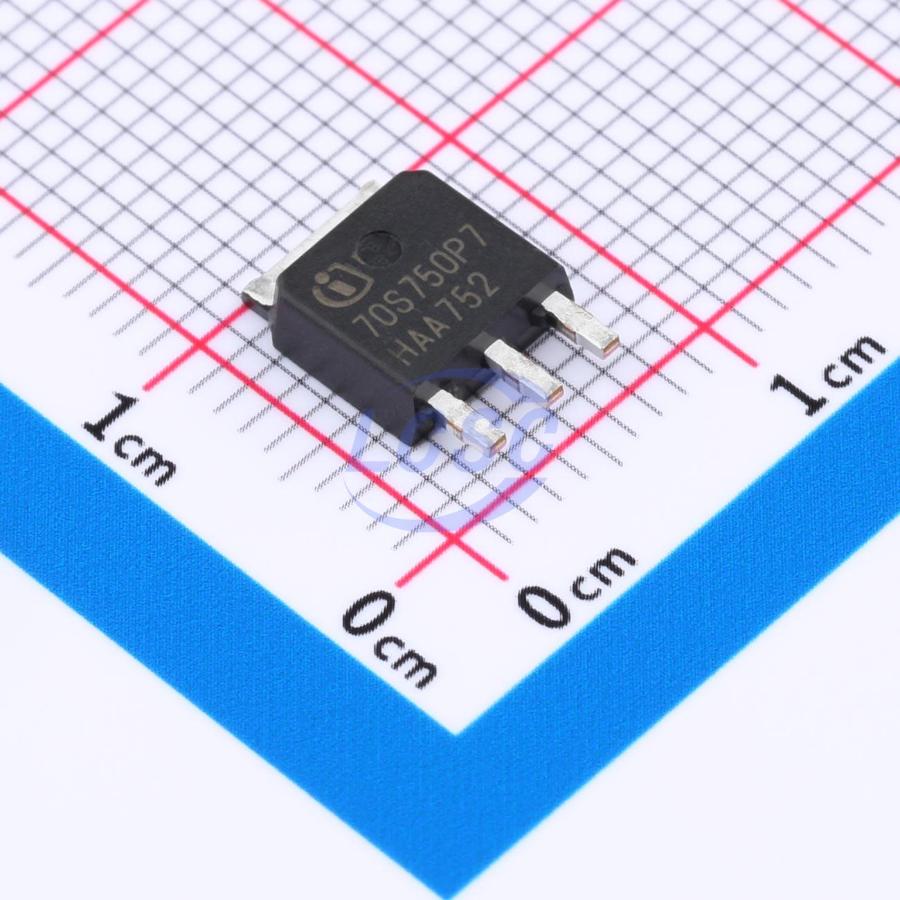

IPSA70R750P7SAKMA1
N-Channel 700V 6.5A 34.7W Through Hole TO-251-3
TO-251-3ROHS CompliantActive
MOSFET N-CH 700V 6.5A TO-251-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPSA70R750P7SAKMA1
- Store part #
- C3278972
- Package / case
- TO-251-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C3278972
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹220.00 | ₹220.00 |
| 10+ | ₹202.78 | ₹2,027.80 |
| 30+ | ₹192.11 | ₹5,763.30 |
| 100+ | ₹181.04 | ₹18,104.00 |
| 500+ | ₹175.92 | ₹87,960.00 |
| 1,500+ | ₹173.87 | ₹2,60,805.00 |
1 × ₹220.00
₹220.00
excl. GST
₹259.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per tube
IPSA70R750P7SAKMA1
₹220.00 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 5.1pF
- Ciss-Input Capacitance
- 306pF
- Pd - Power Dissipation
- 34.7W
- Operating Temperature
- -40℃~+150℃
- Drain to Source Voltage
- 700V
- Current - Continuous Drain(Id)
- 6.5A
- Reverse Transfer Capacitance (Crss)
- 150pF
- RDS(on)
- 750mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.3nC@10V
- Vgs
- ±16V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 1,500 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.2 g
Overview
CoolMOS is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle. The latest CoolMOS P7 is an optimized platform tailored to target cost sensitive applications in consumer markets such as charger, adapter, lighting, TV, etc. The new series provides all the benefits of a fast switching Superjunction MOSFET, combined with an excellent price/performance ratio and state of the art ease-of-use level. The technology meets highest efficiency standards and supports high power density, enabling customers going towards very slim designs.
Applications
- Flyback topologies used in Chargers
- Flyback topologies used in Adapters
- Flyback topologies used in Lighting Applications
Key features
- Extremely low losses due to very low FOM RDS(on)*Qg and RDS(on)*Eoss
- Excellent thermal behavior
- Integrated ESD protection diode
- Low switching losses (Eoss)
- Product validation acc. JEDEC Standard
