InfineonDatasheet (PDF)

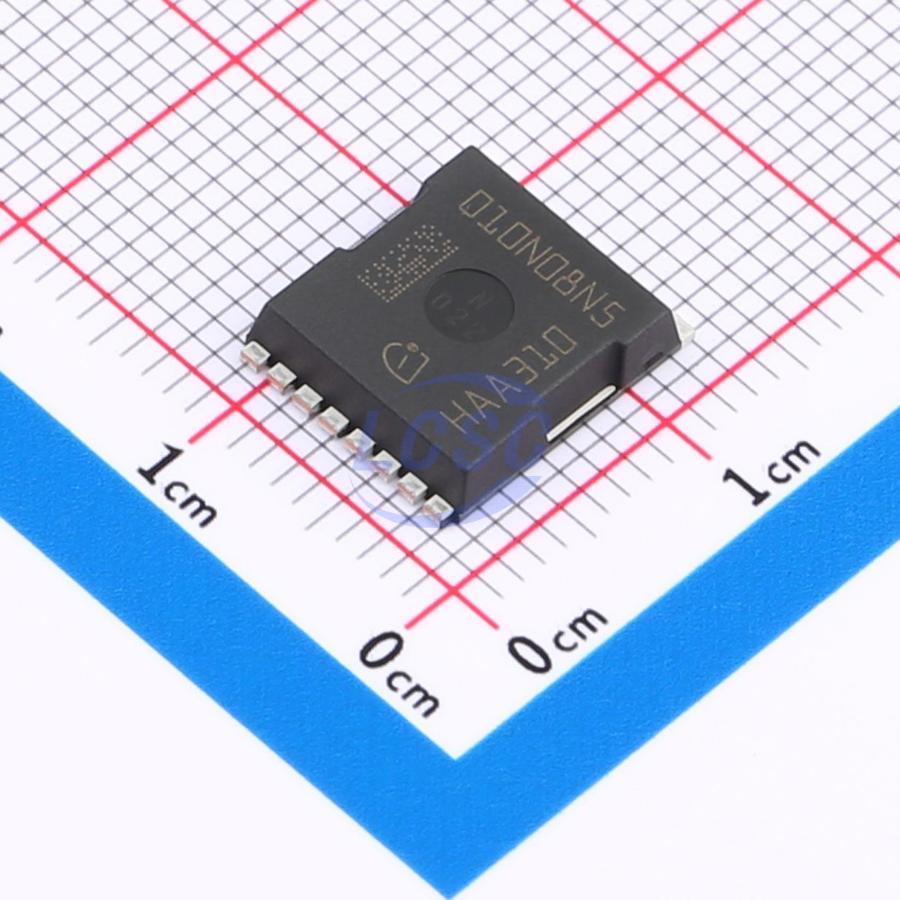

IPT010N08NM5ATMA1
N-Channel 80V 425A 375W HSOF-8
HSOF-8ROHS3 CompliantActive
MOSFET N-CH 80V 425A HSOF-8
- Manufacturer
- Infineon
- Manufacturer part #
- IPT010N08NM5ATMA1
- Store part #
- C3288766
- Package / case
- HSOF-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
165 in stock
#C3288766
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹954.29 | ₹954.29 |
| 10+ | ₹818.18 | ₹8,181.80 |
| 30+ | ₹735.43 | ₹22,062.90 |
| 100+ | ₹665.96 | ₹66,596.00 |
1 × ₹954.29
₹954.29
excl. GST
₹1,126.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IPT010N08NM5ATMA1
₹954.29 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Output Capacitance(Coss)
- 2.6nF
- Current - Continuous Drain(Id)
- 425A
- Ciss-Input Capacitance
- 16nF
- Pd - Power Dissipation
- 375W
- Reverse Transfer Capacitance (Crss)
- 150pF
- RDS(on)
- 1.05mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 223nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.2 g
Overview
Key features
- N-channel, normal level
- Very low on-resistance RDS(on)
- Ideal for high frequency switching and sync. rec.
- 100% avalanche tested
- Excellent gate charge x RDS(on) product (FOM)
- Pb-free lead plating; RoHS compliant
- Halogen-free according to IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| IAUT300N08S5N011ATMA1#C3288767Infineon · HSOF-8 | Infineon | HSOF-8 | On request | ₹768.53 · 0 in stock | View | |
 | IPT015N10N5(TOKMAS)#C19626223Tokmas · HSOF-8 | Tokmas | HSOF-8 | 568 | ₹164.37 · 568 in stock | View |
