InfineonDatasheet (PDF)

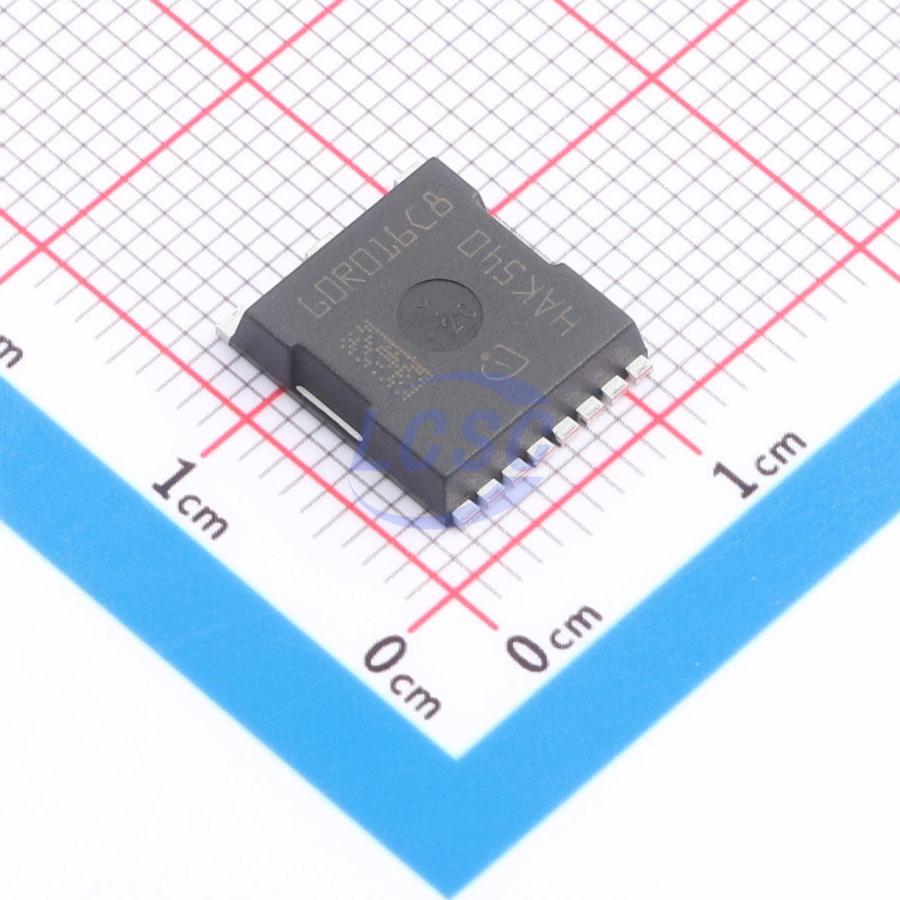

IPT60R016CM8XTMA1
600V 142A 694W 13mΩ@10V 1 N-channel N-Channel PG-HSOF-8 Single FETs, MOSFETs RoHS
PG-HSOF-8ROHS3 CompliantActive
MOSFET N-CH 600V 142A PG-HSOF-8
- Manufacturer
- Infineon
- Manufacturer part #
- IPT60R016CM8XTMA1
- Store part #
- C23569857
- Package / case
- PG-HSOF-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
65 in stock
#C23569857
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,782.62 | ₹1,782.62 |
| 10+ | ₹1,695.24 | ₹16,952.40 |
| 30+ | ₹1,544.10 | ₹46,323.00 |
| 100+ | ₹1,412.26 | ₹1,41,226.00 |
1 × ₹1,782.62
₹1,782.62
excl. GST
₹2,103.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IPT60R016CM8XTMA1
₹1,782.62 for 1 + GST
Specifications
- Drain to Source Voltage
- 600V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 142A
- Output Capacitance(Coss)
- 91pF
- Ciss-Input Capacitance
- 7.545nF
- Pd - Power Dissipation
- 694W
- RDS(on)
- 13mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 171nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.902 g
Overview
The CoolMOS 8th generation platform is a revolutionary technology for high-voltage power MOSFETs, designed based on the Super Junction (SJ) principle. The 600V CoolMOS CM8 series is the successor to CoolMOS 7. It combines the advantages of fast-switching SJ MOSFETs with excellent ease of use, such as low ringing tendency. All products feature a fast body diode (CFD), offering outstanding hard-commutation robustness and superior ESD capability. In addition, the extremely low switching and conduction losses of CM8 enable higher efficiency in switching applications.
Applications
- Power Supplies and Converters - PFC Stage and LLC Resonant Converters - High-Efficiency Switching Applications e.g.: Servers, Telecom, EV Charging, UPS
Key features
- Excellent commutation robustness for hard- and soft-switching topologies
- Significantly reduced switching and conduction losses
- Ultra-low RDS(on)*A achieves best-in-class RDS(on) per package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPT65R018CM8XTMA1#C47146864Infineon · PG-HSOF-8 | Infineon | PG-HSOF-8 | 2 | ₹2,802.33 · 2 in stock | View |
