InfineonDatasheet (PDF)

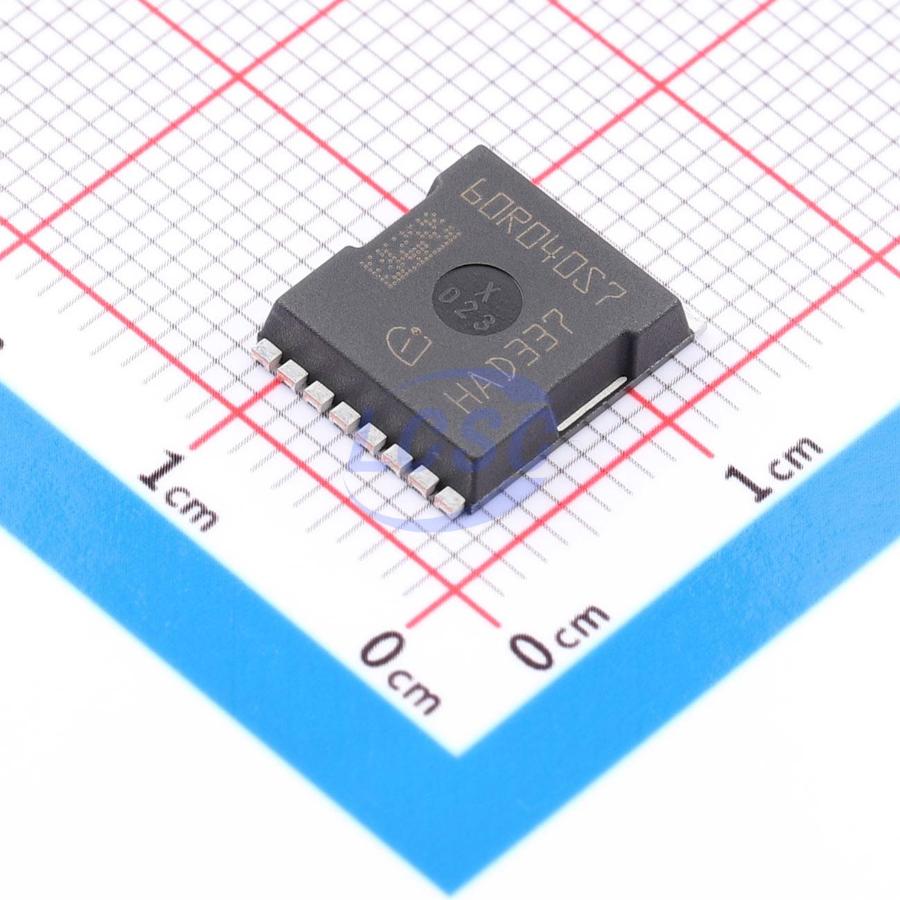

IPT60R040S7
600V 13A 245W 40mΩ@12V 1 N-channel N-Channel HSOF-8 Single FETs, MOSFETs RoHS
HSOF-8ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPT60R040S7
- Store part #
- C531210
- Package / case
- HSOF-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C531210
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,146.49 | ₹1,146.49 |
| 10+ | ₹1,126.28 | ₹11,262.80 |
| 30+ | ₹1,112.96 | ₹33,388.80 |
| 100+ | ₹1,099.41 | ₹1,09,941.00 |
1 × ₹1,146.49
₹1,146.49
excl. GST
₹1,352.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IPT60R040S7
₹1,146.49 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Output Capacitance(Coss)
- 50pF
- Current - Continuous Drain(Id)
- 13A
- Ciss-Input Capacitance
- 3.127nF
- Pd - Power Dissipation
- 245W
- RDS(on)
- 40mΩ@12V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 83nC@12V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.33 g
Overview
The IPT60R040S7 offers the best cost-performance ratio for low-frequency switching applications. As a high-voltage superjunction MOSFET, CoolMOS S7 features an extremely low on-resistance (Rdson), significantly improving energy efficiency. CoolMOS S7 is optimized for "static switching" and high-current applications. It is ideal for solid-state relay and circuit breaker designs, as well as line rectification in SMPS and inverter topologies.
Applications
- Solid state relays and circuit breakers
- Line rectification in high-power/high-performance applications such as computers, telecom, UPS, and solar energy
Key features
- CoolMOS S7 technology achieving 22mΩ RDS(on) in minimum package size
- Optimized cost-performance ratio for low-frequency switching applications
- High pulse current capability
- Kelvin source pin for improved switching performance at high current
- TOLL package compliant with MSL1, fully lead-free, pins suitable for visual inspection
