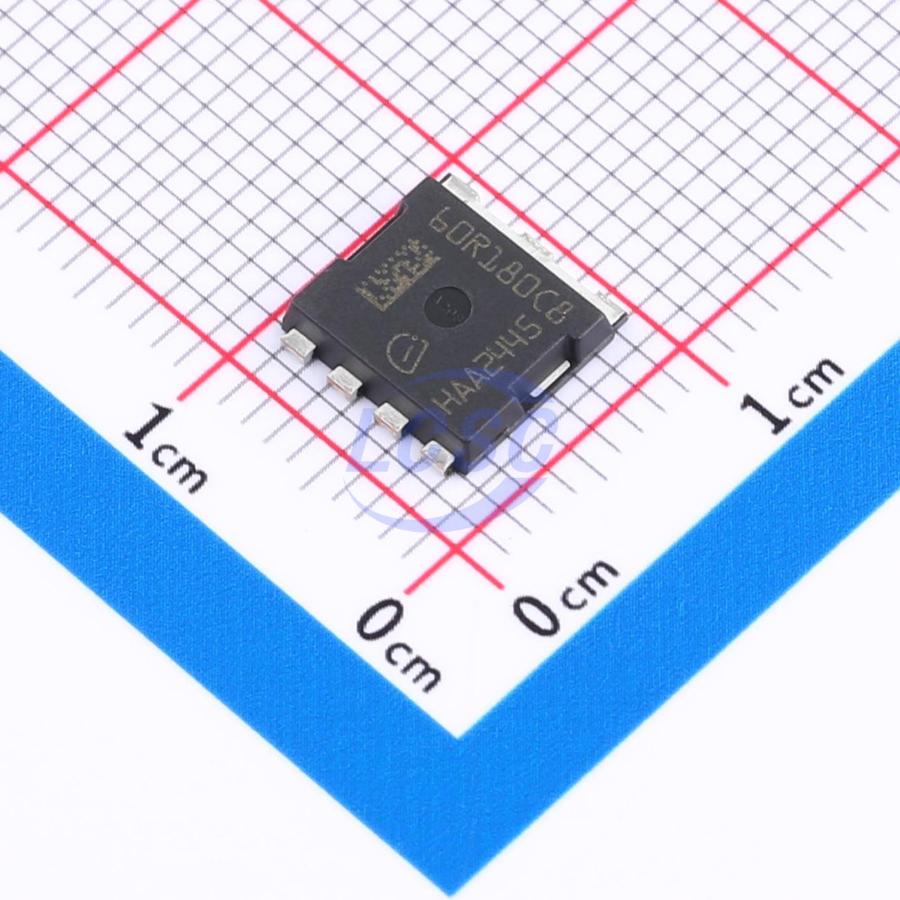

IPTA60R180CM8XTMA1
600V 18A 119W 180mΩ@10V 1 N-channel LHSOF-4 Single FETs, MOSFETs RoHS
LHSOF-4ROHS3 CompliantActive
MOSFET 600V 18A LHSOF-4
- Manufacturer
- Infineon
- Manufacturer part #
- IPTA60R180CM8XTMA1
- Store part #
- C27391715
- Package / case
- LHSOF-4
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
39 in stock
#C27391715
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹409.24 | ₹409.24 |
| 10+ | ₹360.24 | ₹3,602.40 |
| 30+ | ₹329.51 | ₹9,885.30 |
| 100+ | ₹298.12 | ₹29,812.00 |
| 500+ | ₹283.94 | ₹1,41,970.00 |
| 1,000+ | ₹277.71 | ₹2,77,710.00 |
1 × ₹409.24
₹409.24
excl. GST
₹482.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IPTA60R180CM8XTMA1
₹409.24 for 1 + GST
Specifications
- Drain to Source Voltage
- 600V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 11pF
- Current - Continuous Drain(Id)
- 18A
- Ciss-Input Capacitance
- 743pF
- Pd - Power Dissipation
- 119W
- RDS(on)
- 180mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.53 g
Overview
The CoolMOS 8th generation platform is a revolutionary technology for high-voltage power MOSFETs, designed based on the Super Junction (SJ) principle. The 600V CoolMOS CM8 series is the successor to CoolMOS 7. It combines the advantages of fast-switching SJ MOSFETs with outstanding ease of use, including low ringing tendency, a fast body diode (CFD) across the entire product range, excellent hard commutation ruggedness, and superior ESD capability. In addition, the ultra-low switching and conduction losses of CM8 enable higher efficiency in switching applications.
Applications
- Power Supplies and Converters
- Power Factor Correction (PFC) Stage and LLC Resonant Converters
- High-Efficiency Switching Applications
- Servers, Telecommunications, EV Charging, Uninterruptible Power Supplies (UPS)
Key features
- Excellent commutation ruggedness for hard-switching and soft-switching topologies
- Significantly reduced switching and conduction losses
- Ultra-low R<sub>DS(on)</sub>*A delivers best-in-class R<sub>DS(on)</sub> per package
