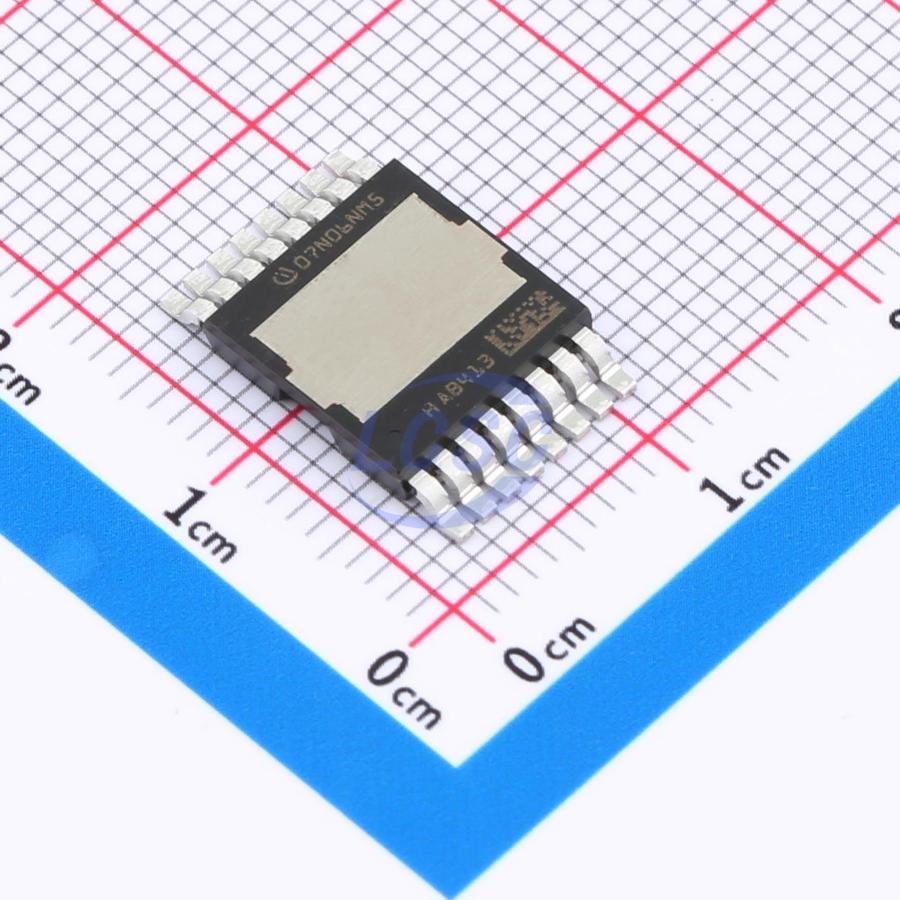

IPTC007N06NM5ATMA1

- The TO-Leadless package offers the industry's lowest on-resistance RDS(ON) and high current-carrying capability. This reduces the number of parallel MOSFETs required in high-power applications and increases power density. Additionally, it saves 60% board space compared to the D2PAK 7-pin package. - Compared to the D2PAK 7-pin package, the TO-Leadless package provides 50% larger soldering contact area, reducing current density and preventing electromigration under high current and high temperature conditions, thereby improving reliability. TO-Leadless is a leadless package that enables optical inspection via its tin-plated trench gate and source contacts. - The TOLG package combines the best features of the TO-Leadless and D2PAK 7-pin packages. It shares the same package footprint and excellent electrical performance as the TOLL package. The advantage of the TOLG package lies in the flexibility offered by its gull-wing leads, which provide superior soldering reliability on Aluminum-IMS. Thanks to this feature, the TOLG package delivers twice the board-level thermal cycling (TCoB) performance required by IPC-9701. - Like the TOLL package, the TOLT package offers high current capacity and a slim profile, with the added benefit of top-side cooling for optimal thermal performance. Bottom-cooled packages such as TOLL or D2PAK dissipate heat through the PCB to the heatsink, resulting in higher power losses. The TOLT package uses top-side cooling with the drain exposed on the package surface, enabling direct heat dissipation to the heatsink — improving RthJA by 20% and RthJC by 50% compared to the TOLL package. To achieve the same current-carrying capability as bottom-cooled packages, the TOLT package enables significant reduction in heatsink size, lowering overall system cost.

Applications

• Power switch
• DC/DC converter

Key features

• Drain-source voltage V_DS: -40V
• Drain current I_D (V_GS = -10V): -54A
• On-resistance R_DS(ON) (V_GS = -10V): < 7 mΩ
• On-resistance R_DS(ON) (V_GS = -4.5V): < 9.5 mΩ
• 100% avalanche tested
• RoHS compliant
