MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
InfineonDatasheet (PDF)

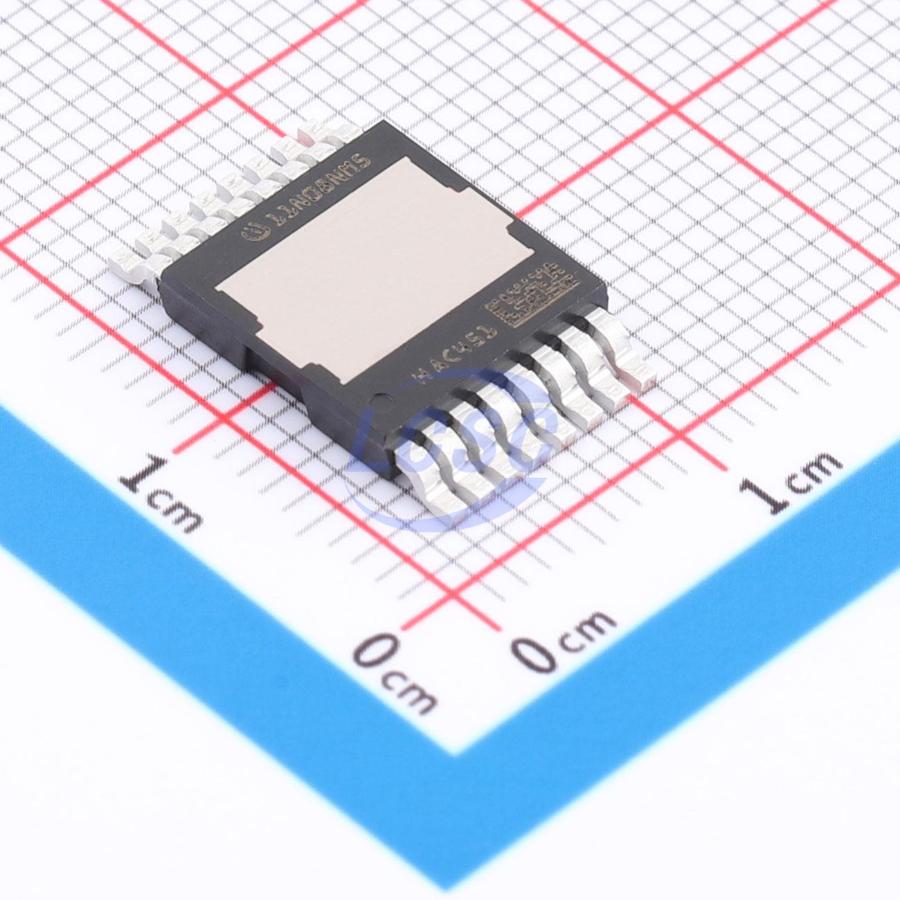

IPTC011N08NM5ATMA1
80V 408A 375W 1.7mΩ@6V 1 N-channel N-Channel HDSOP-16-2 Single FETs, MOSFETs RoHS
HDSOP-16-2ROHS3 CompliantActive
MOSFET N-CH 80V 408A HDSOP-16-2
- Manufacturer
- Infineon
- Manufacturer part #
- IPTC011N08NM5ATMA1
- Store part #
- C20191623
- Package / case
- HDSOP-16-2
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C20191623
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹751.85 | ₹751.85 |
| 10+ | ₹734.25 | ₹7,342.50 |
| 30+ | ₹722.31 | ₹21,669.30 |
| 100+ | ₹710.57 | ₹71,057.00 |
1 × ₹751.85
₹751.85
excl. GST
₹887.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
IPTC011N08NM5ATMA1
₹751.85 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Output Capacitance(Coss)
- 2.6nF
- Current - Continuous Drain(Id)
- 408A
- Ciss-Input Capacitance
- 17nF
- Pd - Power Dissipation
- 375W
- Reverse Transfer Capacitance (Crss)
- 150pF
- RDS(on)
- 1.7mΩ@6V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 223nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.77 g
Overview
Key features
- N-channel
- Ultra-low on-resistance RDS(on)
- Excellent thermal resistance performance
- 100% avalanche tested
- Lead-free lead finish; RoHS compliant
- Halogen-free per IEC61249-2-21
