VBsemi ElecDatasheet (PDF)

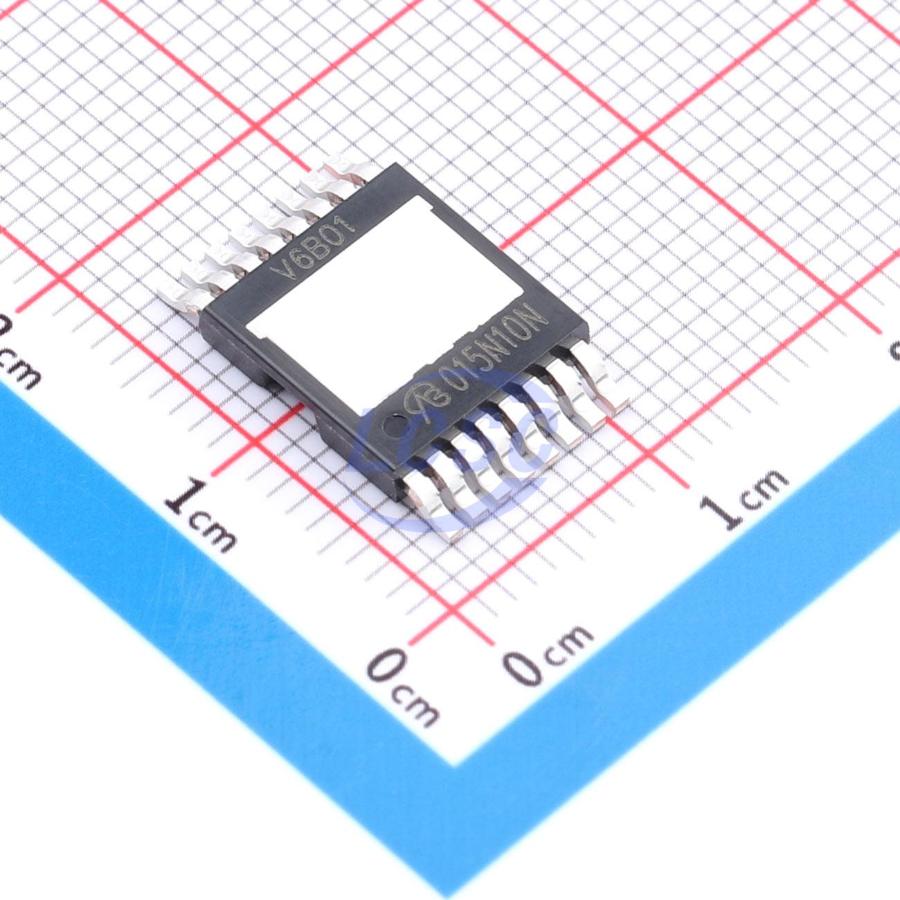

IPTC015N10NM5ATMA1-VB
100V 415A 455W 1.2mΩ@10V 1 N-channel N-Channel TOLL-16 Single FETs, MOSFETs
TOLL-16RoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IPTC015N10NM5ATMA1-VB
- Store part #
- C52742249
- Package / case
- TOLL-16
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C52742249
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹842.91 | ₹842.91 |
| 10+ | ₹740.17 | ₹7,401.70 |
| 30+ | ₹582.99 | ₹17,489.70 |
| 100+ | ₹521.17 | ₹52,117.00 |
| 500+ | ₹492.65 | ₹2,46,325.00 |
| 1,200+ | ₹479.80 | ₹5,75,760.00 |
1 × ₹842.91
₹842.91
excl. GST
₹994.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,200 per reel
IPTC015N10NM5ATMA1-VB
₹842.91 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 415A
- Output Capacitance(Coss)
- 3.246nF
- Ciss-Input Capacitance
- 11.5nF
- Pd - Power Dissipation
- 455W
- Reverse Transfer Capacitance (Crss)
- 18pF
- RDS(on)
- 1.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 130nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,200 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.52 g
Overview
Applications
- Power Supply
- Uninterruptible Power Supply
- AC/DC Switching Power Supply
- Lighting
- Synchronous Rectification
- DC/DC Converter
- Motor Drive Switch
- DC/AC Inverter
- Solar Micro-Inverter
- Class D Audio Amplifier
Key features
- SGT technology power MOSFET
- Maximum junction temperature 175°C
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| DMTH10H1M5STTW-VB#C52742243VBsemi Elec · TOLL-16 | VBsemi Elec | TOLL-16 | 5 | ₹842.91 · 5 in stock | View | |
| DMTH10H1M5STTWQ-VB#C52742244VBsemi Elec · TOLL-16 | VBsemi Elec | TOLL-16 | 5 | ₹842.91 · 5 in stock | View | |
| DMTH81M2STTW-VB#C52742245VBsemi Elec · TOLL-16 | VBsemi Elec | TOLL-16 | 5 | ₹842.91 · 5 in stock | View | |
| DMTH81M2STTWQ-VB#C52742246VBsemi Elec · TOLL-16 | VBsemi Elec | TOLL-16 | 5 | ₹842.91 · 5 in stock | View | |
| IAUS260N10S5N019TATMA1-VB#C52742247VBsemi Elec · TOLL-16 | VBsemi Elec | TOLL-16 | 5 | ₹842.91 · 5 in stock | View | |
