InfineonDatasheet (PDF)

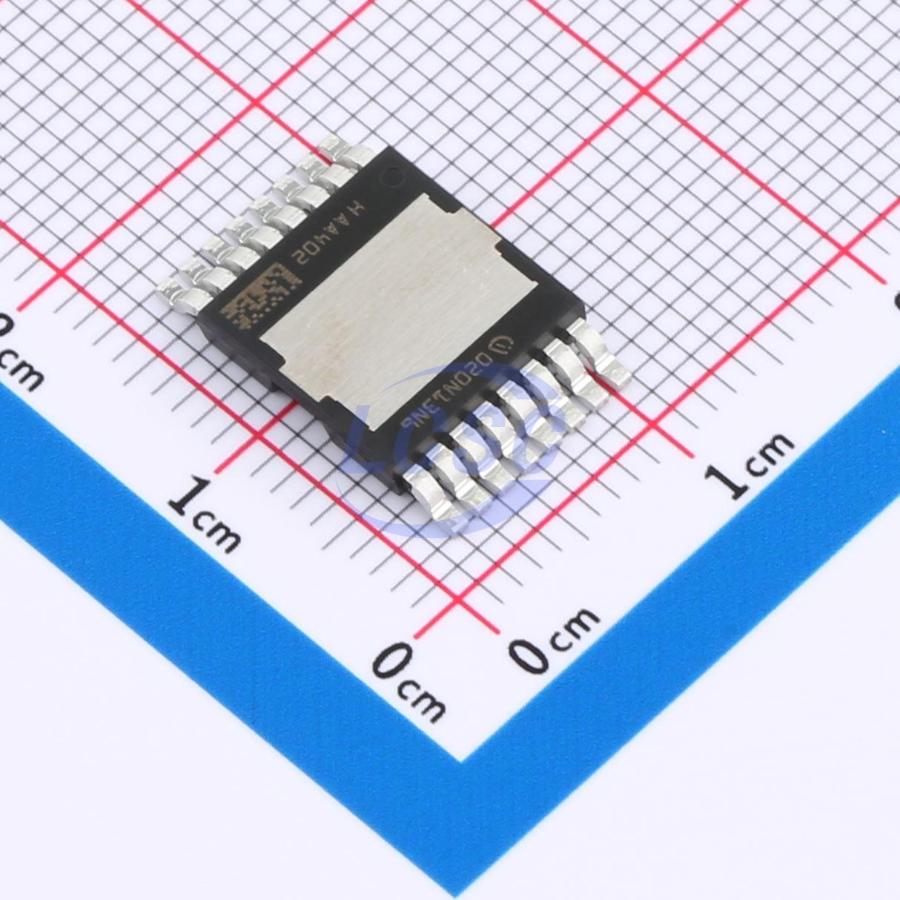

IPTC020N13NM6ATMA1
N-Channel 135V 297A 395W Surface Mount HDSOP-16
HDSOP-16ROHS3 CompliantActive
MOSFET N-CH 135V 297A HDSOP-16
- Manufacturer
- Infineon
- Manufacturer part #
- IPTC020N13NM6ATMA1
- Store part #
- C22408422
- Package / case
- HDSOP-16
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C22408422
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,460.08 | ₹1,460.08 |
| 10+ | ₹1,438.80 | ₹14,388.00 |
| 30+ | ₹1,424.39 | ₹42,731.70 |
| 100+ | ₹1,410.21 | ₹1,41,021.00 |
1 × ₹1,460.08
₹1,460.08
excl. GST
₹1,722.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
IPTC020N13NM6ATMA1
₹1,460.08 for 1 + GST
Specifications
- Drain to Source Voltage
- 135V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 297A
- Output Capacitance(Coss)
- 2.9nF
- Ciss-Input Capacitance
- 14nF
- Pd - Power Dissipation
- 395W
- Reverse Transfer Capacitance (Crss)
- 49pF
- RDS(on)
- 2.3mΩ@8V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 207nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.72 g
Overview
Key features
- N-channel, normal level
- Very low on-resistance Rps(on)
- Excellent gate charge × RDS(on) product (FOM)
- Very low reverse recovery charge (Qrr)
- 100% avalanche tested
- 175°C operating temperature
- Optimized for motor drives and battery powered applications
- Pb-free lead plating; RoHS compliant
- Halogen-free according to IEC61249-2-21
- MSL 1 classified according to J-STD-020
