VBsemi ElecDatasheet (PDF)

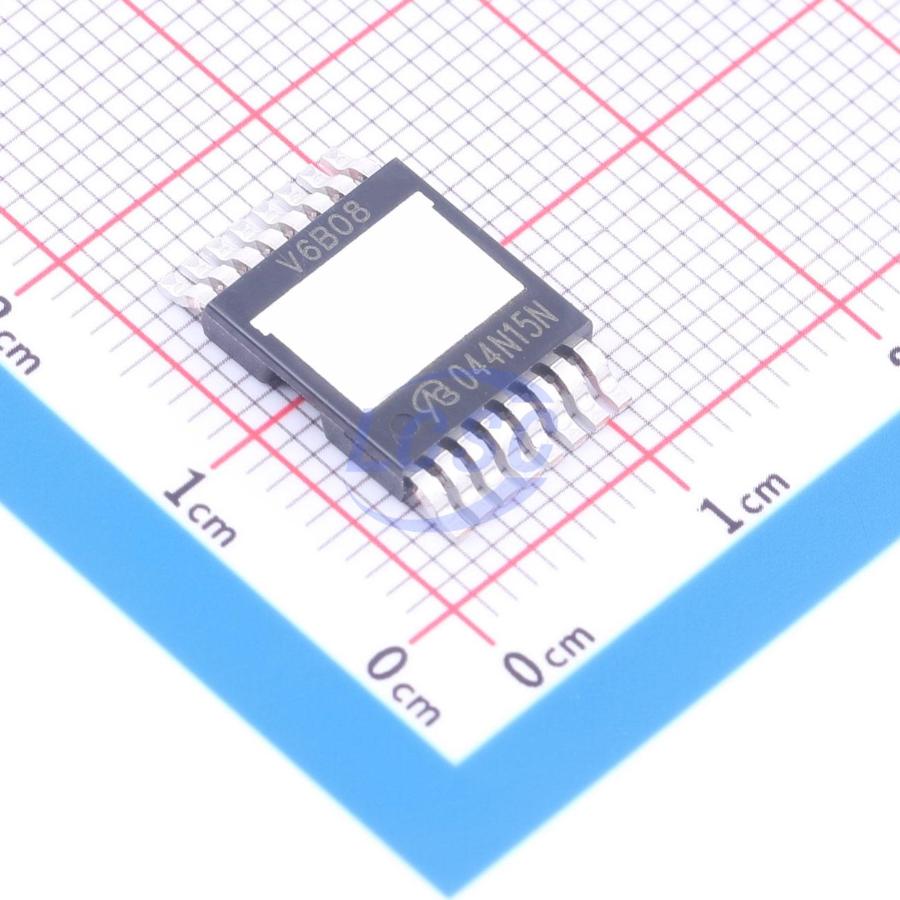

IPTC044N15NM5ATMA1-VB
150V 150A 375W 6.2mΩ@10V 1 N-channel N-Channel TOLL-16 Single FETs, MOSFETs
TOLL-16RoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IPTC044N15NM5ATMA1-VB
- Store part #
- C52742240
- Package / case
- TOLL-16
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C52742240
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹415.08 | ₹415.08 |
| 10+ | ₹405.71 | ₹4,057.10 |
| 30+ | ₹399.61 | ₹11,988.30 |
| 100+ | ₹393.50 | ₹39,350.00 |
1 × ₹415.08
₹415.08
excl. GST
₹489.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,200 per reel
IPTC044N15NM5ATMA1-VB
₹415.08 for 1 + GST
Specifications
- Drain to Source Voltage
- 150V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 150A
- Output Capacitance(Coss)
- 846pF
- Ciss-Input Capacitance
- 5.5nF
- Pd - Power Dissipation
- 375W
- Reverse Transfer Capacitance (Crss)
- 32pF
- RDS(on)
- 6.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 100nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,200 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.52 g
Overview
Applications
- Power Supply
- Uninterruptible Power Supply
- AC/DC Switching Power Supply
- Lighting
- Synchronous Rectification
- DC-DC Converter
- Motor Drive Switch
- DC-AC Inverter
- Solar Micro-Inverter
- Class D Audio Amplifier
Key features
- SGT technology power MOSFET
- Maximum junction temperature 175°C
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| VBGQTA11505#C52110148VBsemi Elec · TOLL-16 | VBsemi Elec | TOLL-16 | 5 | ₹622.39 · 5 in stock | View | |
 | IPTC034N15NM6ATMA1-VB#C52742234VBsemi Elec · TOLL-16 | VBsemi Elec | TOLL-16 | 5 | ₹411.43 · 5 in stock | View |
 | IPTC039N15NM5ATMA1-VB#C52742235VBsemi Elec · TOLL-16 | VBsemi Elec | TOLL-16 | 5 | ₹411.43 · 5 in stock | View |
 | IAUTN15S6N025TATMA1-VB#C52742236VBsemi Elec · TOLL-16 | VBsemi Elec | TOLL-16 | 5 | ₹411.43 · 5 in stock | View |
 | IAUTN15S6N038TATMA1-VB#C52742237VBsemi Elec · TOLL-16 | VBsemi Elec | TOLL-16 | 5 | ₹411.43 · 5 in stock | View |
