InfineonDatasheet (PDF)

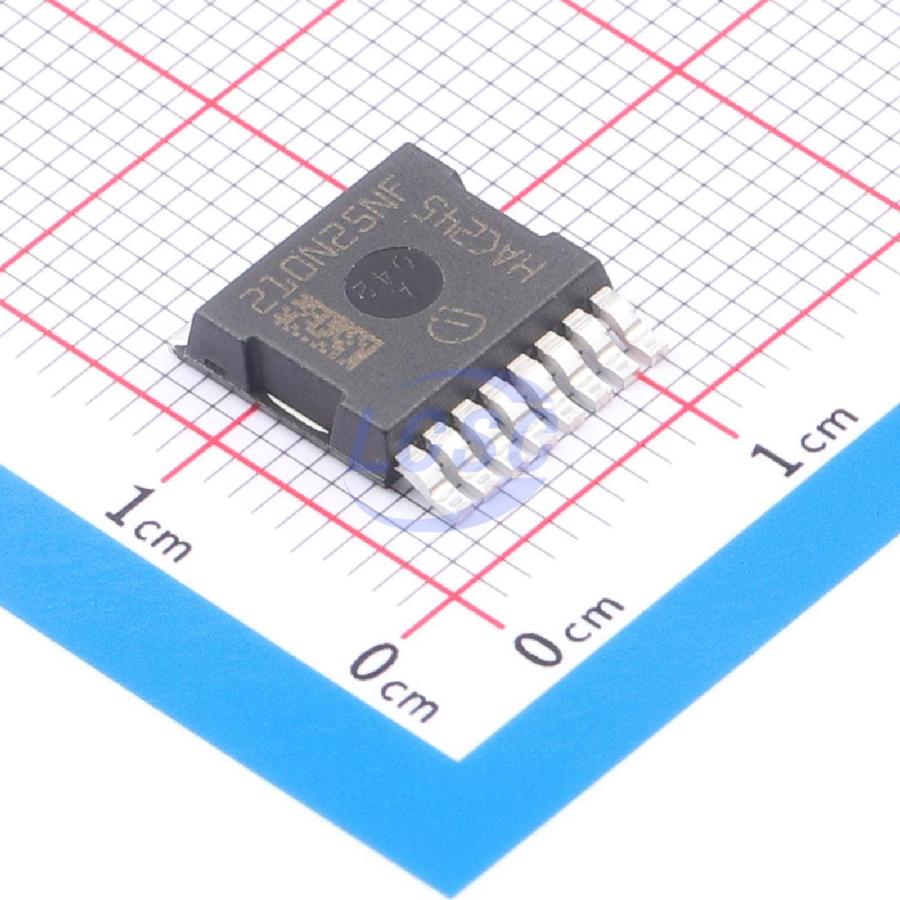

IPTG210N25NM3FDATMA1
N-Channel 250V 77A 375W HSOG-8
HSOG-8ROHS3 CompliantDiscontinued
MOSFET N-CH 250V 77A HSOG-8
- Manufacturer
- Infineon
- Manufacturer part #
- IPTG210N25NM3FDATMA1
- Store part #
- C3278563
- Package / case
- HSOG-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C3278563
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,681.03 | ₹1,681.03 |
| 10+ | ₹1,521.77 | ₹15,217.70 |
| 30+ | ₹1,424.62 | ₹42,738.60 |
| 100+ | ₹1,343.36 | ₹1,34,336.00 |
1 × ₹1,681.03
₹1,681.03
excl. GST
₹1,983.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
IPTG210N25NM3FDATMA1
₹1,681.03 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 250V
- Output Capacitance(Coss)
- 390pF
- Current - Continuous Drain(Id)
- 77A
- Ciss-Input Capacitance
- 7nF
- Pd - Power Dissipation
- 375W
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 21mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 81nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.982 g
Overview
Key features
- N-channel, normal level
- Very low on-resistance RDS(on)
- Fast diode (FD) with reduced Qrr
- 175°C operating temperature
- Pb-free lead plating; RoHS compliant
- Halogen-free according to IEC61249-2-21
- Optimized for hard commutation ruggedness
