InfineonDatasheet (PDF)

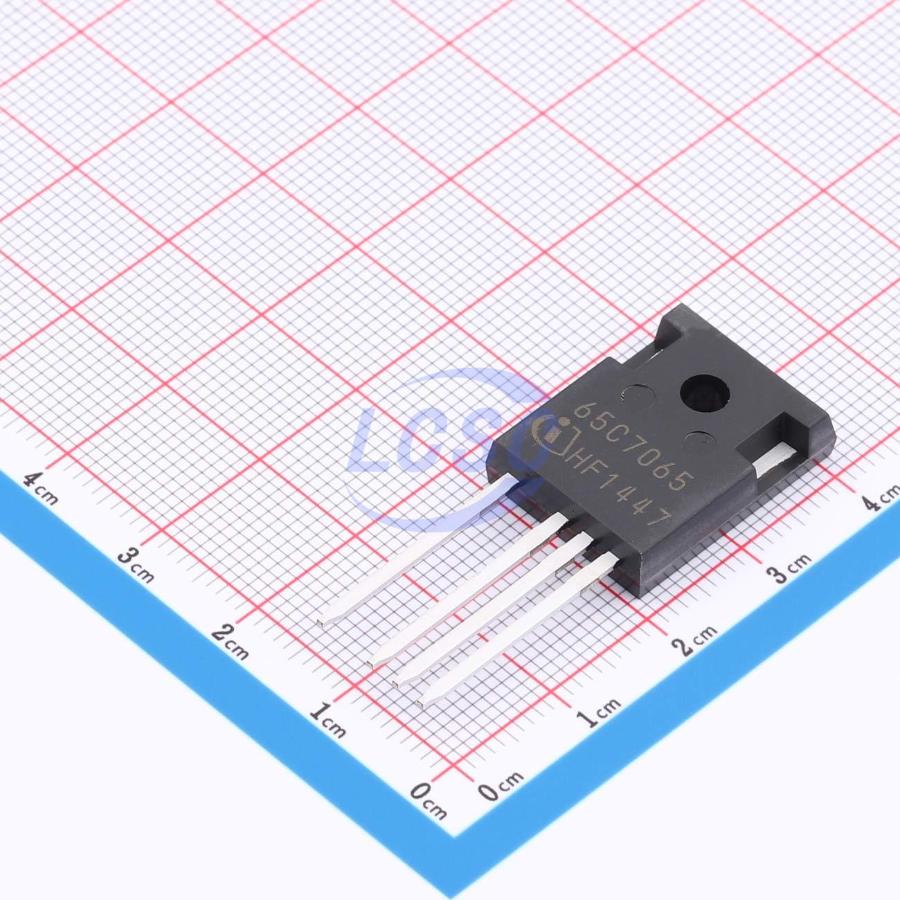

IPZ65R065C7
171W 650V 21A 65mΩ@10V 1 N-channel N-Channel TO-247-4 Single FETs, MOSFETs RoHS
TO-247-4ROHS3 CompliantActive
MOSFET N-CH 650V 21A TO-247-4
- Manufacturer
- Infineon
- Manufacturer part #
- IPZ65R065C7
- Store part #
- C537518
- Package / case
- TO-247-4
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C537518
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,689.80 | ₹1,689.80 |
| 10+ | ₹1,662.20 | ₹16,622.00 |
| 30+ | ₹1,643.73 | ₹49,311.90 |
| 100+ | ₹1,625.27 | ₹1,62,527.00 |
1 × ₹1,689.80
₹1,689.80
excl. GST
₹1,993.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 240 per tube
IPZ65R065C7
₹1,689.80 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 48pF
- Ciss-Input Capacitance
- 3.02nF
- Pd - Power Dissipation
- 171W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 21A
- Reverse Transfer Capacitance (Crss)
- 1.11nF
- RDS(on)
- 65mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 64nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 240 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 13.7 g
Overview
CoolMOS™ is a revolutionary technology for high-voltage power MOSFETs, designed based on the Super Junction (SJ) principle. The CoolMOS™ C7 series combines the experience of a leading SJ MOSFET supplier with best-in-class innovation. This product portfolio delivers all the advantages of fast-switching SJ MOSFETs, offering higher efficiency, lower gate charge, ease of implementation, and outstanding reliability.
Applications
- PFC stages and hard-switching PWM stages in applications such as computers, servers, telecommunications, UPS, and solar energy.
Key features
- Enhanced MOSFET dv/dt robustness
- Higher efficiency with best-in-class figure of merit RDS(on) * Eoss and RDS(on) * Qg
- Best-in-class RDS(on)/package
- Easy to use/drive with better gate control via dedicated source pin
- Lead-free plating, halogen-free molding compound
- Qualified for industrial applications per JEDEC (J-STD20 and JESD22) standards
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| IPZ65R045C7#C537517Infineon · TO-247-4 | Infineon | TO-247-4 | 2 | ₹1,345.07 · 2 in stock | View | |
 | IPZA60R037P7#C537521Infineon · TO-247-4 | Infineon | TO-247-4 | 6 | ₹2,196.67 · 6 in stock | View |
 | IPZ60R017C7#C537510Infineon · TO-247-4 | Infineon | TO-247-4 | 1 | ₹2,931.27 · 1 in stock | View |
 | IPZA65R040CM8XKSA1#C47146896Infineon · TO-247-4 | Infineon | TO-247-4 | 12 | ₹2,173.20 · 12 in stock | View |
 | SCT4026DRHRC15#C6472770ROHM · TO-247-4L | ROHM | TO-247-4L | 3 | ₹3,416.87 · 3 in stock | View |
