InfineonDatasheet (PDF)

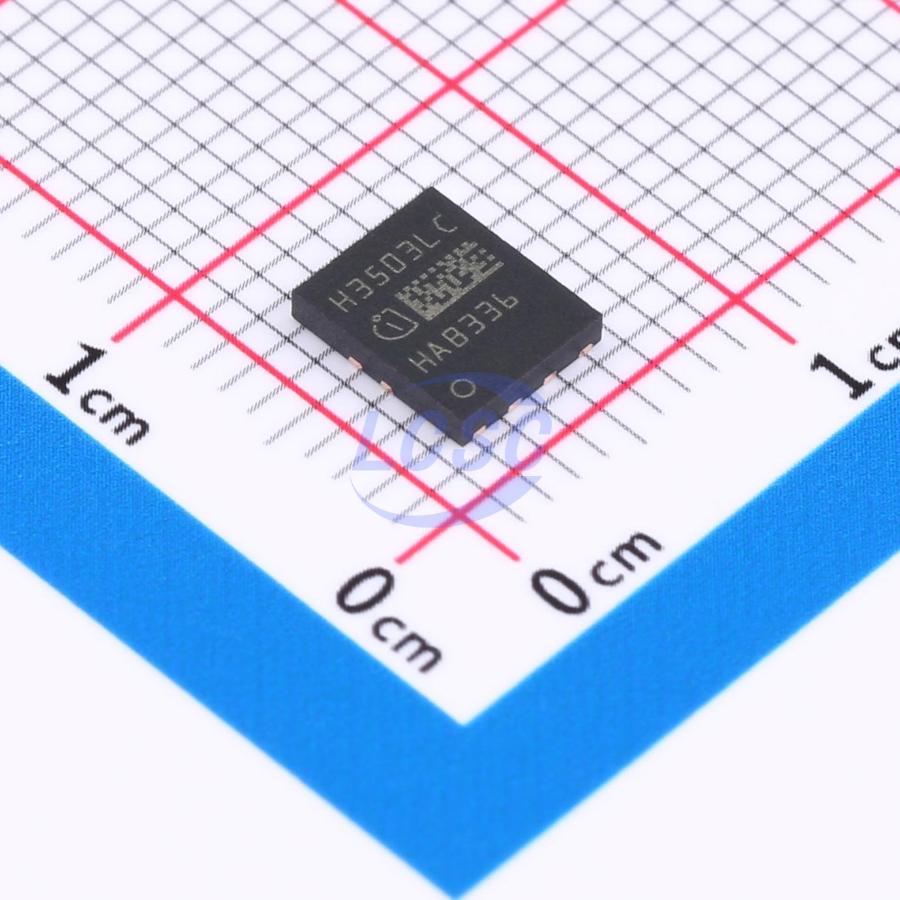

IQDH35N03LM5CGATMA1
N-Channel 30V 700A WHTFN-9
WHTFN-9ROHS3 CompliantActive
MOSFET N-CH 30V 700A WHTFN-9
- Manufacturer
- Infineon
- Manufacturer part #
- IQDH35N03LM5CGATMA1
- Store part #
- C20191641
- Package / case
- WHTFN-9
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27 in stock
#C20191641
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹805.24 | ₹805.24 |
| 10+ | ₹714.21 | ₹7,142.10 |
| 30+ | ₹660.10 | ₹19,803.00 |
| 100+ | ₹605.35 | ₹60,535.00 |
| 500+ | ₹580.15 | ₹2,90,075.00 |
| 1,000+ | ₹568.85 | ₹5,68,850.00 |
1 × ₹805.24
₹805.24
excl. GST
₹950.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IQDH35N03LM5CGATMA1
₹805.24 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 4.3nF
- Current - Continuous Drain(Id)
- 700A
- Ciss-Input Capacitance
- 18nF
- Pd - Power Dissipation
- 278W
- Reverse Transfer Capacitance (Crss)
- 470pF
- RDS(on)
- 0.35mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 197nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.375 g
Overview
Key features
- N-channel, logic level
- Very low on-resistance RDS(on)
- Superior thermal resistance
- 100% avalanche tested
- Pb-free lead plating; RoHS compliant
- Halogen-free according to IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IQDH35N03LM5CGSCATMA1#C41651358Infineon · PG-WHTFN-9 | Infineon | PG-WHTFN-9 | 37 | ₹703.78 · 37 in stock | View |
 | IQDH45N04LM6CGATMA1#C20191642Infineon · WHTFN-9 | Infineon | WHTFN-9 | On request | ₹816.77 · 0 in stock | View |
