InfineonDatasheet (PDF)

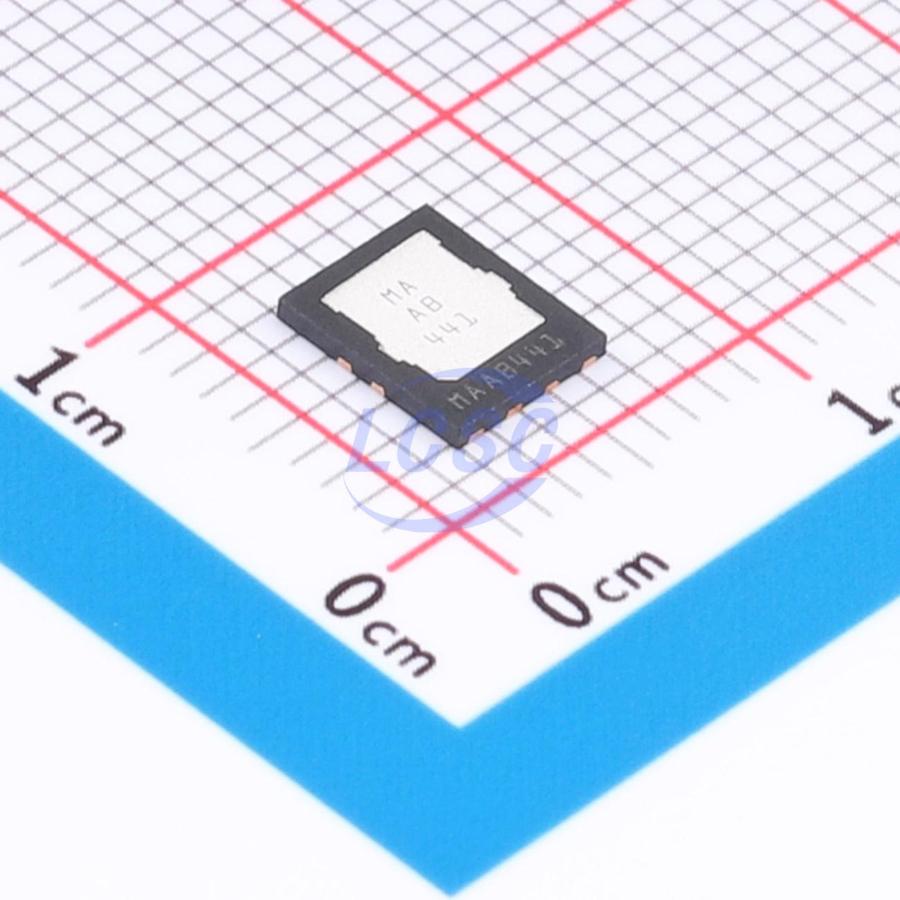

IQDH45N04LM6CGSCATMA1
40V 611A 333W 1 N-channel N-Channel PG-WHTFN-9 Single FETs, MOSFETs RoHS
PG-WHTFN-9ROHS3 CompliantActive
MOSFET N-CH 40V 611A PG-WHTFN-9
- Manufacturer
- Infineon
- Manufacturer part #
- IQDH45N04LM6CGSCATMA1
- Store part #
- C41485829
- Package / case
- PG-WHTFN-9
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C41485829
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,028.26 | ₹1,028.26 |
| 10+ | ₹910.65 | ₹9,106.50 |
| 30+ | ₹839.02 | ₹25,170.60 |
| 100+ | ₹778.90 | ₹77,890.00 |
1 × ₹1,028.26
₹1,028.26
excl. GST
₹1,213.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IQDH45N04LM6CGSCATMA1
₹1,028.26 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 611A
- Pd - Power Dissipation
- 333W
- RDS(on)
- 0.4mΩ@10V;0.5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 129nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
MLS65R190F is a silicon N-channel enhancement-mode MOSFET fabricated using advanced super-junction technology, delivering reduced conduction losses and improved switching performance. This transistor is suitable for switched-mode power supplies, high-speed switching, and general-purpose applications.
Applications
- PFC power stage
- Switching applications
- Adapters
- Motor control
- DC-DC converters
Key features
- N-channel, logic level
- Ultra-low on-resistance R DS(on)
- Excellent thermal resistance performance
- Dual-side heat dissipation optimized design
- 100% avalanche tested
- Lead-free lead finish; RoHS compliant
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IQD005N04NM6CGSCATMA1#C41613338Infineon · WHTFN-9 | Infineon | WHTFN-9 | 2 | ₹460.99 · 2 in stock | View |
 | IQDH45N04LM6CGATMA1#C20191642Infineon · WHTFN-9 | Infineon | WHTFN-9 | On request | ₹816.77 · 0 in stock | View |
