InfineonDatasheet (PDF)

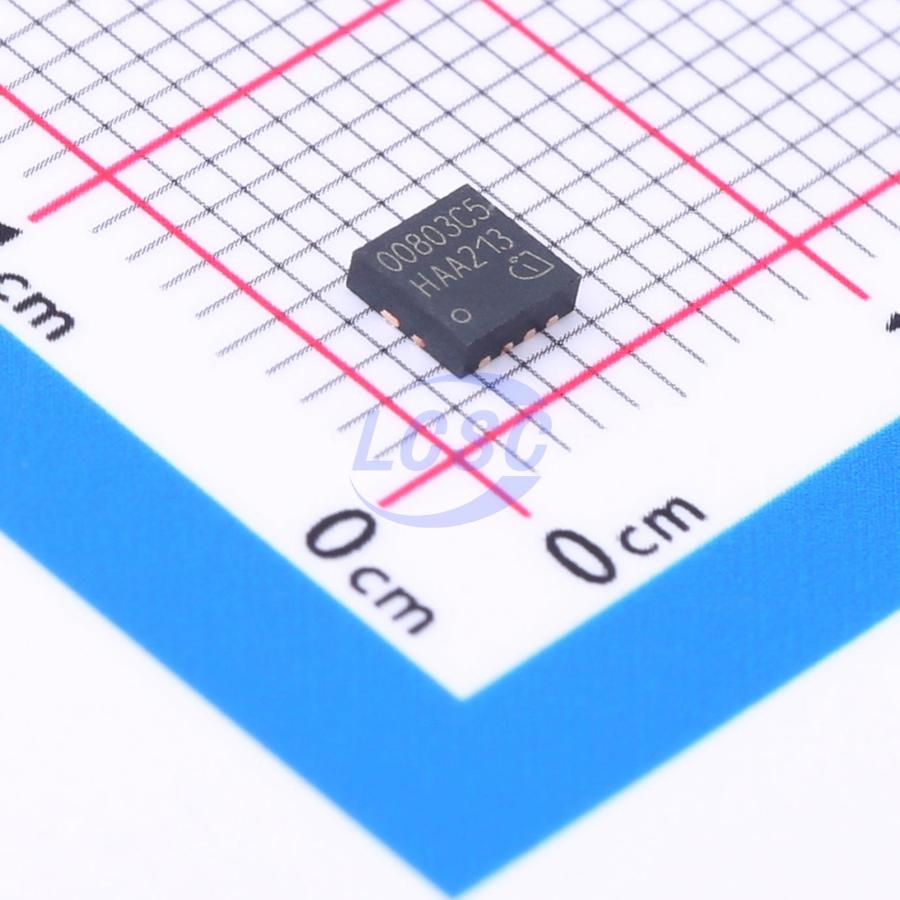

IQE008N03LM5CGATMA1
N-Channel 30V 253A 89W Surface Mount TTFN-9-1
TTFN-9-1ROHS3 CompliantActive
MOSFET N-CH 30V 253A TTFN-9-1
- Manufacturer
- Infineon
- Manufacturer part #
- IQE008N03LM5CGATMA1
- Store part #
- C3289351
- Package / case
- TTFN-9-1
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
59 in stock
#C3289351
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹284.47 | ₹284.47 |
| 10+ | ₹240.67 | ₹2,406.70 |
| 30+ | ₹213.35 | ₹6,400.50 |
| 100+ | ₹185.38 | ₹18,538.00 |
| 500+ | ₹172.59 | ₹86,295.00 |
| 1,000+ | ₹167.17 | ₹1,67,170.00 |
1 × ₹284.47
₹284.47
excl. GST
₹335.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IQE008N03LM5CGATMA1
₹284.47 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 1.4nF
- Current - Continuous Drain(Id)
- 253A
- Ciss-Input Capacitance
- 5.7nF
- Pd - Power Dissipation
- 89W
- Reverse Transfer Capacitance (Crss)
- 190pF
- RDS(on)
- 0.65mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 30nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.8 g
Overview
This device is designed to improve the efficiency of DC/DC converters. Utilizing a new MOSFET manufacturing technology, the individual components of gate charge and capacitance have been optimized to reduce switching losses. Low gate resistance and ultra-low Miller charge enable excellent performance in both adaptive and fixed dead-time gate drive circuits. At the same time, an extremely low drain-to-source on-resistance (rDS(on)) is maintained, making this a highly versatile device.
Applications
- High-efficiency DC-DC converter
- Notebook CPU power supply
- Multi-purpose point-of-load
Key features
- Optimized for high performance SMPS, e.g. sync.rec.
- Very low on- resistance RDS(on) @ VDS = 4.5 V
- 100% avalanche tested
- Superior thermal resistance
- N- channel
- Pb- free lead plating; RoHS compliant
- Halogen- free according to IEC61249- 2- 21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IQDH88N06LM5CGATMA1#C19674127Infineon · TTFN-9 | Infineon | TTFN-9 | 9 | ₹748.38 · 9 in stock | View |
 | IQD005N04NM6CGATMA1#C20191636Infineon · TTFN-9 | Infineon | TTFN-9 | 95 | ₹726.67 · 95 in stock | View |
