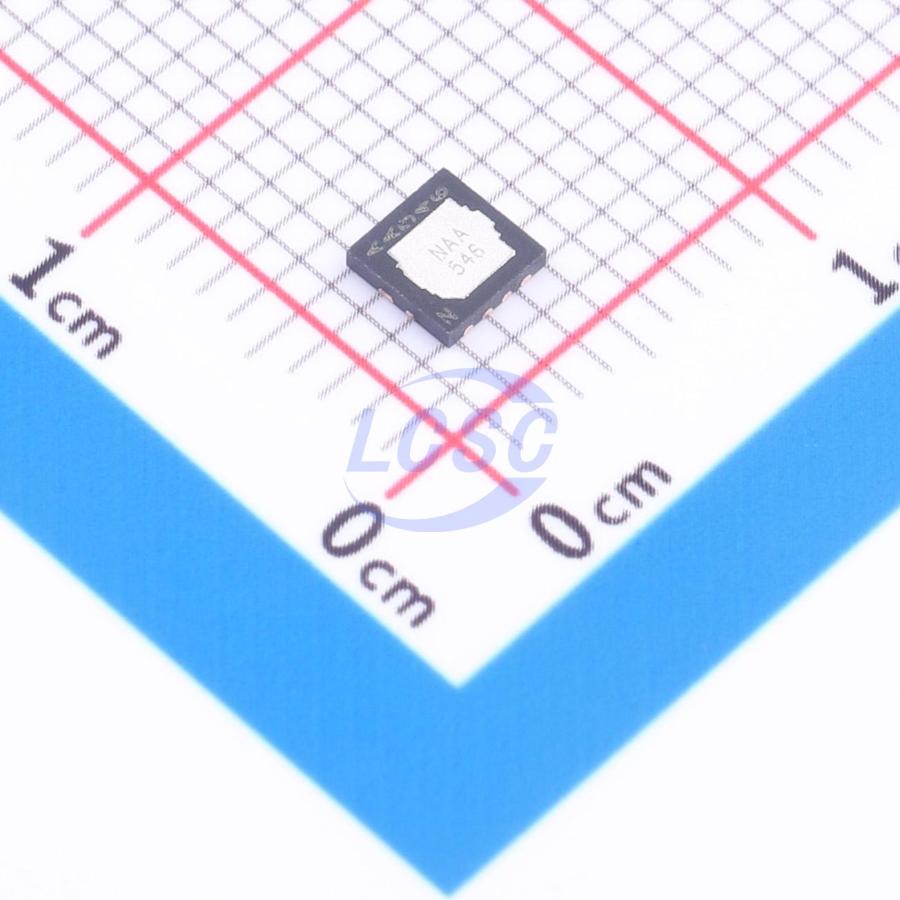

IQE031N08LM6CGSCATMA1
80V 127A 125W 2.8mΩ@10V 1 N-channel N-Channel WHTFN-9 Single FETs, MOSFETs
WHTFN-9RoHSActive
- Manufacturer
- Infineon
- Manufacturer part #
- IQE031N08LM6CGSCATMA1
- Store part #
- C50397433
- Package / case
- WHTFN-9
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C50397433
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹488.70 | ₹488.70 |
| 10+ | ₹417.59 | ₹4,175.90 |
| 30+ | ₹375.53 | ₹11,265.90 |
| 100+ | ₹332.81 | ₹33,281.00 |
| 500+ | ₹313.30 | ₹1,56,650.00 |
| 1,000+ | ₹304.41 | ₹3,04,410.00 |
1 × ₹488.70
₹488.70
excl. GST
₹576.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 6,000 per reel
IQE031N08LM6CGSCATMA1
₹488.70 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 127A
- Output Capacitance(Coss)
- 660pF
- Ciss-Input Capacitance
- 3.5nF
- Pd - Power Dissipation
- 125W
- Reverse Transfer Capacitance (Crss)
- 35pF
- RDS(on)
- 2.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 33nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 6,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.625 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| IQD063N15NM5CGSCATMA1#C41666146Infineon · PG-WHTFN-9 | Infineon | PG-WHTFN-9 | 8 | ₹977.11 · 8 in stock | View | |
 | IQD016N08NM5CGATMA1#C20191638Infineon · WHTFN-9 | Infineon | WHTFN-9 | 4 | ₹741.42 · 4 in stock | View |
 | IQD020N10NM5CGSCATMA1#C41918733Infineon · PG-WHTFN-9 | Infineon | PG-WHTFN-9 | 6 | ₹1,041.39 · 6 in stock | View |
 | IQD016N08NM5CGSCATMA1#C41511470Infineon · WHTFN-9 | Infineon | WHTFN-9 | On request | ₹775.33 · 0 in stock | View |
