InfineonDatasheet (PDF)

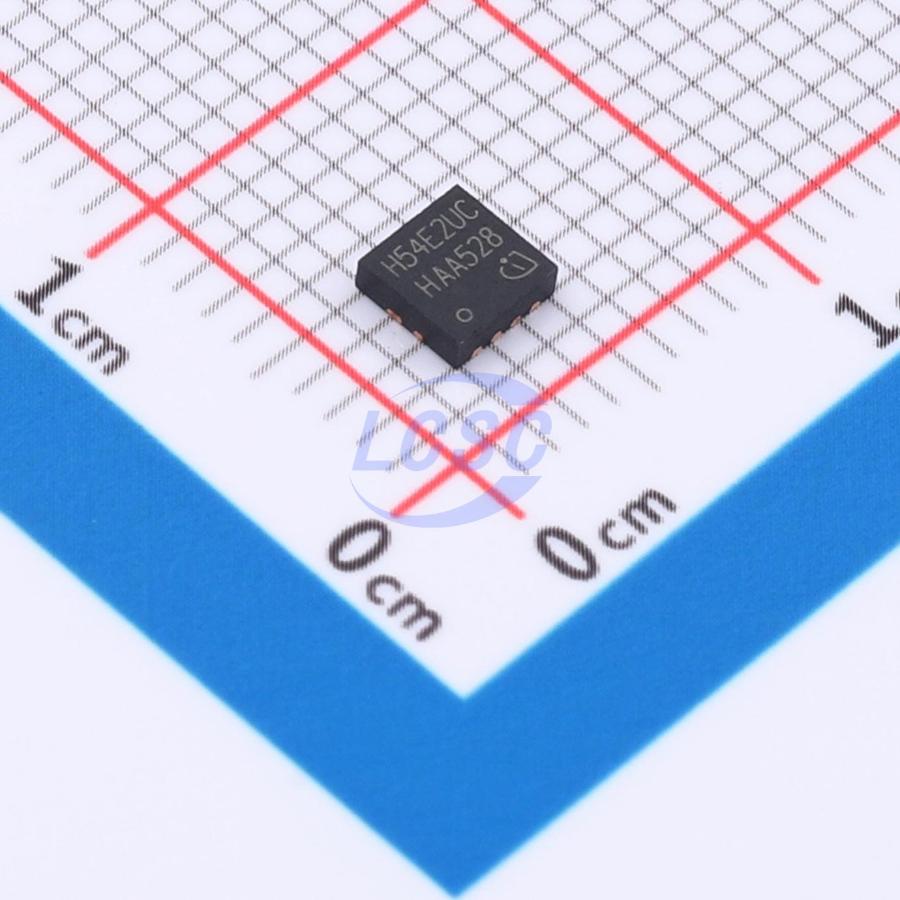

IQEH54NE2LM7UCGATMA1
150W 25V 406A 0.47mΩ@10V 1 N-channel N-Channel TFN-9 Single FETs, MOSFETs
TFN-9RoHSActive
- Manufacturer
- Infineon
- Manufacturer part #
- IQEH54NE2LM7UCGATMA1
- Store part #
- C50344260
- Package / case
- TFN-9
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C50344260
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹750.56 | ₹750.56 |
| 10+ | ₹740.68 | ₹7,406.80 |
| 30+ | ₹734.01 | ₹22,020.30 |
| 100+ | ₹727.36 | ₹72,736.00 |
1 × ₹750.56
₹750.56
excl. GST
₹885.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IQEH54NE2LM7UCGATMA1
₹750.56 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.8nF
- Ciss-Input Capacitance
- 4.7nF
- Pd - Power Dissipation
- 150W
- Drain to Source Voltage
- 25V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 406A
- Reverse Transfer Capacitance (Crss)
- 81pF
- RDS(on)
- 0.47mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 57nC
- Vgs
- ±16V
- Gate Threshold Voltage (Vgs(th))
- 1.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.48 g
Overview
Key features
- N-channel, logic level
- Optimized for hard-switching topologies
- Optimized for best FOM<sub>oss</sub>
- Excellent Miller ratio for dv/dt ruggedness
- Ultra-low on-resistance R<sub>DS(on)</sub>
- Superior thermal resistance
- 100% avalanche tested
- Lead-free lead finish; RoHS compliant
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IQD005N04NM6CGATMA1#C20191636Infineon · TTFN-9 | Infineon | TTFN-9 | 95 | ₹726.67 · 95 in stock | View |
 | IQDH88N06LM5CGATMA1#C19674127Infineon · TTFN-9 | Infineon | TTFN-9 | 9 | ₹748.38 · 9 in stock | View |
 | IQEH50NE2LM7ZCGATMA1#C50344259Infineon · TFN-9 | Infineon | TFN-9 | On request | ₹671.69 · 0 in stock | View |
