InfineonDatasheet (PDF)

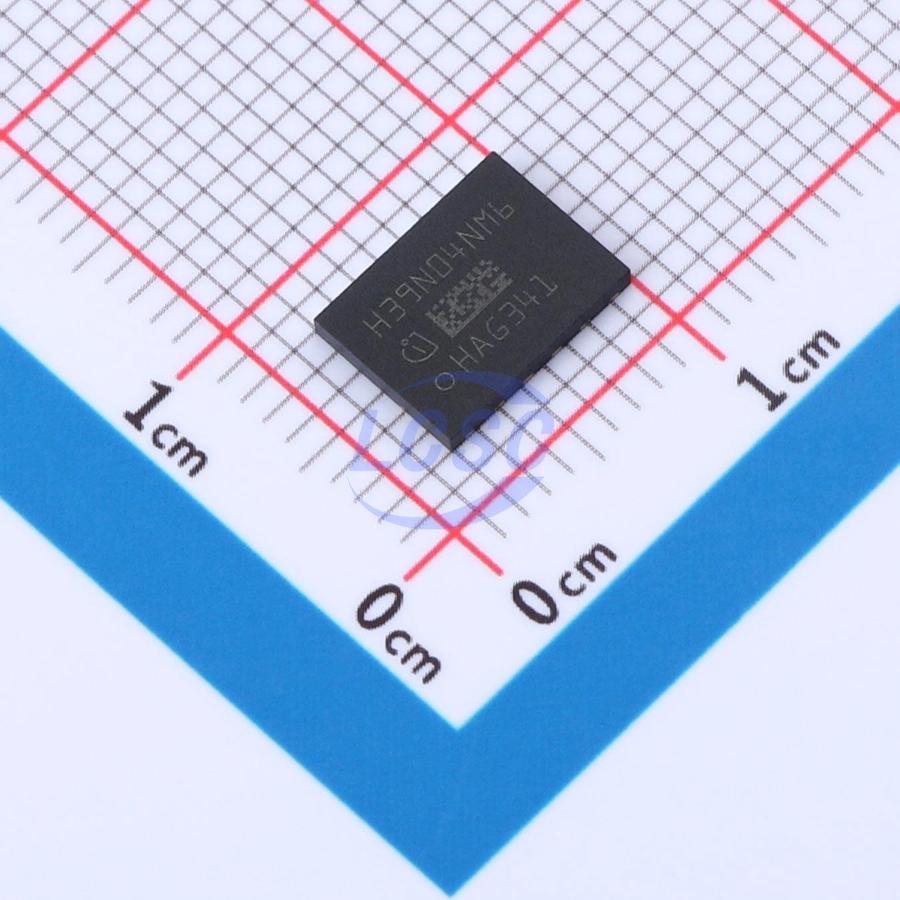

IQFH39N04NM6ATMA1
273W 40V 600A 0.27mΩ@10V 1 N-channel N-Channel TSON-12 Single FETs, MOSFETs RoHS
TSON-12ROHS CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IQFH39N04NM6ATMA1
- Store part #
- C28858786
- Package / case
- TSON-12
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C28858786
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,707.90 | ₹1,707.90 |
| 10+ | ₹1,685.12 | ₹16,851.20 |
| 30+ | ₹1,670.08 | ₹50,102.40 |
| 100+ | ₹1,655.03 | ₹1,65,503.00 |
1 × ₹1,707.90
₹1,707.90
excl. GST
₹2,015.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IQFH39N04NM6ATMA1
₹1,707.90 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 4.09nF
- Ciss-Input Capacitance
- 12.6nF
- Pd - Power Dissipation
- 273W
- Operating Temperature
- -55℃~+175℃
- Configuration
- Standalone
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 600A
- Reverse Transfer Capacitance (Crss)
- 93pF
- RDS(on)
- 0.27mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 182nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.73 g
Overview
Key features
- Optimized for low-voltage drive applications
- Optimized for battery-powered applications
- Optimized for synchronous rectification
- Ultra-low on-resistance RDS(on)
- 100% avalanche tested
- Superior thermal resistance
- N-channel, normal level
- Lead-free lead finish, RoHS compliant
- Halogen-free per IEC 61249-2-21
- 175°C rated temperature
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IQFH36N04NM6ATMA1#C42197920Infineon · TSON-12 | Infineon | TSON-12 | On request | ₹1,143.47 · 0 in stock | View |
