InfineonDatasheet (PDF)

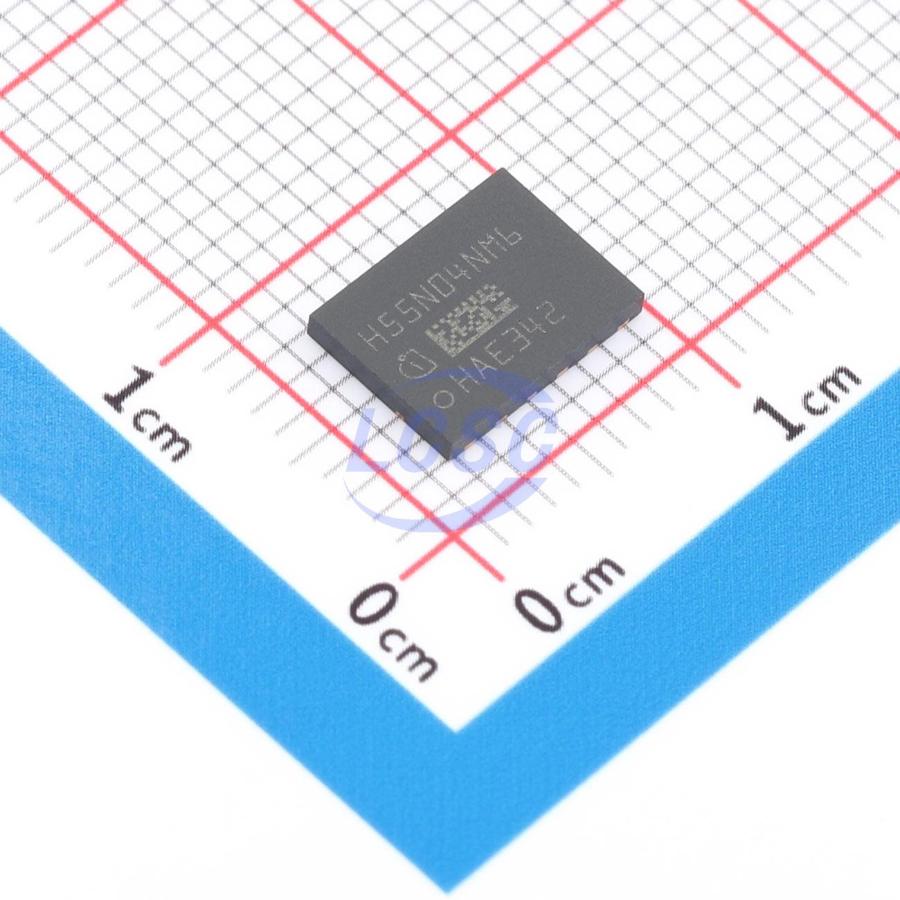

IQFH55N04NM6ATMA1
40V 451A 0.45mΩ@10V 1 N-channel N-Channel PG-TSON-12 Single FETs, MOSFETs RoHS
PG-TSON-12ROHS CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IQFH55N04NM6ATMA1
- Store part #
- C26313186
- Package / case
- PG-TSON-12
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C26313186
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹646.33 | ₹646.33 |
| 10+ | ₹635.58 | ₹6,355.80 |
| 30+ | ₹628.48 | ₹18,854.40 |
| 100+ | ₹621.17 | ₹62,117.00 |
1 × ₹646.33
₹646.33
excl. GST
₹762.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IQFH55N04NM6ATMA1
₹646.33 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 451A
- Output Capacitance(Coss)
- 2.65nF
- Ciss-Input Capacitance
- 8.2nF
- Reverse Transfer Capacitance (Crss)
- 63pF
- RDS(on)
- 0.45mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 118nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.7 g
Overview
Key features
- Optimized for low-voltage drive applications
- Optimized for battery-powered applications
- Optimized for synchronous applications
- Ultra-low on-resistance RDS(on)
- 100% avalanche tested
- Superior thermal resistance
- N-channel
- Lead-free terminal plating, RoHS compliant
- Halogen-free per IEC61249-2-21
- Rated temperature 175℃
