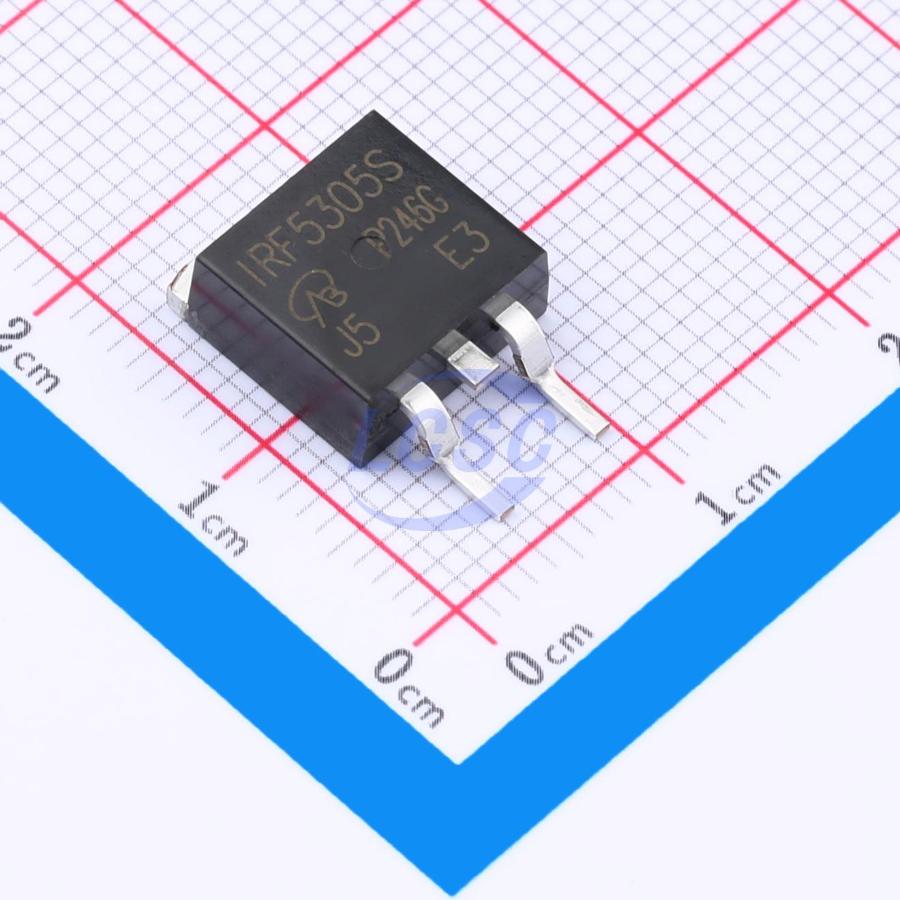

IRF5305SPBF-VB
P-Channel 60V 35A 61W Surface Mount D2PAK(TO-263)
D2PAK(TO-263)RoHSActive
MOSFET P-CH 60V 35A D2PAK(TO-263)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF5305SPBF-VB
- Store part #
- C5355716
- Package / case
- D2PAK(TO-263)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C5355716
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹163.27 | ₹163.27 |
| 10+ | ₹138.47 | ₹1,384.70 |
| 30+ | ₹126.06 | ₹3,781.80 |
| 100+ | ₹83.39 | ₹8,339.00 |
| 500+ | ₹75.98 | ₹37,990.00 |
| 800+ | ₹72.28 | ₹57,824.00 |
1 × ₹163.27
₹163.27
excl. GST
₹192.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IRF5305SPBF-VB
₹163.27 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 200pF
- Current - Continuous Drain(Id)
- 35A
- Ciss-Input Capacitance
- 1.65nF
- Pd - Power Dissipation
- 61W
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 48mΩ@10V;60mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 67nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.9 g
Overview
Applications
- Power Switch - Load Switch for High-Current Applications - DC/DC Converter
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF9Z24NSTRLPBF-VB#C18212477VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 14 | ₹128.56 · 14 in stock | View |
 | 2SJ660-VB#C29779144VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹123.52 · 10 in stock | View |
 | IRF9Z24NS-VB#C558156VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 49 | ₹153.26 · 49 in stock | View |
 | 2SJ257-VB#C41369944VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹123.52 · 20 in stock | View |
 | RF1S30P06SM-VB#C29779181VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 60 | ₹147.61 · 60 in stock | View |
