VISHAYDatasheet (PDF)

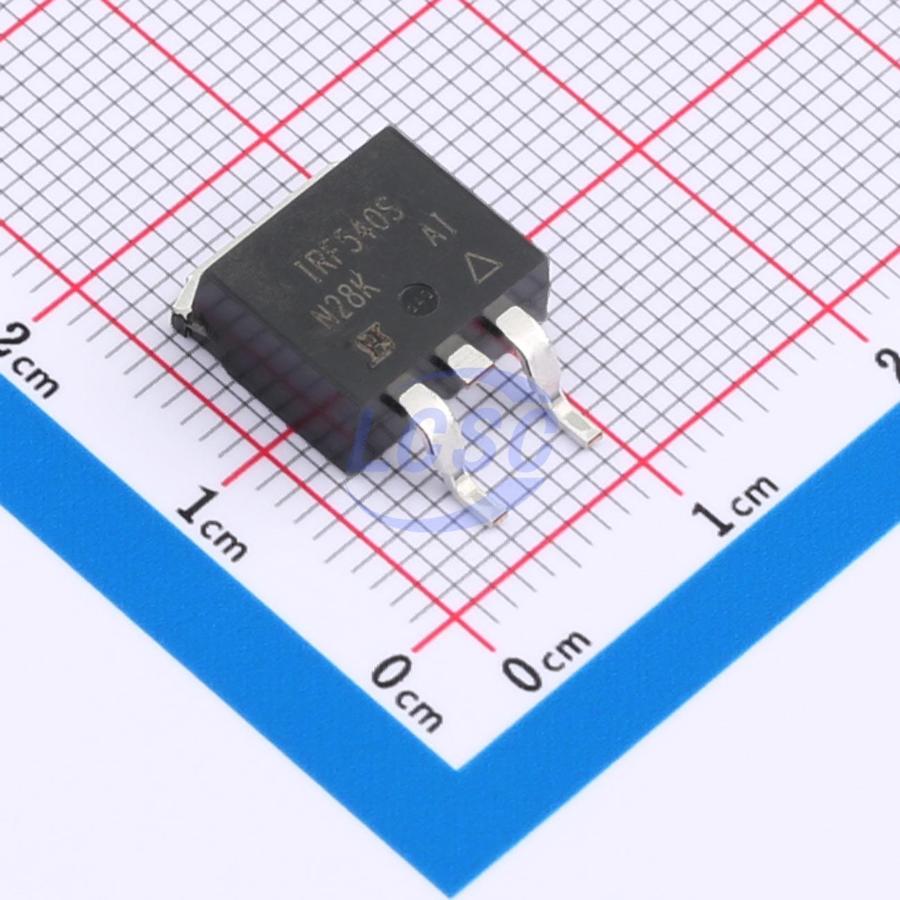

IRF540STRLPBF
N-Channel 100V 28A 150W Surface Mount D2PAK(TO-263)
D2PAK(TO-263)ROHS3 CompliantActive
MOSFET N-CH 100V 28A D2PAK(TO-263)
- Manufacturer
- VISHAY
- Manufacturer part #
- IRF540STRLPBF
- Store part #
- C3025611
- Package / case
- D2PAK(TO-263)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C3025611
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹720.04 | ₹720.04 |
| 10+ | ₹709.09 | ₹7,090.90 |
| 30+ | ₹701.77 | ₹21,053.10 |
| 100+ | ₹694.68 | ₹69,468.00 |
1 × ₹720.04
₹720.04
excl. GST
₹849.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IRF540STRLPBF
₹720.04 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 560pF
- Ciss-Input Capacitance
- 1.7nF
- Pd - Power Dissipation
- 150W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 28A
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 77mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 72nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.02 g
Overview
Third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The D2PAK (TO-263) is a surface-mount power package capable of accommodating die size up to HEX-4. It provides the highest power capability and the lowest possible on-resistance in any existing surface-mount package. The D2PAK (TO-263) is suitable for high current applications because of its low internal connection resistance and can dissipate up to 2.0 W in a typical surface-mount application.
Applications
- Interface connections
- Switching applications
Key features
- Surface-mount
- Available in tape and reel RoHS
- Dynamic dv/dt rating Available
- Repetitive avalanche rated HALOGEN FREE
- 175 °C operating temperature Available
- Fast switching
- Ease of paralleling
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STB40NF20#C2970117ST · D2PAK | ST | D2PAK | 7 | ₹750.79 · 7 in stock | View |
 | PSMN016-100BS,118#C547351Nexperia · D2PAK | Nexperia | D2PAK | 80 | ₹161.17 · 80 in stock | View |
| PHB45NQ10T,118#C478233Nexperia · D2PAK | Nexperia | D2PAK | 91 | ₹280.40 · 91 in stock | View | |
 | CMB40N20P#C45385083Cmos · TO-263 | Cmos | TO-263 | 144 | ₹85.60 · 144 in stock | View |
| NTB6413ANT4G#C464090onsemi · D2PAK | onsemi | D2PAK | 10 | ₹505.76 · 10 in stock | View | |
