InfineonDatasheet (PDF)

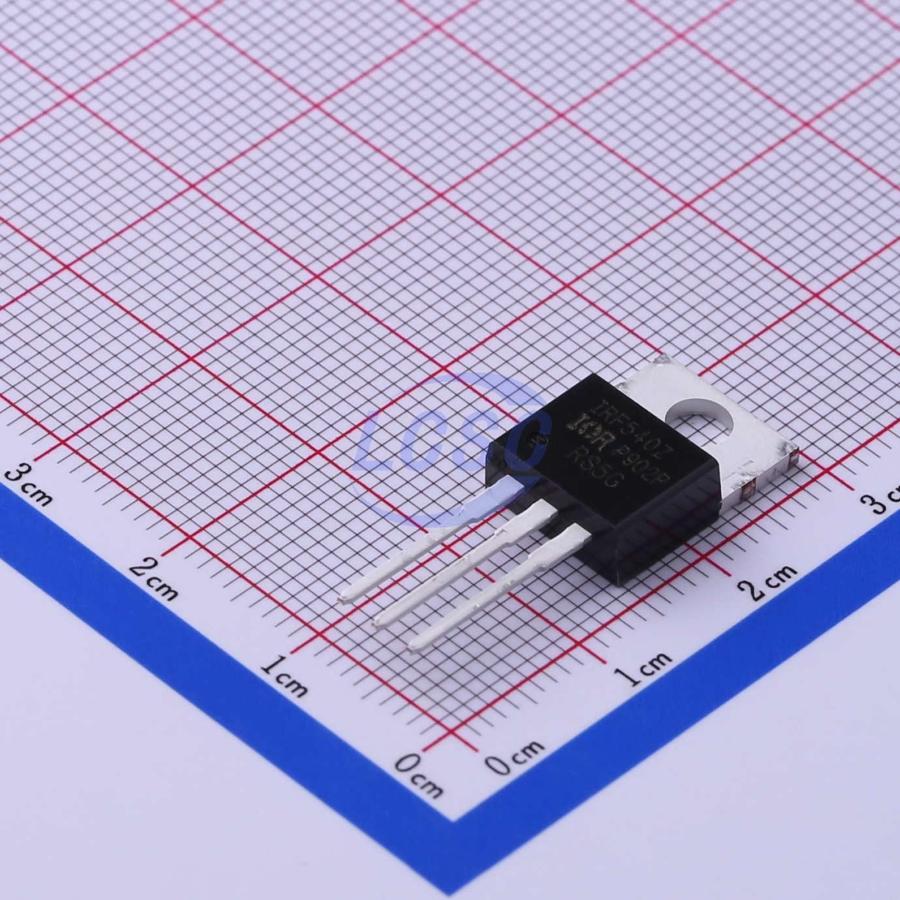

IRF540ZPBF
N-Channel 100V 36A 92W Through Hole TO-220AB-3
TO-220AB-3ROHS3 CompliantActive
MOSFET N-CH 100V 36A TO-220AB-3
- Manufacturer
- Infineon
- Manufacturer part #
- IRF540ZPBF
- Store part #
- C459970
- Package / case
- TO-220AB-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
165 in stock
#C459970
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹159.37 | ₹159.37 |
| 10+ | ₹128.36 | ₹1,283.60 |
| 50+ | ₹105.17 | ₹5,258.50 |
| 100+ | ₹89.77 | ₹8,977.00 |
| 500+ | ₹80.66 | ₹40,330.00 |
| 1,000+ | ₹75.89 | ₹75,890.00 |
1 × ₹159.37
₹159.37
excl. GST
₹188.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRF540ZPBF
₹159.37 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 180pF
- Ciss-Input Capacitance
- 1.77nF
- Pd - Power Dissipation
- 92W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 36A
- Reverse Transfer Capacitance (Crss)
- 100pF
- RDS(on)
- 26.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 63nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.715 g
Overview
Specifically designed for Automotive applications, this HEXFET Power MOSFET utilizes the latest processing techniques to achieve extremely low onresistance per silicon area. Additional features of this design are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in Automotive applications and a wide variety of other applications.
Applications
- Automotive applications
Key features
- Advanced Process Technology
- Ultra Low On-Resistance
- 175°C Operating Temperature
- Fast Switching
- Repetitive Avalanche Allowed up to Tjmax
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP55T10GP-HF-VB#C22389260VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹123.52 · 10 in stock | View |
 | P50NE10-VB#C22389590VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 4 | ₹123.52 · 4 in stock | View |
 | SPP47N10L-VB#C22389628VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹123.52 · 10 in stock | View |
 | 50N10-VB TO220#C22389677VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 3 | ₹123.52 · 3 in stock | View |
 | HUF76639P3-VB#C22389771VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹123.52 · 10 in stock | View |
