VBsemi ElecDatasheet (PDF)

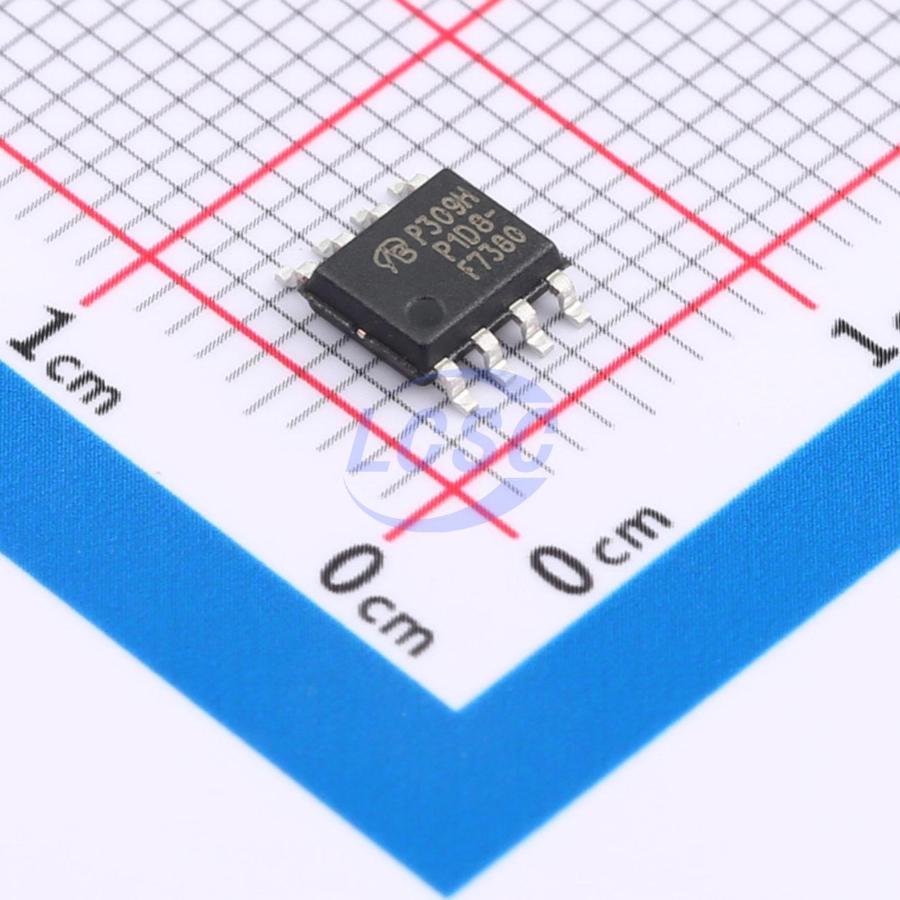

IRF7380TRPBF-VB
N-Channel Array 80V 3.5A 2W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH ARR 80V 3.5A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF7380TRPBF-VB
- Store part #
- C7494500
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36 in stock
#C7494500
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹157.62 | ₹157.62 |
| 10+ | ₹132.58 | ₹1,325.80 |
| 30+ | ₹120.17 | ₹3,605.10 |
| 100+ | ₹107.76 | ₹10,776.00 |
| 500+ | ₹75.98 | ₹37,990.00 |
| 1,000+ | ₹72.28 | ₹72,280.00 |
1 × ₹157.62
₹157.62
excl. GST
₹185.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IRF7380TRPBF-VB
₹157.62 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 80V
- Output Capacitance(Coss)
- 40pF
- Current - Continuous Drain(Id)
- 3.5A
- Ciss-Input Capacitance
- 640pF
- Pd - Power Dissipation
- 2W
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 62mΩ@10V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 11nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.136 g
Overview
Applications
- DC/DC Conversion - Notebook System Power Supply
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AO4830-VB#C29779507VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹123.52 · 20 in stock | View |
 | HAT2215RJ-VB#C19626826VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 29 | ₹128.56 · 29 in stock | View |
 | AP9980GM-VB#C22389069VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 19 | ₹123.52 · 19 in stock | View |
 | TPC8214-H-VB#C20755115VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 27 | ₹75.62 · 27 in stock | View |
| PHKD3NQ10T,518-VB#C52190890VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 5 | ₹77.94 · 5 in stock | View | |
