VBsemi ElecDatasheet (PDF)

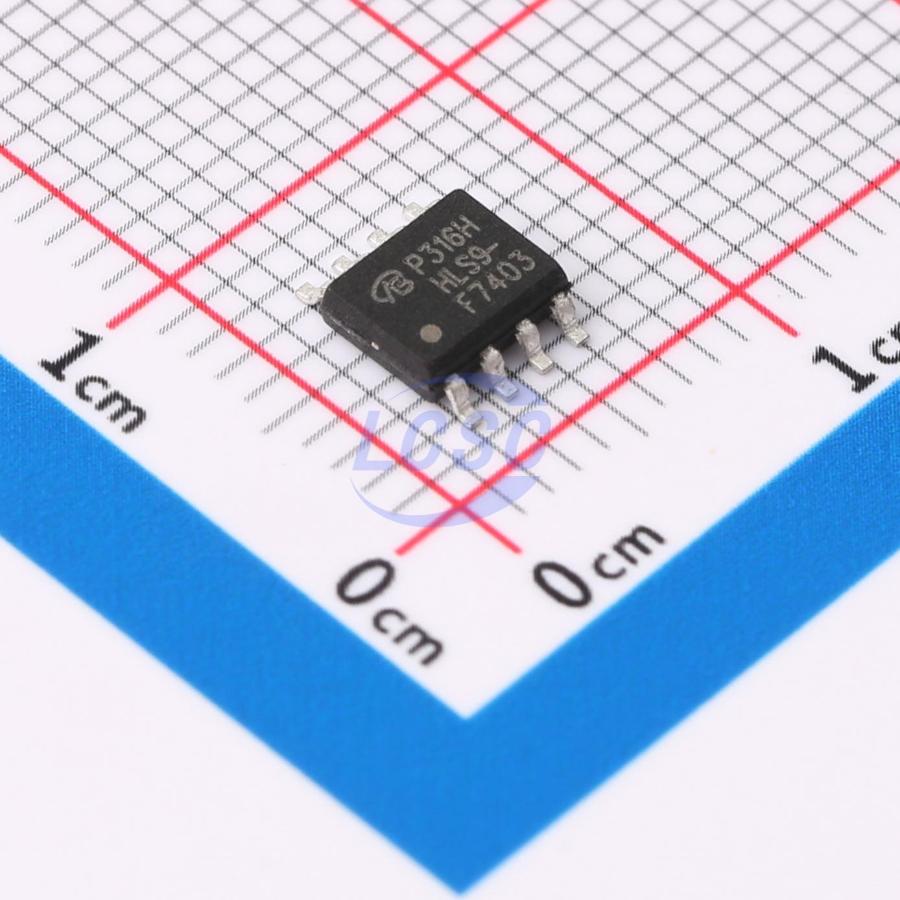

IRF7403TRPBF-VB
N-Channel 30V 13A 4.1W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 30V 13A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF7403TRPBF-VB
- Store part #
- C7429013
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C7429013
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.42 | ₹237.10 |
| 50+ | ₹38.00 | ₹1,900.00 |
| 150+ | ₹33.96 | ₹5,094.00 |
| 500+ | ₹28.92 | ₹14,460.00 |
| 2,500+ | ₹24.24 | ₹60,600.00 |
| 4,000+ | ₹22.89 | ₹91,560.00 |
5 × ₹47.42
₹237.10
excl. GST
₹279.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IRF7403TRPBF-VB
₹237.10 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 165pF
- Current - Continuous Drain(Id)
- 13A
- Ciss-Input Capacitance
- 800pF
- Pd - Power Dissipation
- 4.1W
- Reverse Transfer Capacitance (Crss)
- 73pF
- RDS(on)
- 8mΩ@10V;11mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6.8nC@5V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.134 g
Overview
Applications
- Notebook CPU Core - High-Side Switch
- N-Channel MOSFET
Key features
- Halogen-free
- TrenchFET Power MOSFET Optimized for High-Side Synchronous Rectifier Operation 100 % Rg Tested 100 % UIS Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI4134DY-T1-E3-VB#C20754936VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹45.67 · 50 in stock | View |
 | MI4426-VB#C22389157VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 15 | ₹45.67 · 15 in stock | View |
 | APM9426KC-TRL-VB#C41370127VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹46.52 · 10 in stock | View |
 | STS12NF30L-VB#C7568927VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹46.21 · 20 in stock | View |
 | STS6NF20V-VB#C7569068VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹45.67 · 20 in stock | View |
