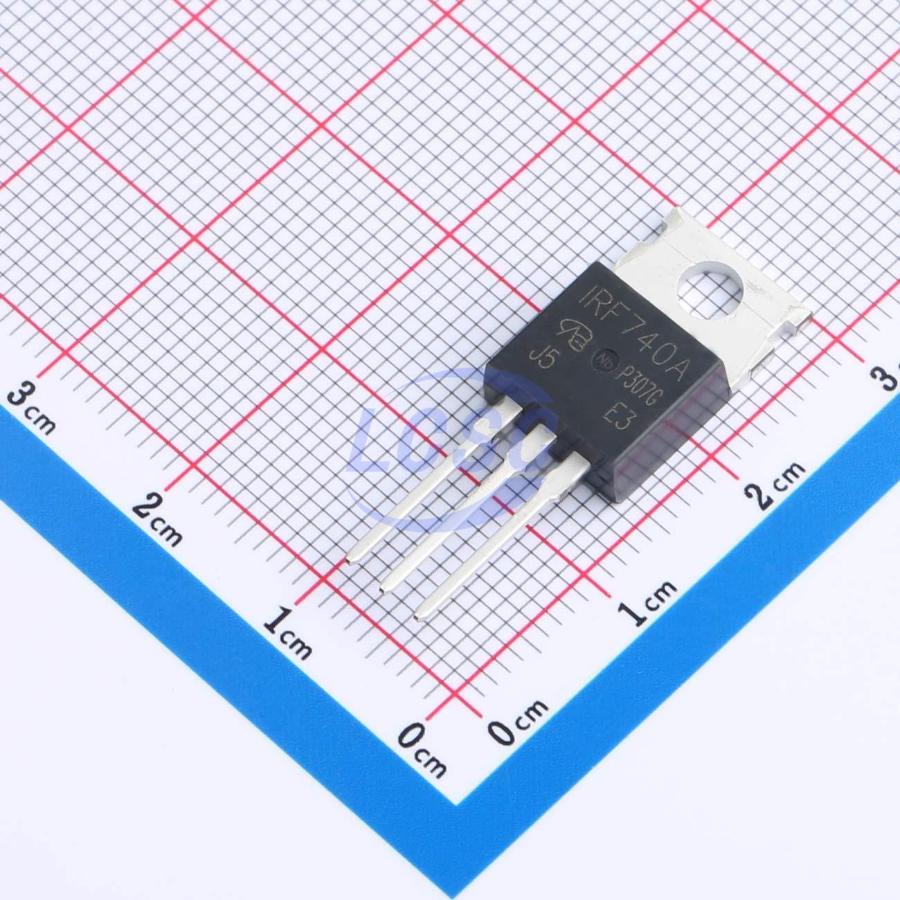

IRF740APBF-VB
N-Channel 650V 6A 123W Through Hole TO-220AB
TO-220ABROHS CompliantActive
MOSFET N-CH 650V 6A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF740APBF-VB
- Store part #
- C7524932
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21 in stock
#C7524932
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹225.06 | ₹225.06 |
| 10+ | ₹186.46 | ₹1,864.60 |
| 50+ | ₹163.48 | ₹8,174.00 |
| 100+ | ₹139.42 | ₹13,942.00 |
| 500+ | ₹128.79 | ₹64,395.00 |
| 1,000+ | ₹124.02 | ₹1,24,020.00 |
1 × ₹225.06
₹225.06
excl. GST
₹265.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRF740APBF-VB
₹225.06 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 25pF
- Current - Continuous Drain(Id)
- 6A
- Ciss-Input Capacitance
- 360pF
- Pd - Power Dissipation
- 123W
- Reverse Transfer Capacitance (Crss)
- 12pF
- RDS(on)
- 500mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.698 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) Rₒₙ×Q₉
- Low input capacitance (Cᵢₛₛ)
- Reduced switching and conduction losses
- Ultra low gate charge (Ω₉)
- Avalanche energy rated (UIS)
