InfineonDatasheet (PDF)

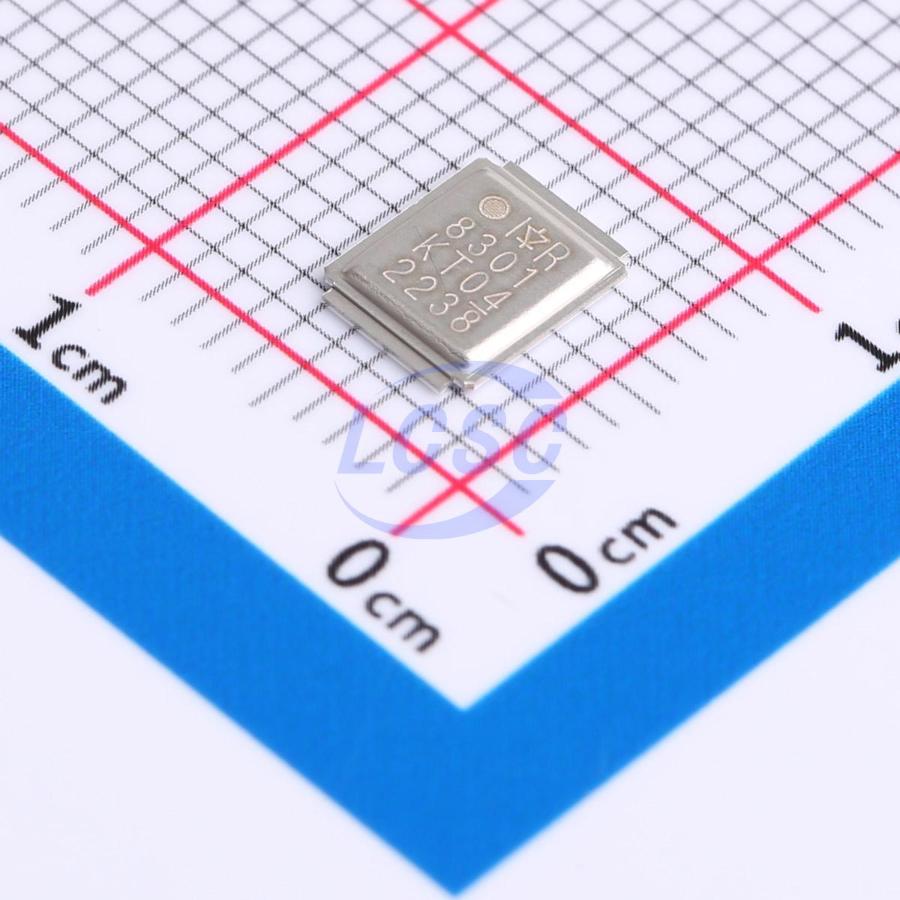

IRF8301MTRPBF
N-Channel 30V 34A 2.8W DirectFET
DirectFETROHS CompliantActive
MOSFET N-CH 30V 34A DirectFET
- Manufacturer
- Infineon
- Manufacturer part #
- IRF8301MTRPBF
- Store part #
- C537836
- Package / case
- DirectFET
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
69 in stock
#C537836
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹390.62 | ₹390.62 |
| 10+ | ₹333.86 | ₹3,338.60 |
| 30+ | ₹298.26 | ₹8,947.80 |
| 100+ | ₹262.02 | ₹26,202.00 |
| 500+ | ₹245.47 | ₹1,22,735.00 |
| 1,000+ | ₹238.35 | ₹2,38,350.00 |
1 × ₹390.62
₹390.62
excl. GST
₹460.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,800 per reel
IRF8301MTRPBF
₹390.62 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.27nF
- Ciss-Input Capacitance
- 6.14nF
- Pd - Power Dissipation
- 2.8W
- Operating Temperature
- -40℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 34A
- Reverse Transfer Capacitance (Crss)
- 590pF
- RDS(on)
- 1.9mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 77nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.35V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.6 g
Overview
The IRF8301MPbF combines the latest HEXFET Power MOSFET Silicon technology with the advanced DirectFETTM packaging to achieve very low on-state resistance in a package that has the footprint of an SO-8 or a PQFN 5x6mm and only 0.7mm profile. The DirectFET package is compatible with existing layout geometries used in power applications, PCB assembly equipment and vapor phase, infra-red or convection soldering techniques, when application note AN - 1035 is followed regarding the manufacturing methods and processes. The DirectFET package allows dual sided cooling to maximize thermal transfer in power systems, improving previous best thermal resistance by 80%. The IRF8301MPbF balances both low resistance and low charge along with ultra low package inductance to reduce both conduction and switching losses. The reduced total losses and very high current carrying capability make this product ideal for power tools.
Applications
- Power Tools
Key features
- Ultra-low Rps(on)
- Low Profile (<0.7mm)
- Dual Sided Cooling Compatible
- Ultra-low Package Inductance
- Optimized for high speed switching or high current switch (Power Tool)
- Low Conduction and Switching Losses
- Compatible with existing Surface Mount Techniques
