VBsemi ElecDatasheet (PDF)

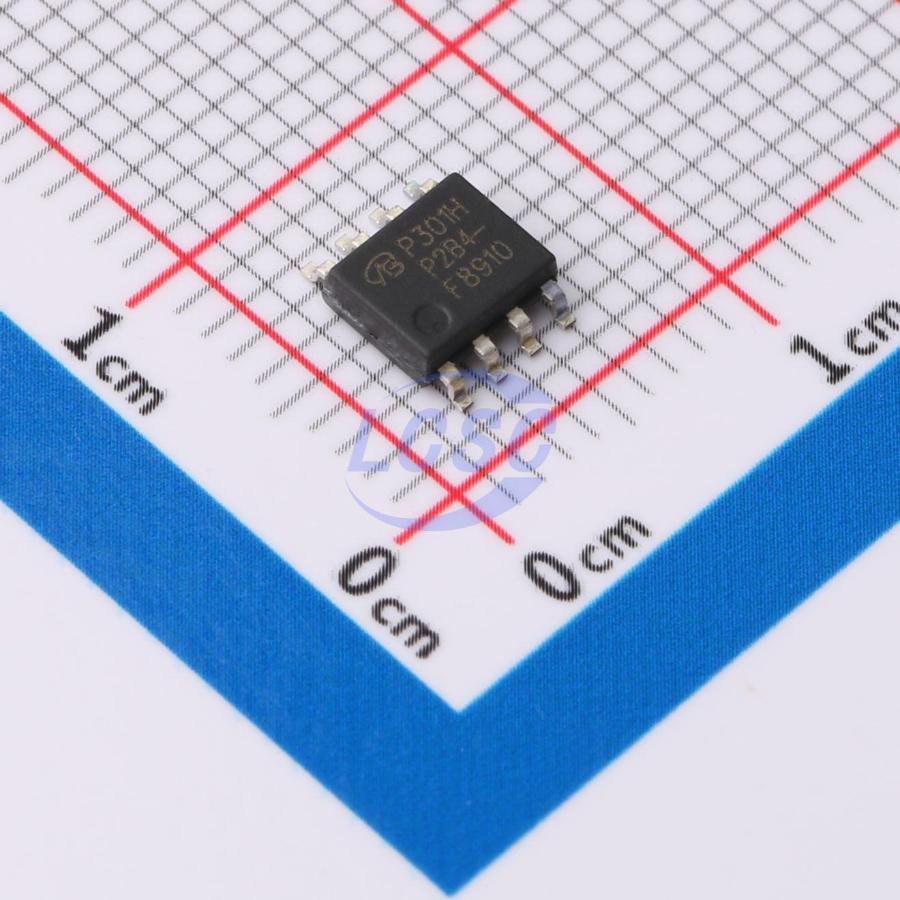

IRF8910TRPBF-VB
N-Channel Array 20V 10A 1.78W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH ARR 20V 10A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF8910TRPBF-VB
- Store part #
- C7463526
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
39 in stock
#C7463526
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.24 | ₹59.24 |
| 10+ | ₹47.48 | ₹474.80 |
| 30+ | ₹42.44 | ₹1,273.20 |
| 100+ | ₹36.13 | ₹3,613.00 |
| 500+ | ₹30.26 | ₹15,130.00 |
| 1,000+ | ₹28.58 | ₹28,580.00 |
1 × ₹59.24
₹59.24
excl. GST
₹69.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IRF8910TRPBF-VB
₹59.24 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 117pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 586pF
- Pd - Power Dissipation
- 1.78W
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 9mΩ@4.5V;12mΩ@2.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 3.7nC@10V
- Gate Threshold Voltage (Vgs(th))
- 500mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.126 g
Overview
Applications
- Set Top Box
- Low Current DC/DC
Key features
- Halogen-free According to IEC 61249-2-21 Definition
- TrenchFET Power MOSFET
- 100 % UIS Tested
- 100 % Rg Tested
- Compliant to RoHS Directive 2002/95/EC
- RoHS COMPLIANT
- HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UT6898G-S08-R-VB#C558304VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 2 | ₹57.14 · 2 in stock | View |
 | AM4924N-T1-PF-VB#C29779249VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 15 | ₹54.83 · 15 in stock | View |
 | VBZA4936#C700596VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 1,395 | ₹32.69 · 1,395 in stock | View |
 | IRF7910TRPBF-VB#C19711332VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹57.14 · 20 in stock | View |
 | FDS6898AZ-NL-VB#C20755353VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 45 | ₹47.32 · 45 in stock | View |
